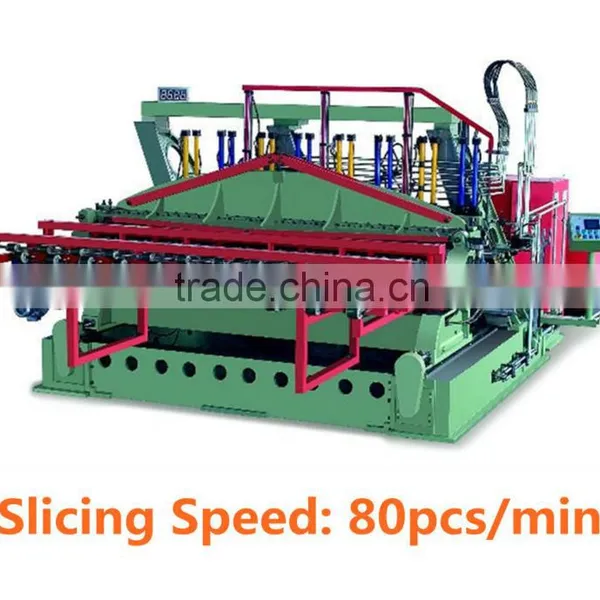

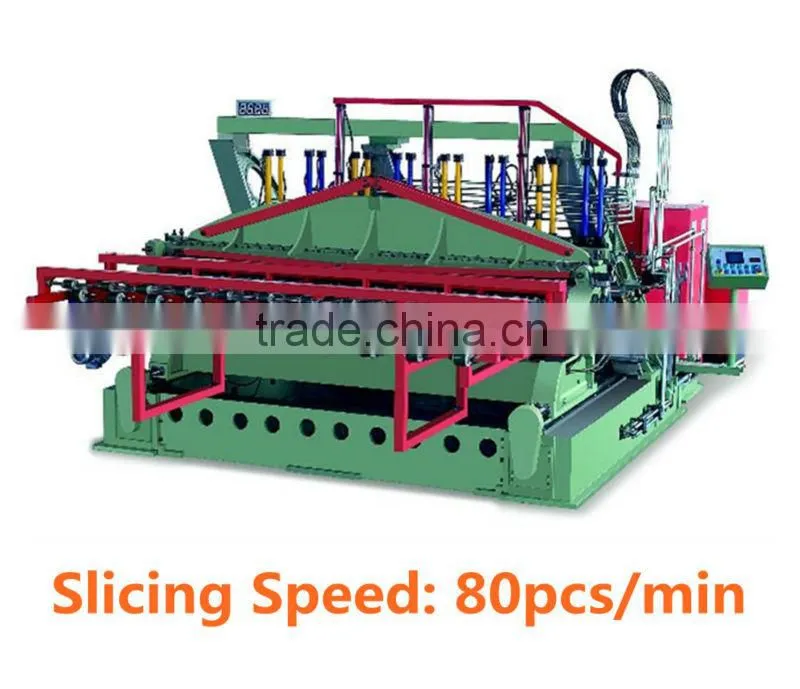

We provide high quality BB1342 Face veneer slicer machine
| Model | BB1342 |
| max allowed wood size | 3900x760x760mm |
| size of the planer tool | 4200x200x19mm |
| slicing thickness | 0.2-3mm |
| slicing speed | max.80pcs/min |
| wood clamping method | hydraulic control |
| power source | 75.95Kw |
| main motor | 55kw(DC) |
| motor of oil pump | 11kw |
| knife-holder quick back motor | 3.5Kw*2 |
| circulating heat water motor | 0.75kw |
| veneer transport motor | 2.2kw |
| size of body(LxWxH) | 7700x5800x4100mm |
| net weight | 42T |
1Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.
Video online: /v_show/id_XNTM4MDcxOTg4.html
hydraulic blade holding system
hydraulic clamping system/ pneumatic brake system
feeding system/Lubricating center
In working condition
Certification
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max veneer width sliced by machine?
760mm
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
