Home > Products > veneer dryer > Mesh Veneer Dryer

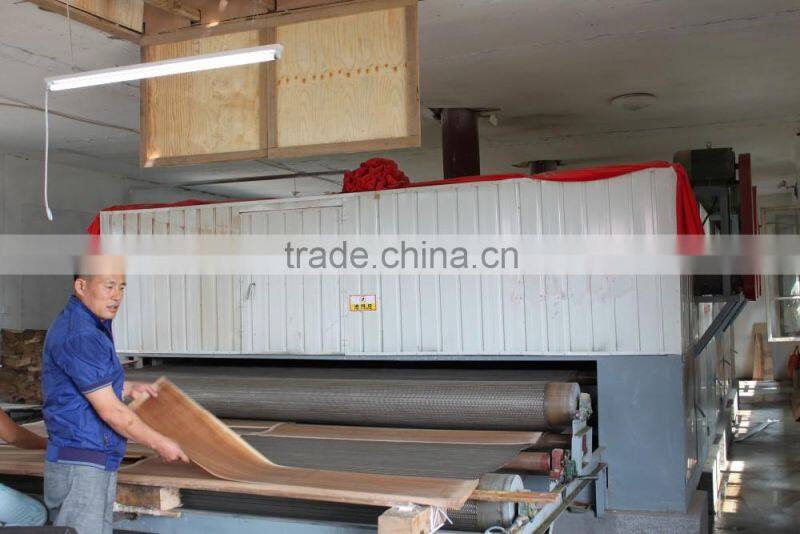

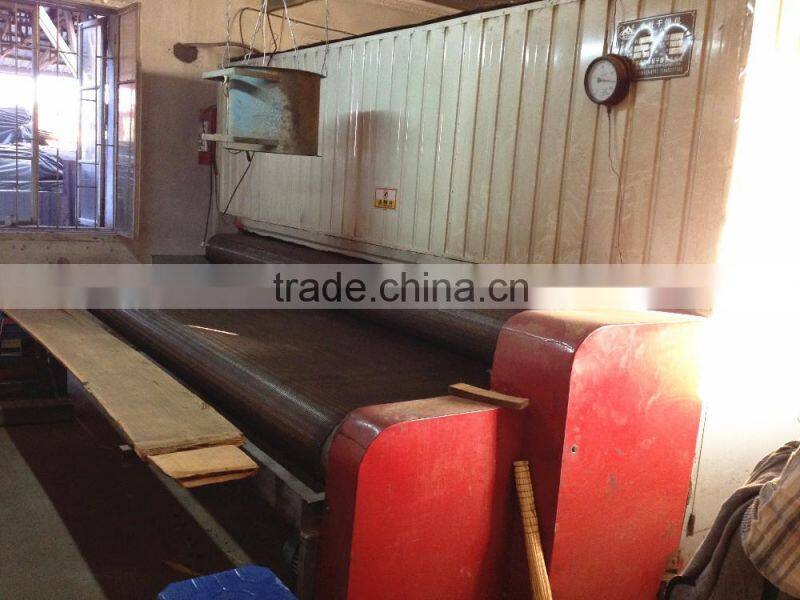

Mesh Veneer Dryer
US$ 1 - 100,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Other, veneer drying machine, mesh veneer dryer machine | |
| Place of Origin | Shandong, China | Brand Name | hzh | |
| Model Number | BBG1636 | Voltage | 380V | |
| Power(W) | changed | Dimension(L*W*H) | changed | |
| Weight | changed | Certification | ISO9001 | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1 veneer thickness:0.6-4mm
2 max veneer width: 3500mm
3 ISO9001
Product Description
We supply high quality Woodworking veneer mesh dryer BBG1636
| Model | BBG1636 |
| Heating mediam | Steam or thermal oil |
| Working temperature | 110-160°C |
| Veneer weight | 600kg/m3 |
| Veneer thickness | 0.6-4mm |
| Initial moisture | 75% |
| Final moisture | 10±2% |
| Working width | 3500mm |
| Mesh width | 3600mm |
| Layer | 1 |
| Heating length | 4*2000=8000mm |
| Cooling length | 2000mm |
| Mesh speed | 2-20m/min |
| Total power | 46kw |
| Drive motor | 2*4=8kw |
| Heating motor | 4*7.5=30kw |
| Cooling motor | 2*4=8kw |
| Dry capacity(changed with diiferent thickness and temperature | 1.5-2.5m3/hour |

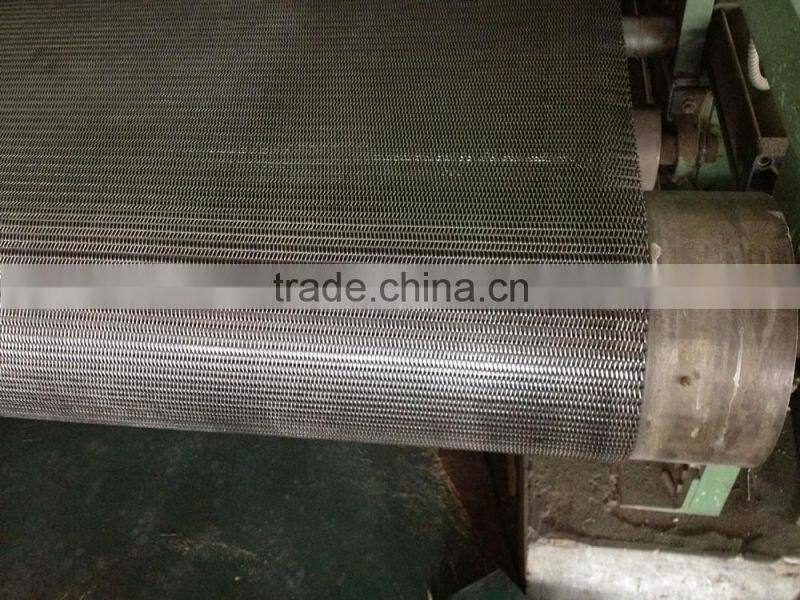

| The machine is used for drying sliced or peeled veneer in the veneer production line with slicer or rotary peeler. The equipment adopts advantages of all kinds of dryers. Elliptical heating exchanger, axial flow ventilator and unique hot air eject box are used to guarantee the best quality of dry veneer. Veneer is conveyed by stainless mesh belt, moving in the machine driven by the big rollers. The veneer is fed transversely. It is convenient for collection and store. The machine consists of inlet, drying area, cooling area, outlet and control cabinet. Standard model has four heating rooms and one cooling room. Heating rooms can be added or lessen according to the production capacity, process and space, in order to improve productivity with lowest investment |
Contact Us
- Qingdao Haozhonghao Woodworking Machinery Co., Ltd.
- Contact nameVivian Qu Chat Now
- Phone0086-532-84822277
- Address111, No. 971, Chongqing Middle Road, Licang Dist., Qingdao, Shandong, China
