BB11300A Woodworking Veneer Slicing Horizontal Face veneer slicer machine
- 1 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
BB1131B Woodworking Veneer Slicing Horizontal Face Veneer Slicer machine
-
BB1135B Woodworking Veneer Slicing Horizontal Face Veneer Slicer Machine
-
Woodworking Face veneer vertical slicer machine
-
Woodworking veneer slicing face veneer slicer machine
-
BB1326T Woodworking veneer slicing face veneer slicer machine
-
BB1322T Woodworking veneer slicing face veneer slicer machine
Product Details
Condition | New | Type | Other, Veneer Slicer Machine, veneer slicer | |
Place of Origin | Shandong, China | Brand Name | HZH | |
Model Number | BB1130A | Voltage | 380v | |
Power(W) | 22Kw | Dimension(L*W*H) | 7584x3955x2640mm | |
Weight | 18000Kg | Certification | ISO9001 | |
Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1 Cutting the thin veneer thickness 0.07mm to 1mm
2 Max slicing speed 22pics/min
3 Hydraulic clamping system
4 ISO 9001
We supply high quality wood Horizontal veneer slicer machine BB1130A
Model | BB1130(A) |
max. slong cap. for the flitch | 3000x520x725mm |
size of the knife | 3000x200x20mm |
slicing thickness | 0.07~1.0mm |
slicing speed | 18~22pcs/min |
flitch clamping method | AUTO or MANUL |
main motor | 22Kw |
rise and down motor | 4Kw |
clamping motor | 0.18kwx8 |
thickness motor | 0.1Kw |
installing size | 7584x3955x2640mm |
weight | 18000Kg |

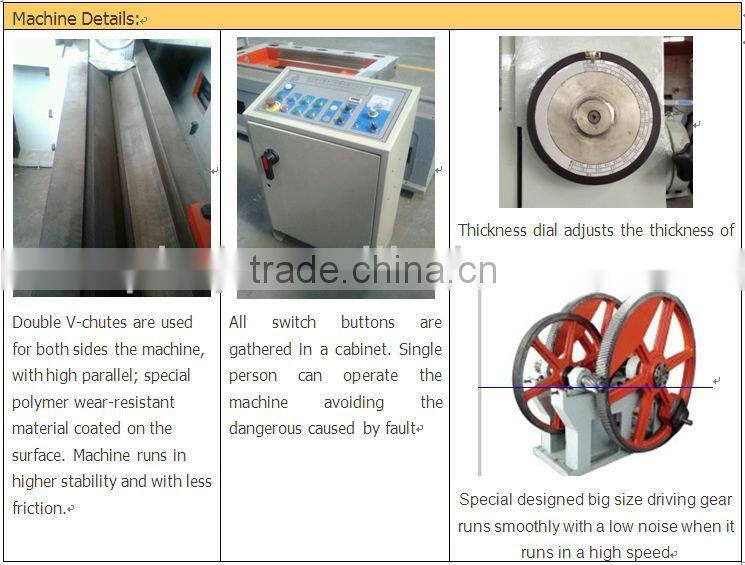

Double V -chutes:

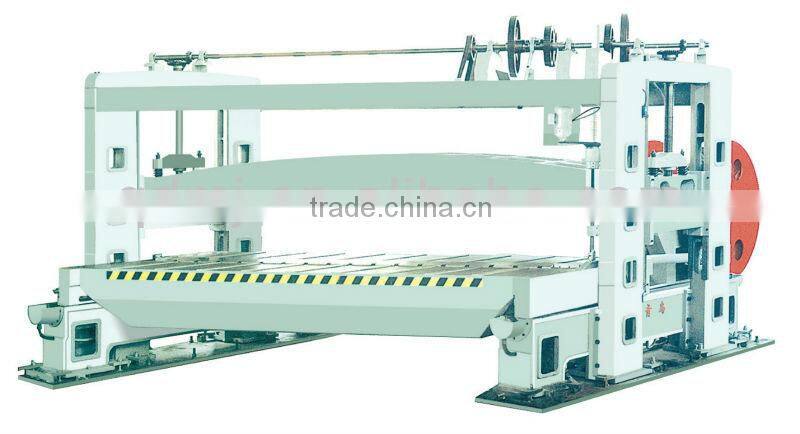

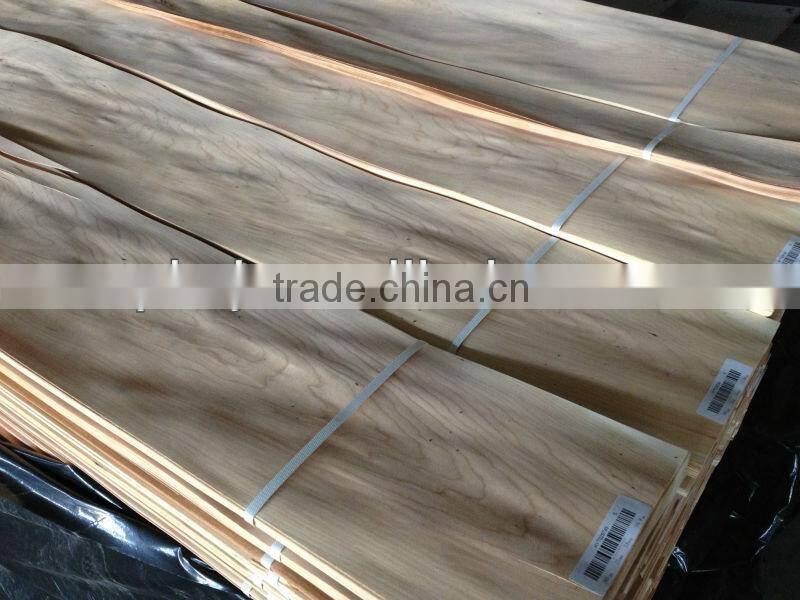

Product:

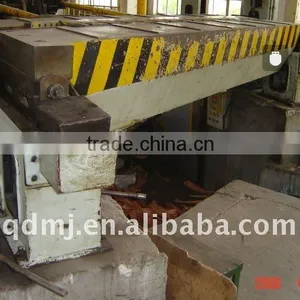

Working Operation:

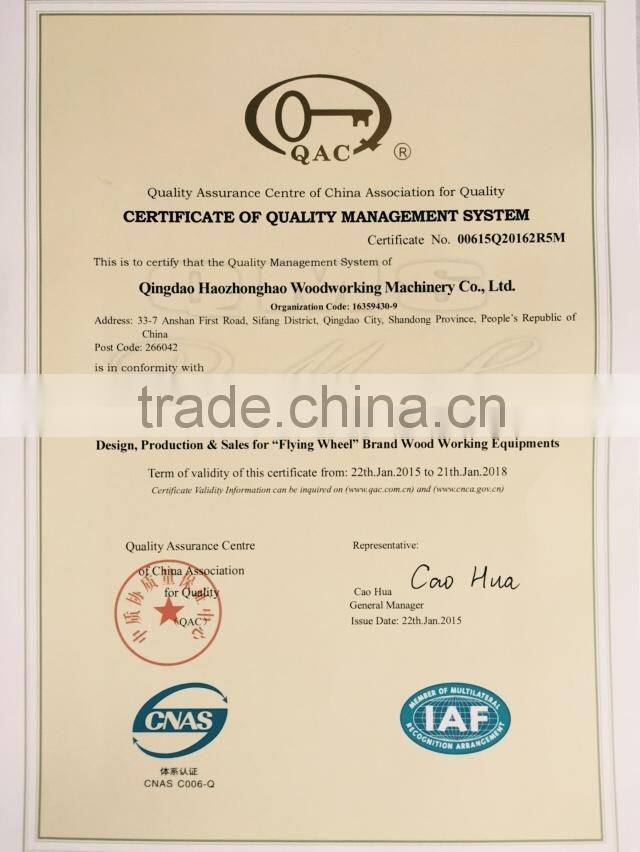

Certification:
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is ; you could get more information about our company and our products.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L. .
What is the Max veneer width sliced by machine?
Usually 600, width can reach 1300mm by BB1135B model
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
