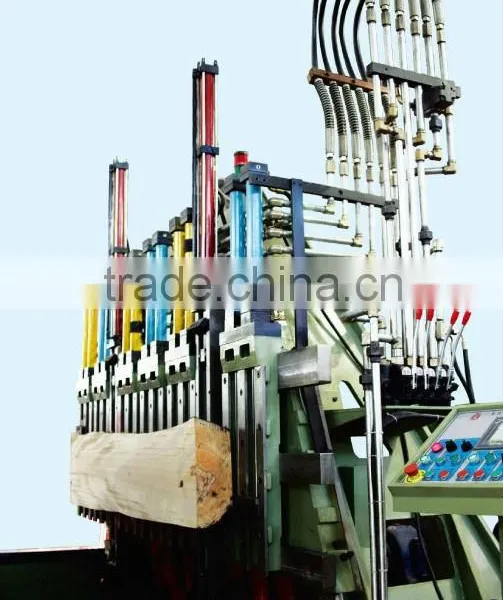

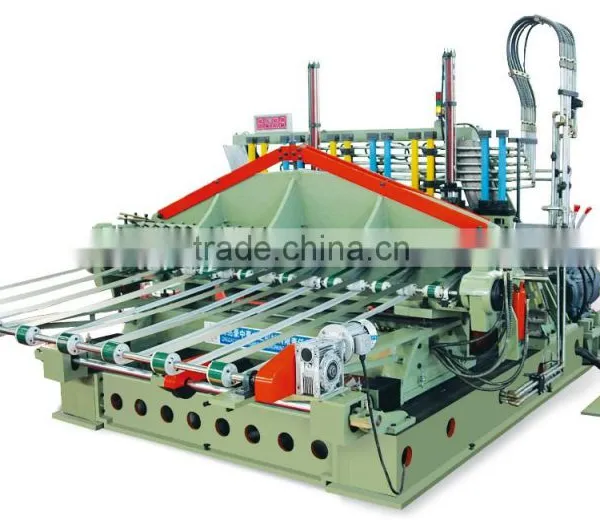

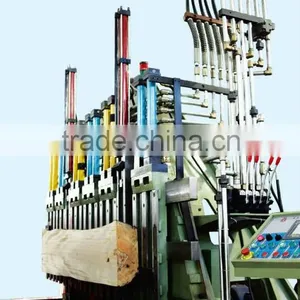

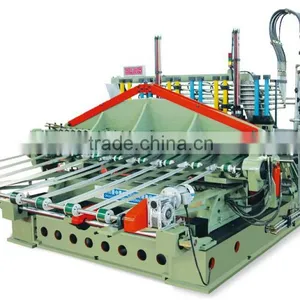

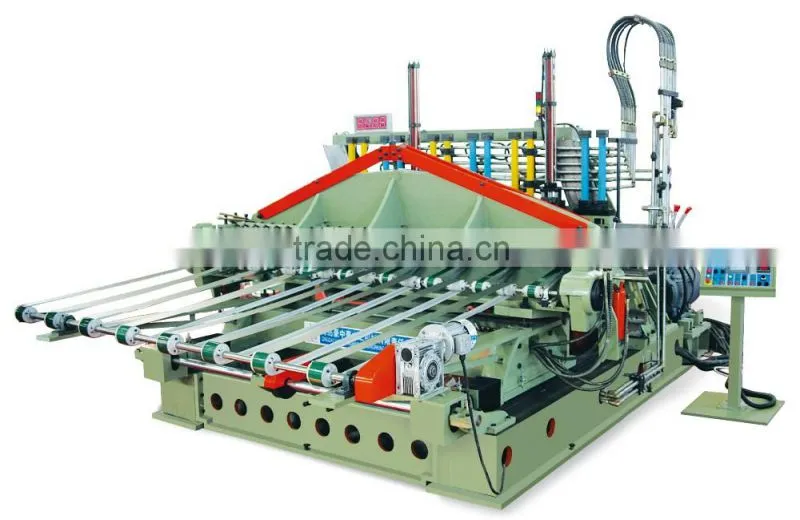

Woodworking Vertical Veneer Slicer Machine For Face Veneer
- 1 Set / Sets per Month
- Qingdao
- T/T
- 3HP 12'' combination jointer planer machine with mobile base
- Heavy duty cast iron table 8\" x 83\" Helical Cutterhead Jointer with Digital Height Readout mobile base jointer
- 16/20 inches Thickness planer heavy duty cast iron woodworking surface planer industrial woodworking machine
- W0101 Woodworking Bench 12\" Planer Flat Knife Spiral Knife
- LIVTER 12\" Wood Jointer Woodworking Machine Woodworking Surface
- LIVTER W0301 12\" 300Mm Jointer Thicknesser Combination
Product Details
Condition: | New | Type: | Other, vertical slicer machine | Place of Origin: | Shandong, China |
Brand Name: | hzh | Model Number: | BB1332T | Voltage: | 380V |
Power(W): | 47.8KW | Dimension(L*W*H): | 6400x4000x4000mm | Weight: | 35T |
Certification: | ISO9001 | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
The machine is used for cutting perfect veneers with high efficiency.
Max cutting speed is up to 80 pcs/min.
Surface is smooth.
MODEL | BB1332T |
max allowed wood size | 2500x1300x300mm |
size of the planer tool | 3200x200x19mm |
slicing thickness | 0.2-3mm |
slicing speed | max.40pcs/min |
wood clamping method | Vacuum adsorption control |
power source | 47.8kw |
main motor | 22kw |
motor of oil pump | 2.2kw |
knife-holder quick back motor | 7.5Kw |
circulating heat water motor | 7.5kw*2 |
veneer transport motor | 1.1kw |
size of body | 6400x4000x4000mm |
net weight | 35T |
Video online: /v_show/id_XNzg3MjQ4MjA4.html

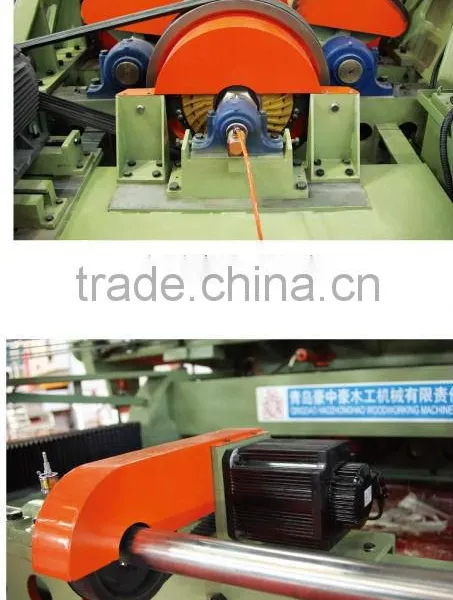

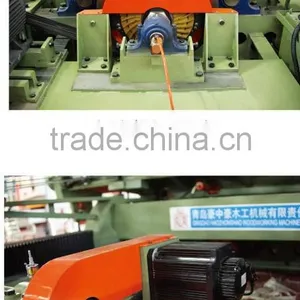

1Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.

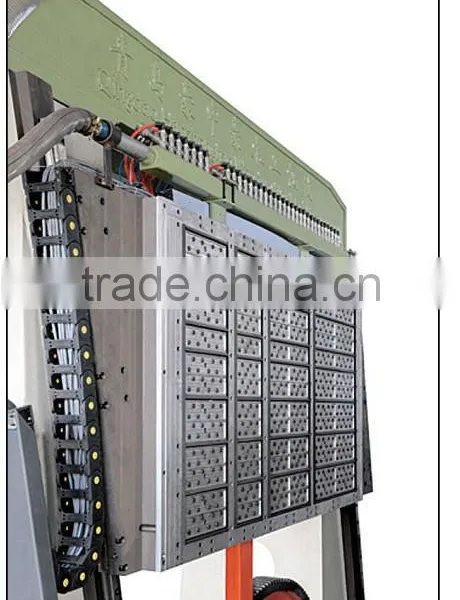

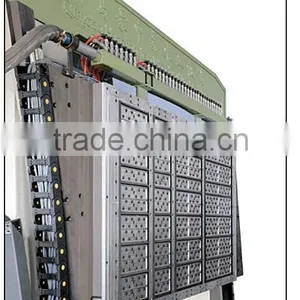

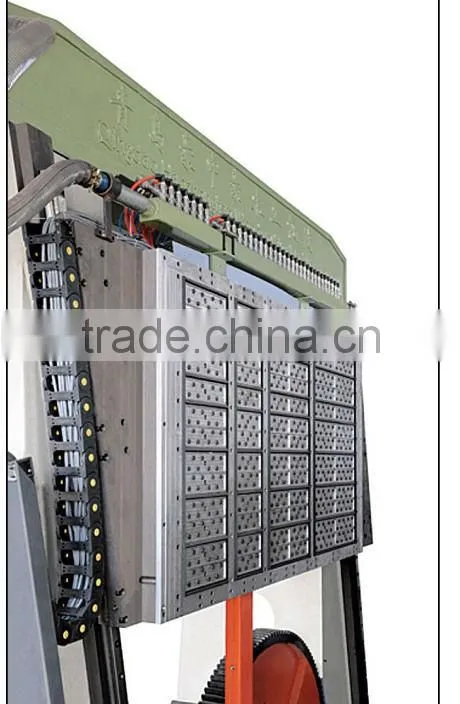

Vacuum clamping system
Self lubricating center

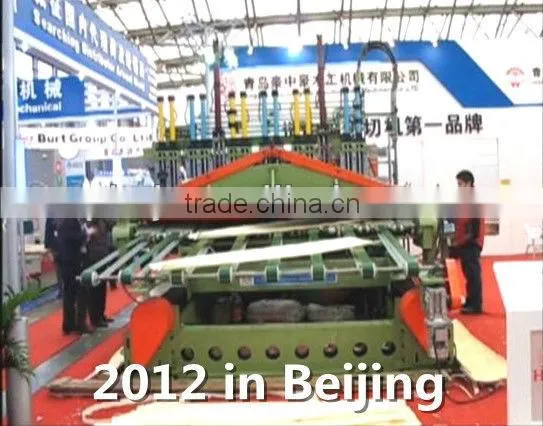

E Exhibition:
Working operation:
Certification
:
Package: Bare packing and fit in container directly.
Delivery: About 50 days after receive the down payment.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max veneer width sliced by machine?
Usually 600, width can reach 1300mm by BB1135B model
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
