Specifications

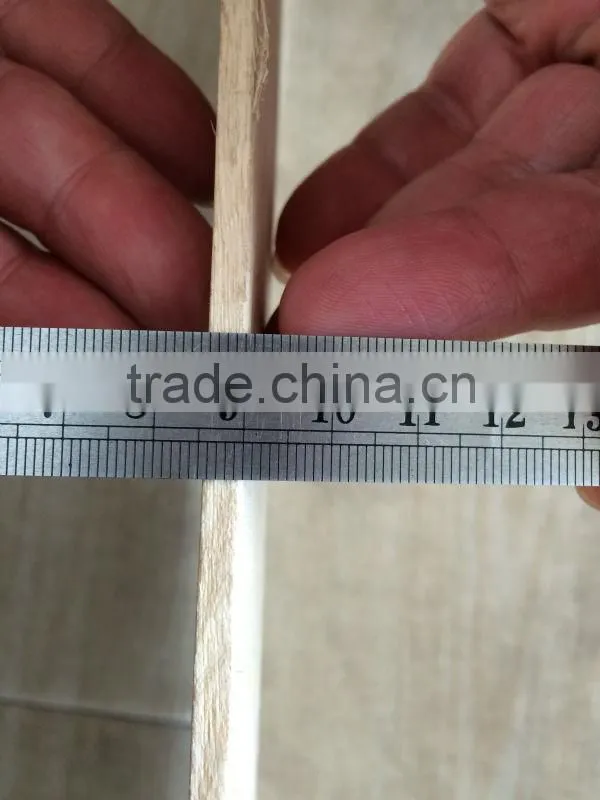

1 Slicing thickness:0.2-5mm
2 Max cutting speed is up to 40 pcs/min.
3 Surface is smooth

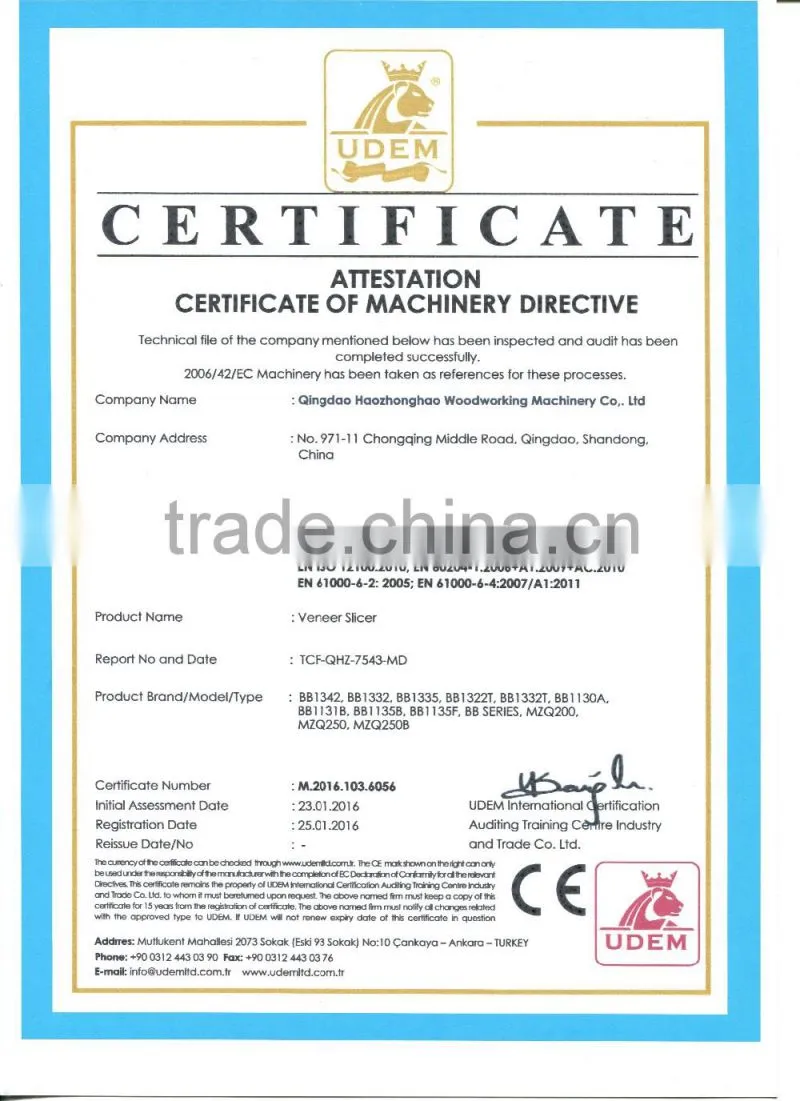

4 certificated by ISO9001 /CE

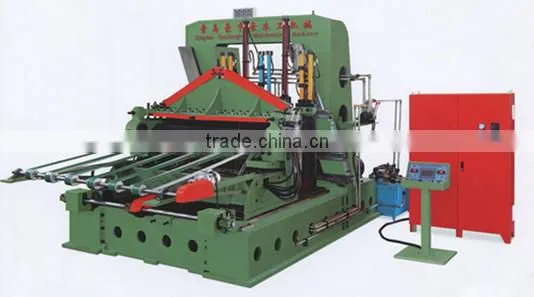

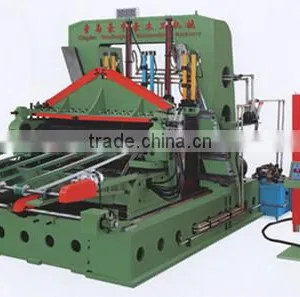

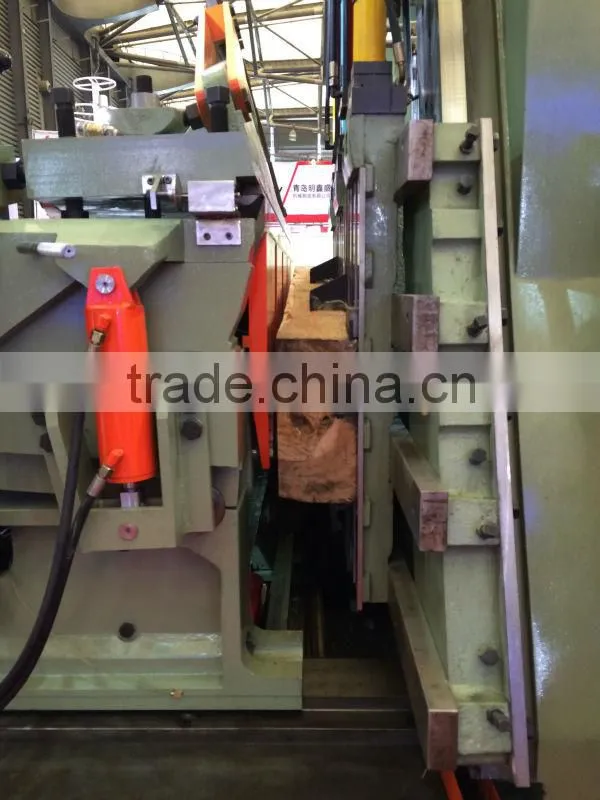

We supply High quality Woodworking Vertical Veneer Slicer machine Model BB1326T
Model |
BB1326T |
Max cutting size |
2400*600*500mm |
Blade size |
2600*200*19mm |
Veneer thickness |
0.2-5mm |
Slicing speed |
15-40 pcs/min |
Clamping methods |
Auto & manual |
Total power |
34.3Kw |
Main motor power |
22 Kw |
Mobile blade motor power |
5.5 kW Servo motor |
Hydraulic pump motor |
5.5Kw |
Heat circulation pump motor |
0.75Kw |
Feeding motor |
0.55 kW |
Overall size |
7000*4000*3300mm |
Weight |
18 T |
FOB price |
USD 80000 |
1Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.
/v_show/id_XOTE0MzY2NjQ0.html

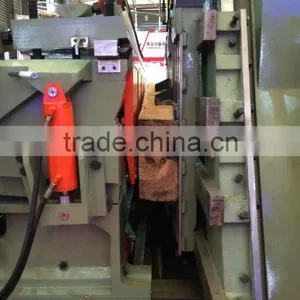

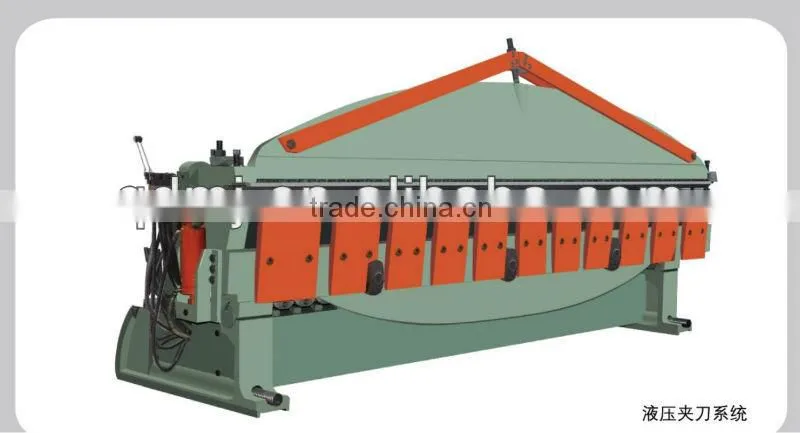

hydraulic blade holding system

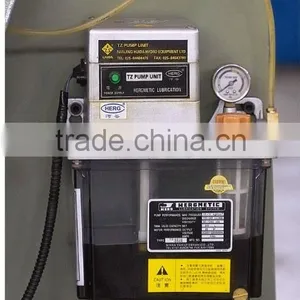

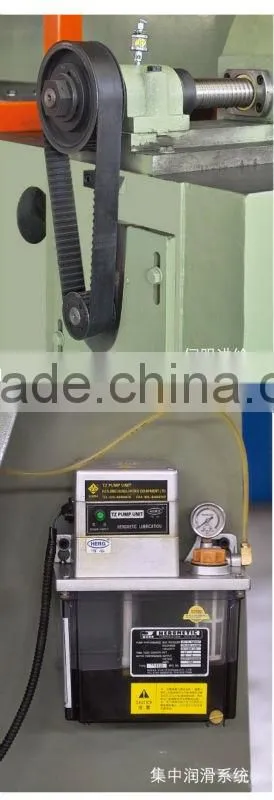

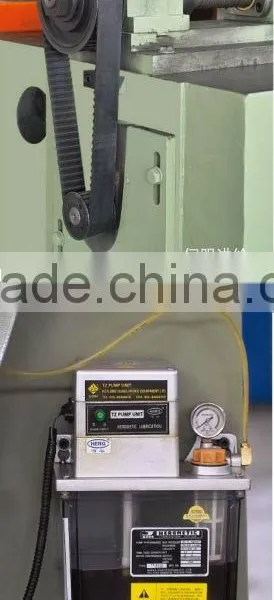

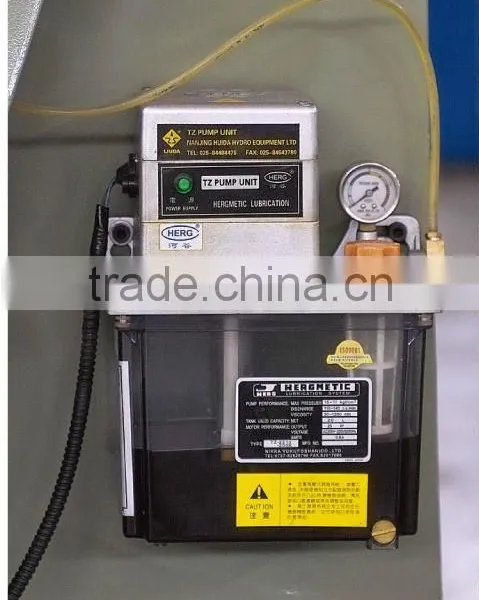

feeding system/Lubricating center

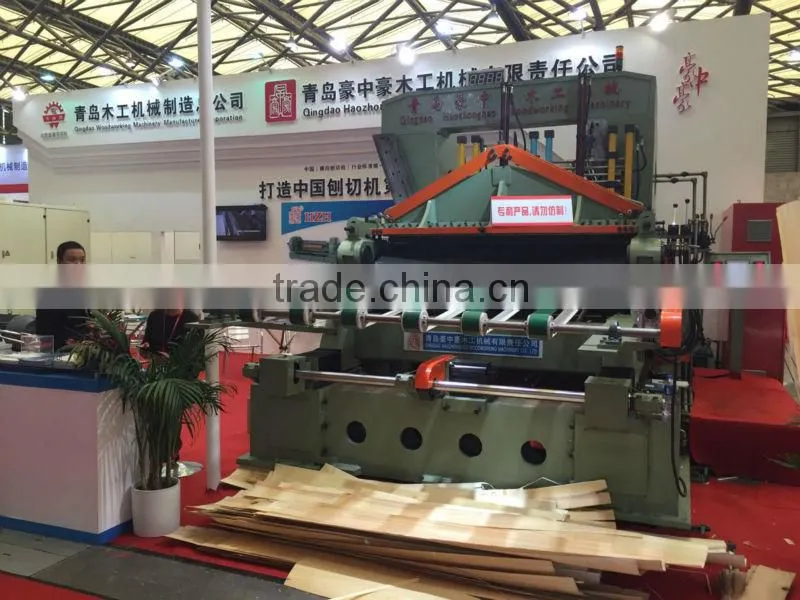

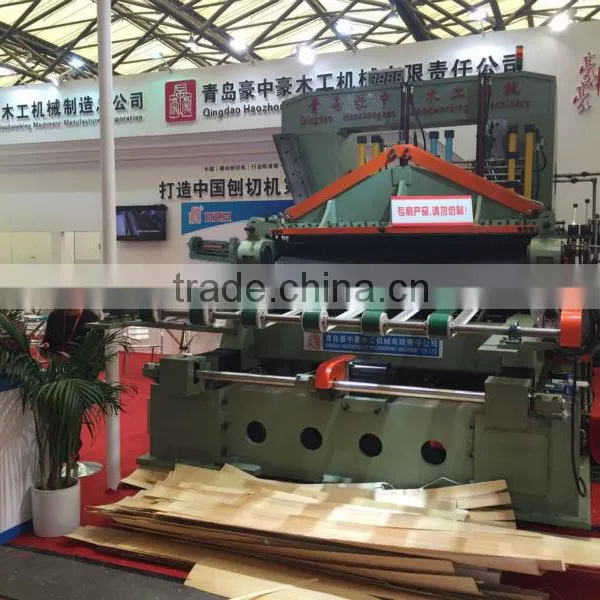

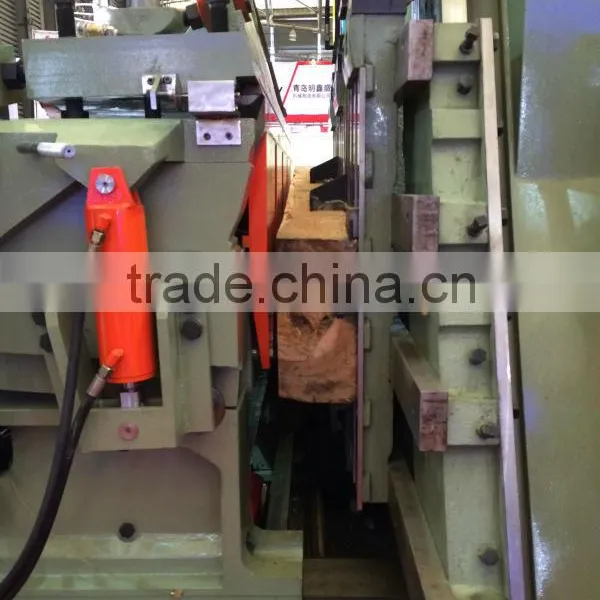

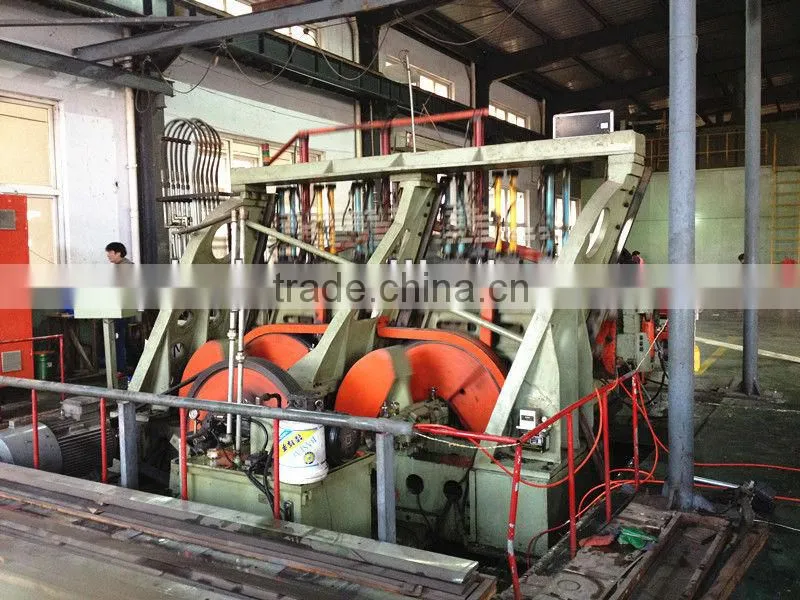

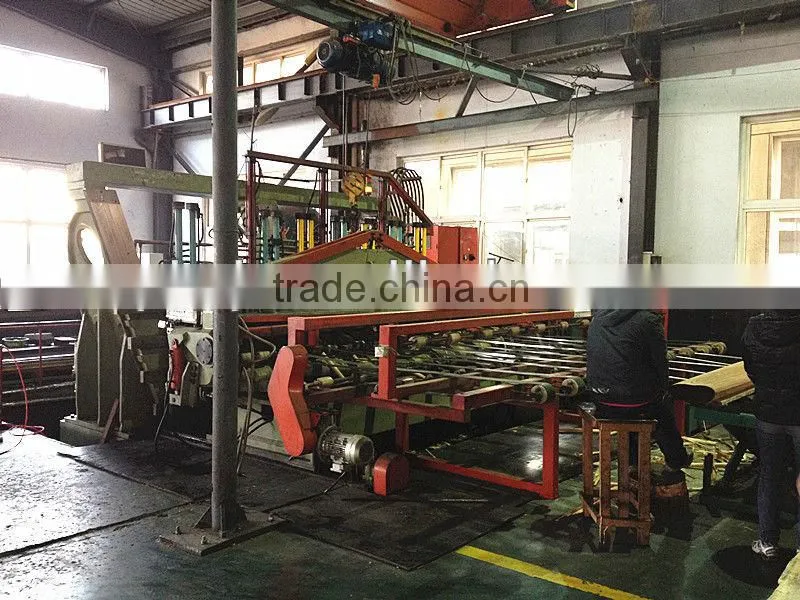

In working condition
Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment.
Package: Bare packing and fit in container directly.
Delivery: About 50 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max veneer width sliced by machine?
Usually 600, width can reach 1300mm by BB1135B model
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
