Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well 250w Industrial Power Supply/250W Industrial 1U ATX 12V/P4 PC Power Supply

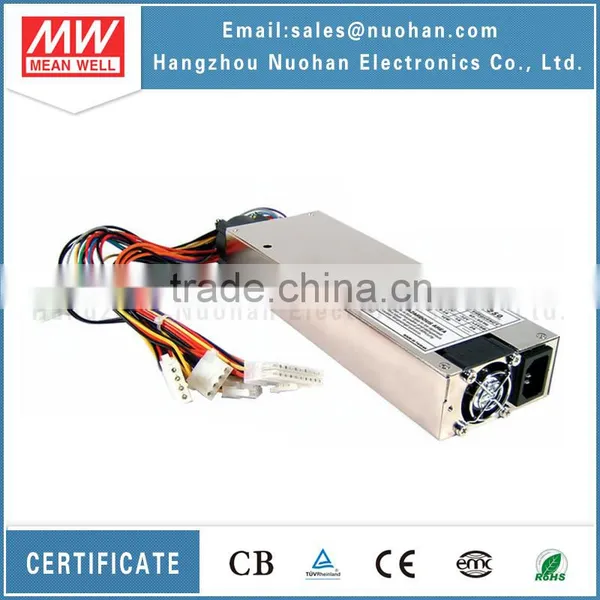

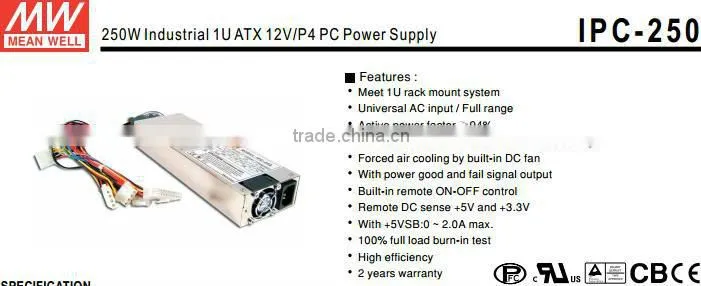

Mean Well 250w Industrial Power Supply/250W Industrial 1U ATX 12V/P4 PC Power Supply

Name: Mean Well 250w Industrial Power Supply/250W Industrial 1U ATX 12V/P4 PC Power Supply
Brand: Mean Well
SKU: 117436159

Mean Well 250w Industrial Power Supply/250W Industrial 1U ATX 12V/P4 PC Power Supply thumbnail-1

Mean Well 250w Industrial Power Supply/250W Industrial 1U ATX 12V/P4 PC Power Supply photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

IPC-250

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number IPC-250

Output Power Other, 250w

Output Type Multiple

Input Voltage Other, 90 ~ 264VAC

Output Voltage 3.3v,5v,12v,-5v,-12v

Output Frequency 47~63Hz

Output Current 20A,25A,15A,0.5A,1A

MODEL		IPC-250
OUTPUT	OUTPUT NUMBER	CH1		CH2		CH3		CH4	CH5	STANDBY
	DC VOLTAGE	3.3V		5V		12V		-5V	-12V	5VSB
	RATED CURRENT	20A		25A		15V		0.5A	1A	2A
	CURRENT RANGE	0~ 20A		1 ~ 25A		1 ~ 15A		0 ~ 0.5A	0.1 ~ 1A	0 ~ 2A
	RATED POWER	250W continue. +5V,+3.3V,+12V combine total power output shall not exceed 230W. (The +5 & +3.3Volt combine total output shall not exceed 150W) (The -5 & -12Volt combine total output shall not exceed 12W)
	RIPPLE & NOISE (max.)	50mVp-p	50mVp-p		120mVp-p		100mVp-p		120mVp-p		50mVp-p
	VOLTAGE ADJ. RANGE	CH2 : 5.05 ~ 5.5V
	VOLTAGE TOLERANCE	CH1±5.0%		±5.0%		±7.0%		±8.0%	±10%	±5.0%
	LINE REGULATION	±1.0%		±1.0%		±1.0%		±2.0%	±2.0%	±1.0%
	LOAD REGULATION	±5.0%		±5.0%		±7.0%		±8.0%	±10%	±5.0%
	SETUP,RISE TIME	800ms,20ms/230VAC 2500ms, 20ms/115VAC at full load
	HOLD UP TIME	16ms / 230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	90~264VAC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	75%
	AC CURRENT (Typ.)	4A/115VAC 2A/230VAC
	INRUSH CURRENT	40A/115VAC 80A/230VAC
	LEAKAGE CURRENT	3mA / 240VAC
PROTECTION	OVER LOAD	Protection type : Shut down o/p voltage, re-power on to recover
		105 ~ 150% rated output power
	OVER VOLTAGE	+3.3V, +5V: 110% ~ 140% of rated voltage ; +12V:13.2V ~ 16V
		Protection type : Shut down o/p voltage, re-power on to recover
	SHORT CIRCUIT	All output equipped with short circuit
		Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION	POWERGOODSIGNAL	The TTL compatible signal out with 100ms to 500ms delay after power set up
	POWER FAIL SIGNAL	The TTL compatible signal will go down at least 1ms before +5V below 4.75V
	PS-ONINPUTSIGNAL	Power off: PS-ON = "Hi" or ">2V" ; Power on: PS-ON = "Low" or "<0.5V"

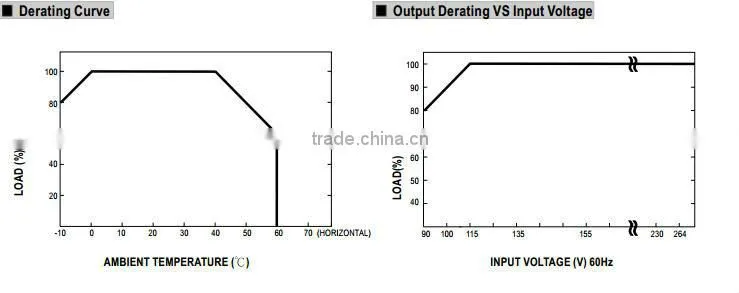

ENVIRONMENT	WORKING TEMP.	-10~+60°C (Refer to derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., H	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.05%/°C (0~50°C)on CH1 output
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC
	EMC EMISSION	Compliance to , EN55022 (CISPR22) Class B ; Design refer to FCC part 15 Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2 (EN50082- 2), heavy industry level, criteria A
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

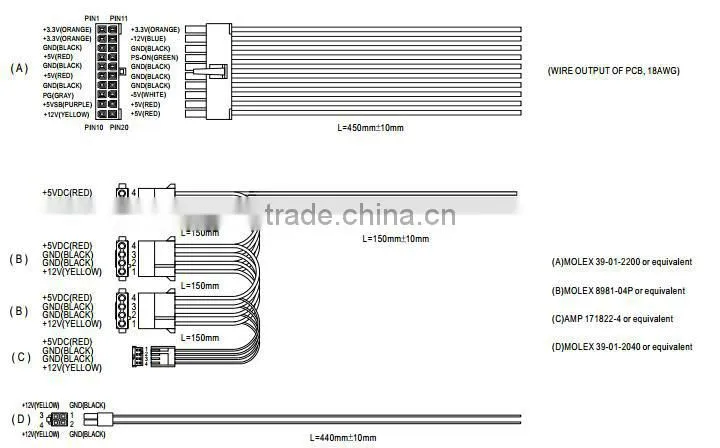

OTHERS	CONNECTOR	ATX main power connector * 1ea; +12V power connector * 1ea
		Peripheral power connector * 3ea; Floppy drive power connector * 1ea
	MTBF	94.1Khrs min. MIL-HDBK-217F (25°C)
	DIMENSION	2408340mm (LWH)
	PACKING	1.44Kg; 10pcs/15.4Kg/0.89CUFT
