Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well 155w Power Supply With Battery Charger/155W Dual Output With Battery Charger(UPS Function)

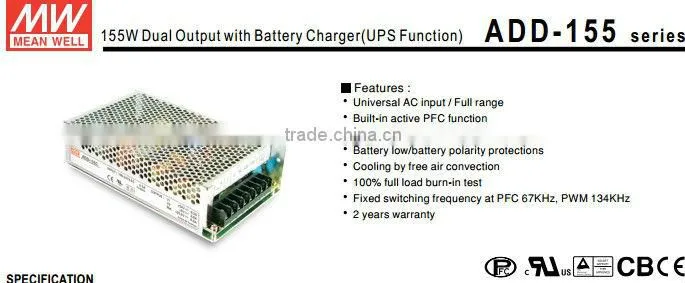

Mean Well 155w Power Supply With Battery Charger/155W Dual Output With Battery Charger(UPS Function)

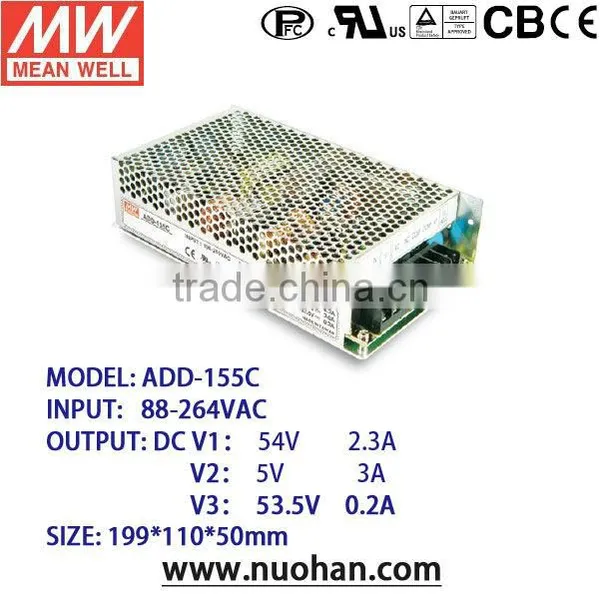

Name: Mean Well 155w Power Supply With Battery Charger/155W Dual Output With Battery Charger(UPS Function)
Brand: MeanWell
SKU: 117436167
Availability: InStock

Mean Well 155w Power Supply With Battery Charger/155W Dual Output With Battery Charger(UPS Function) thumbnail-1

Mean Well 155w Power Supply With Battery Charger/155W Dual Output With Battery Charger(UPS Function) photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

MeanWell

Model Number:

ADD-155C

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name MeanWell

Model Number ADD-155C

Output Power Other, 149.9W

Output Type Dual

Input Voltage Other, 88 ~ 264VAC 124 ~ 370VDC

Output Voltage 54V,5V

Output Current 2.3A,3A

MODEL		ADD-155C
OUTPUT	OUTPUT NUMBER	CH1	CH2	CH3
	DC VOLTAGE	54V	5V	53.5V
	RATED CURRENT	2.3A	3A	0.2A
	CURRENT RANGE	0~ 2.5A	0~ 3A	------
	RATED POWER	149.9W
	RIPPLE & NOISE (max.) Note.1	240mVp-p	100mVp-p	--------
	VOLTAGE ADJ. RANGE	CH1: 24~ 29V
	VOLTAGE TOLERANCE	±1.0%	±5.0%	-------
	LINE REGULATION	±1.0%	±0.5%	-------
	LOAD REGULATION	±1.0%	±2.0%	-------
	SETUP,RISE TIME	1000ms,90ms/230VAC 2000ms, 90ms/115VAC at full load
	HOLD UP TIME	24ms / 230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88~264VAC 124~370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.92 at full load
	EFFICIENCY (Typ.)	81%
	AC CURRENT (Typ.)	2.5A/115VAC 1.5A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 20A/115VAC 40A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
		CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power
	OVER VOLTAGE	CH1:62.1~ 72.9V
		Protection type : Shut down o/p voltage, re-power on to recover
	BATTERY LOW	39V ± 2V
ENVIRONMENT	WORKING TEMP.	-10~+60°C (Refer to derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)on CH1 output
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	EMC EMISSION	Compliance to , EN55022 (CISPR22) Class B ; EN61000-3-2.3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024, light industry level, criteria A
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
OTHERS	MTBF	164.2Khrs min. MIL-HDBK-217F (25°C)

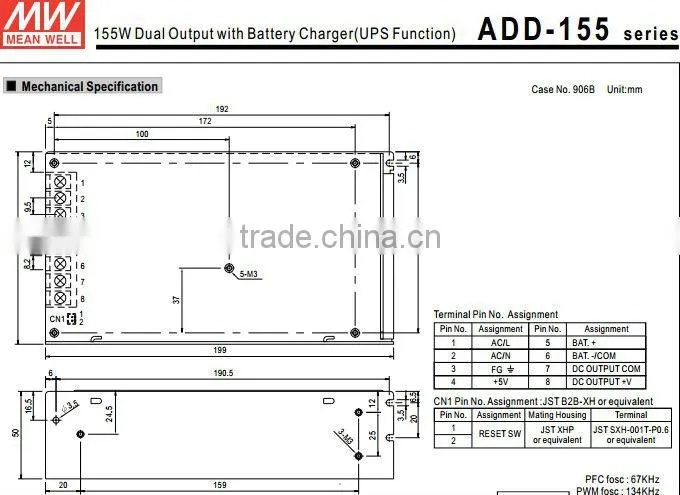

	DIMENSION	19911050mm (LWH)
	PACKING	1Kg; 16pcs/16Kg/0.95CUFT
NOTE	1.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2.. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4The power supply is considered a component which will be installed into a final equipment. the final equipment must be re-confirmed that it still meets EMC directives.For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.
