Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell 100w Switching Power Supply With Battery Charger/100W Single Output With Battery Charger(UPS Function)

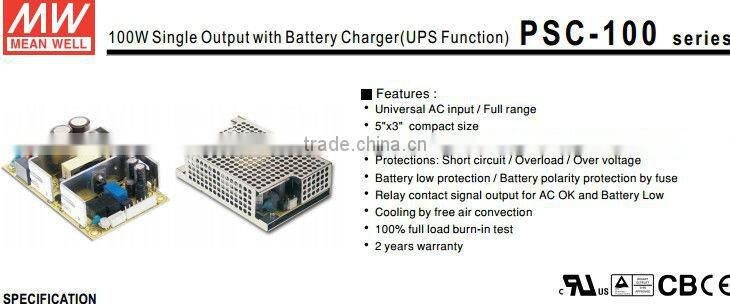

Meanwell 100w Switching Power Supply With Battery Charger/100W Single Output With Battery Charger(UPS Function)

Name: Meanwell 100w Switching Power Supply With Battery Charger/100W Single Output With Battery Charger(UPS Function)
Brand: Mean Well
SKU: 117436277
Availability: InStock

Meanwell 100w Switching Power Supply With Battery Charger/100W Single Output With Battery Charger(UPS Function) thumbnail-1

Meanwell 100w Switching Power Supply With Battery Charger/100W Single Output With Battery Charger(UPS Function) photo-1

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

PSC-100B

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number PSC-100B

Output Power Other, 100.74W

Output Type Single

Input Voltage Other, 90 ~ 264VAC 127 ~ 370VDC

Output Voltage 27.6V

Output Frequency 47~63Hz

Output Current 2.4A

MODEL		PSC-100B
OUTPUT	OUTPUT NUMBER	CH1	CH2
	DC VOLTAGE	27.6V	27.6V
	RATED CURRENT	2.4A	1.25A
	CURRENT RANGE	0~ 3.5A	-----
	RATED POWER	100.74W
	RIPPLE & NOISE (max.) Note.1	100mVp-p	-------
	VOLTAGE ADJ. RANGE	CH1: 24~ 29V
	VOLTAGE TOLERANCE	±1.0%	-----
	LINE REGULATION	±0.5%	-----
	LOAD REGULATION	±0.5%	------
	SETUP,RISE TIME	2400ms,30ms/230VAC 2400ms, 30ms/115VAC at full load
	HOLD UP TIME	40ms / 230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	90~264VAC 127~370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	88%
	AC CURRENT (Typ.)	2A/115VAC 1.2A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
		105 ~ 150% rated output power
	OVER VOLTAGE	CH1:28.98 ~ 37.26V
		Protection type : Shut down o/p voltage, re-power on to recover
	BATTERY CUT OFF	20± 1V

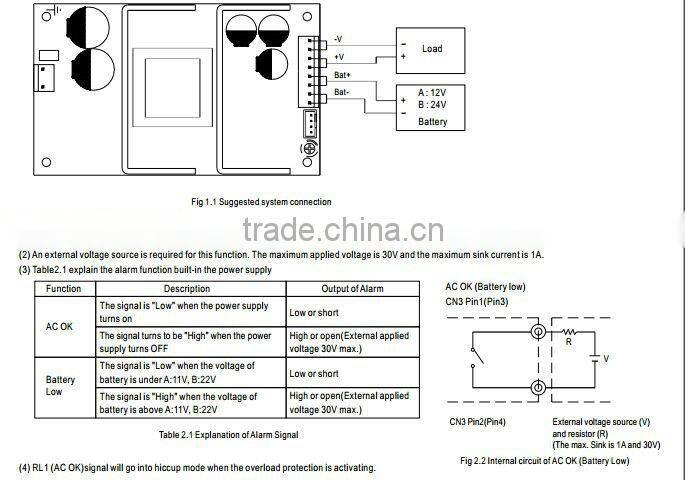

ALARM FUNCTION	AC OK	Relay contact output, ON : AC OK ; OFF : AC Fail ; Max. rating : 30V / 1A
	BATTERY LOW	Battery low voltage : < 11V
		Relay contact output, OFF : Battery OK ; ON : Battery Low ; Max. rating : 30V / 1A

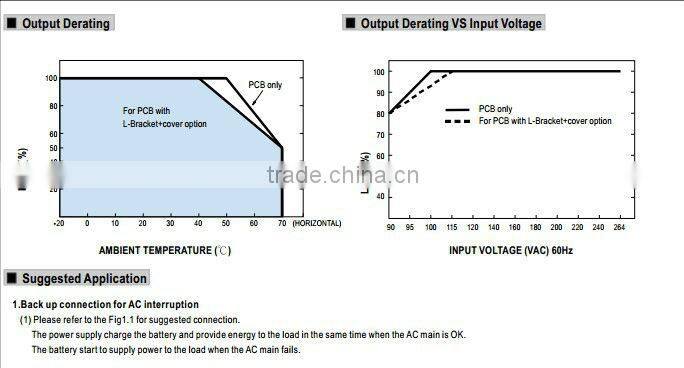

ENVIRONMENT	WORKING TEMP.	-20~+70°C (Refer to derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)on CH1 output
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	EMC EMISSION	Compliance to , EN55022 (CISPR22) Class B ; EN61000-3-2.3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024, light industry level, criteria A
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
OTHERS	MTBF	417.6Khrs min. MIL-HDBK-217F (25°C)

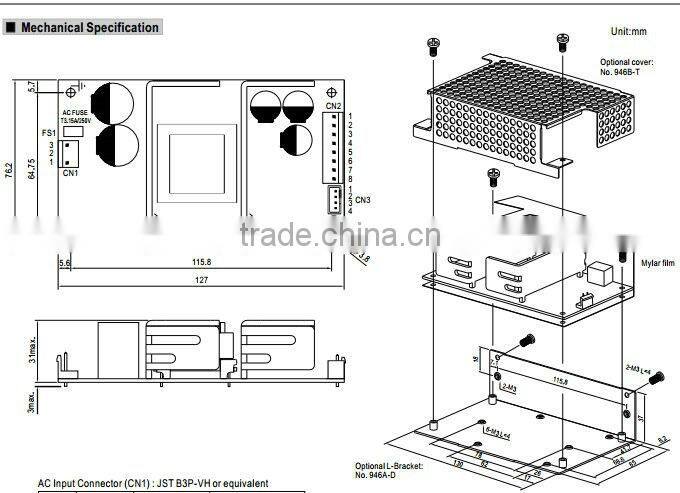

	DIMENSION	PCB:12776.231mm (LWH) ; with optional CASE:1308537mm (LWH)
	PACKING	PCB:0.23Kg;63pcs/15.5Kg/1.35CUFT with optional CASE:0.44Kg;32pcs/15Kg/0.64CUFT
NOTE	1.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2.. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4The power supply is considered a component which will be installed into a final equipment. the final equipment must be re-confirmed that it still meets EMC directives.For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies. 6 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 6. 6.Heat sink HS1,HS2 can not be shorted. 7. 7.Heat sink HS1 must have safety isolation distance with system case.
