Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well 50w Power Supplies 24v Switching Power Supply 50w Power Supply 24v

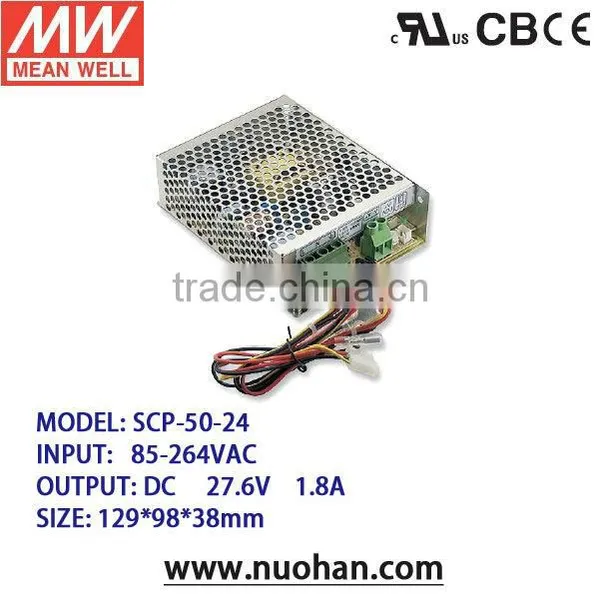

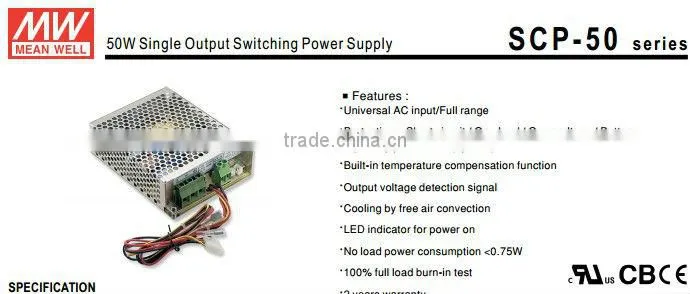

Mean Well 50w Power Supplies 24v Switching Power Supply 50w Power Supply 24v

Name: Mean Well 50w Power Supplies 24v Switching Power Supply 50w Power Supply 24v
Brand: Mean Well
SKU: 117436219

Mean Well 50w Power Supplies 24v Switching Power Supply 50w Power Supply 24v thumbnail-1

Mean Well 50w Power Supplies 24v Switching Power Supply 50w Power Supply 24v photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

SCP-50-24

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number SCP-50-24

Output Power Other, 49.7W

Output Type Single

Input Voltage Other, 85 ~ 264VAC 120 ~ 370VDC

Output Voltage 27.6V

Output Frequency 47~63Hz

Output Current 1.8A

Specifications

MODEL		SCP-50-24
OUTPUT	DC VOLTAGE	27.6V
	RATED CURRENT	1.8A
	CURRENT RANGE	0~ 1.8A
	PEAK 5S Note6	2.2A
	RATED POWER	49.7W
	RIPPLE & NOISE (max.) Note.1	200mVp-p
	VOLTAGE ADJ. RANGE	+15,-5%
	VOLTAGE TOLERANCE	±1.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±1.0%
	SETUP,RISE TIME	500ms,30ms/230VAC 1200ms, 30ms/115VAC at full load
	HOLD UP TIME	50ms / 230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	85~264VAC 120~370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	85%
	AC CURRENT (Typ.)	1.1A/115VAC 0.65A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 45A
	LEAKAGE CURRENT	<2mA / 240VAC

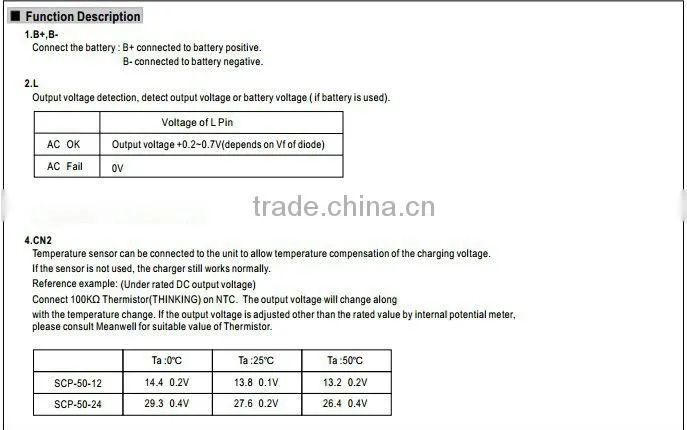

FUNCTION	TEMP.COMPENSATION	By NTC(not provide with the power supply)
FUNCTION	OUTPUT VOLTAGE SENSOR	L=output voltage +0.2~0.7V(AC OK);L=OV(AC Fail)
PROTECTION	OVER LOAD	Hiccup mode, recovers automatically after fault condition is removed.
	OVER LOAD	2.2 ~ 2.9Arated output power
	OVER VOLTAGE	3.1 ~ 38.5V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recovery

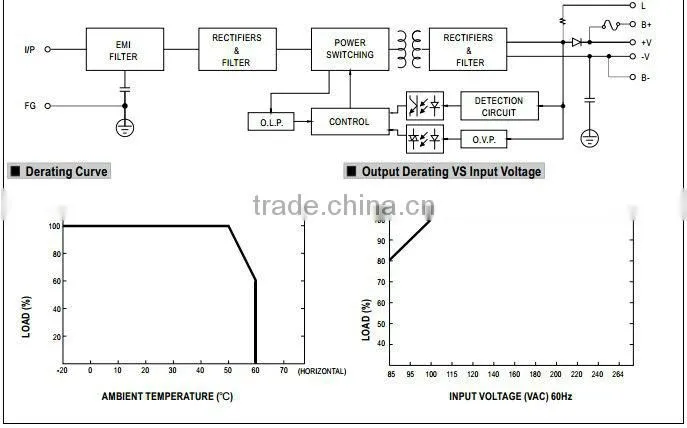

ENVIRONMENT	WORKING TEMP.	-20~+60°C (Refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL60950-1,CB(IEC60950-1)approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	EMC EMISSION	Compliance to , EN55022 (CISPR22) Class B ; EN61000-3-2.3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024,EN61000-6-1light industry level, criteria A
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
OTHERS	MTBF	495.7Khrs min. MIL-HDBK-217F (25°C)

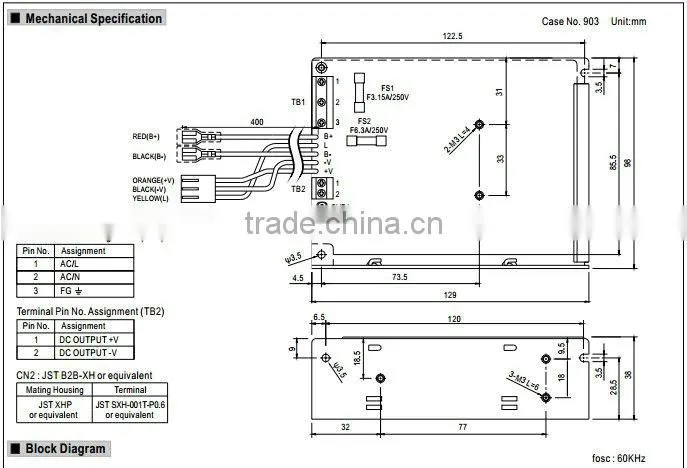

	DIMENSION	1299838mm (LWH)
	PACKING	0.45Kg; 30pcs/14.5Kg/0.95CUFT
NOTE	1.Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2.. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4.Load regulation is measured from 0% to 100% rated load. 5.Line regulation is measured from low line to high line at rated load/ 6.33% Duty cycle maximum within every 15 seconds. Average output power should not exceed the rated power 7.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
