Welcome to visit Ron-en company! ( RNWC horizontal quenching machine )
Mainly products:
RNLCX CNC vertical inductor moving quenching machines tools
RNLC CNC vertical workpiece moving quenching machine tools
RNWC horizontal quenching machine

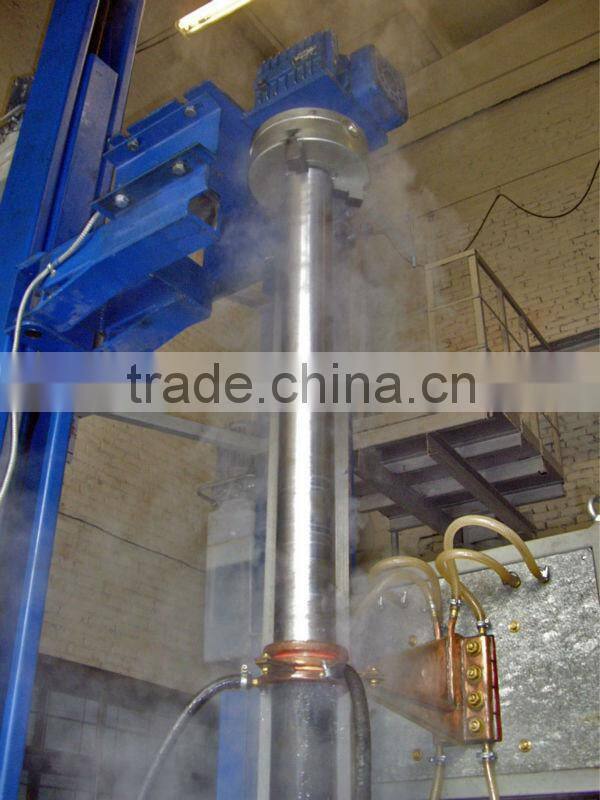

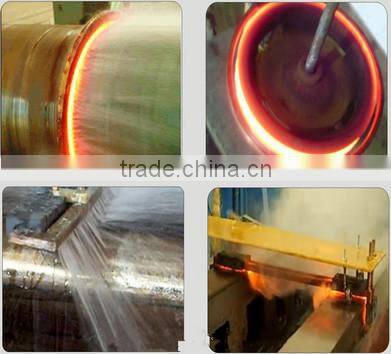

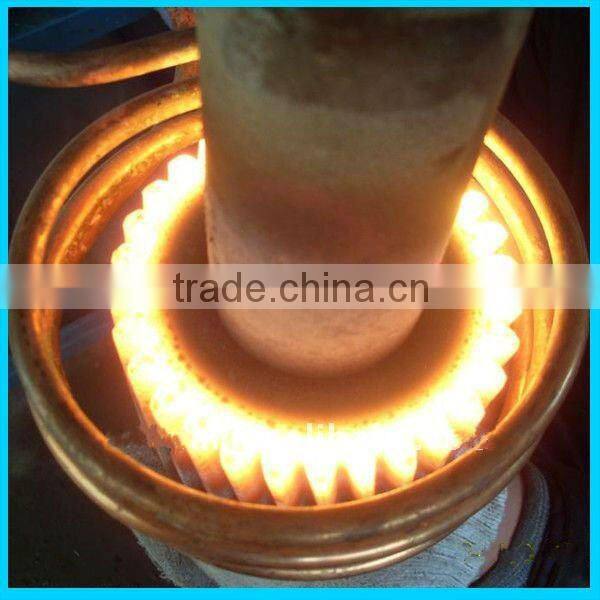

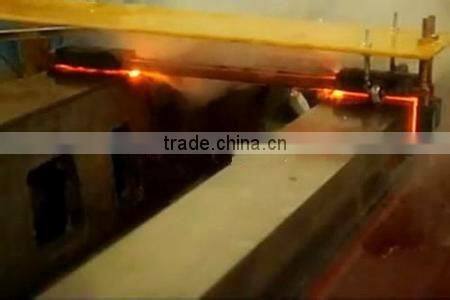

Workpiece quenching:
Machine shows:
Specification:

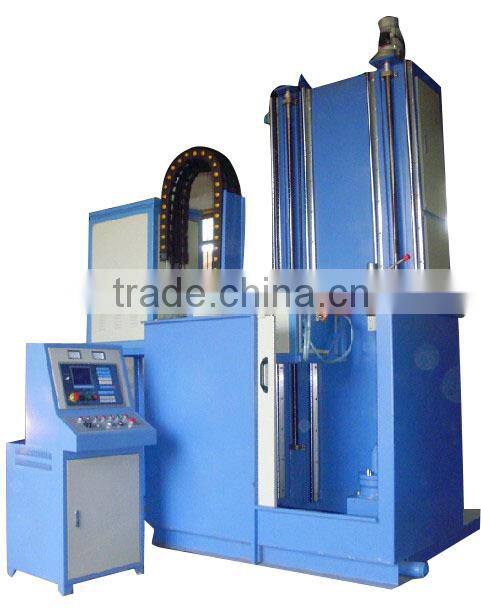

RNLCX CNC vertical inductor moving quenching machines tools
Application: variety of shafts, discs, gear parts etc.
Such as: automobile constant velocity universal joint, outer race, barrel-shaped shell, CV joint, axle, drive shaft etc..
Technical data:
Working station: 2
Moving type: induction moving
Quenching length: 100-1500 mm
Quenching diameter: 15-100mm
Workpiece rotation: 30-120 rpm
Repeat position precision: ±0.1mm
Max. workpiece weight: 100kg
RNLC CNC vertical workpiece moving quenching machine tools
Application: variety of small shafts, discs, gear etc. parts
Such as: automotive steering valve core, valve coating, inlet shaft, micro motor shaft, synchronizer rings etc..
Technical data:
Moving type: workpiece moving
Quenching length: 10-500mm
Quenching diameter: 6-100mm
Workpiece rotation: 30-180rpm
Repeat position precision: ±0.1mm
Max. workpiece weight: 5kg
RNWC morizontal quenching machine

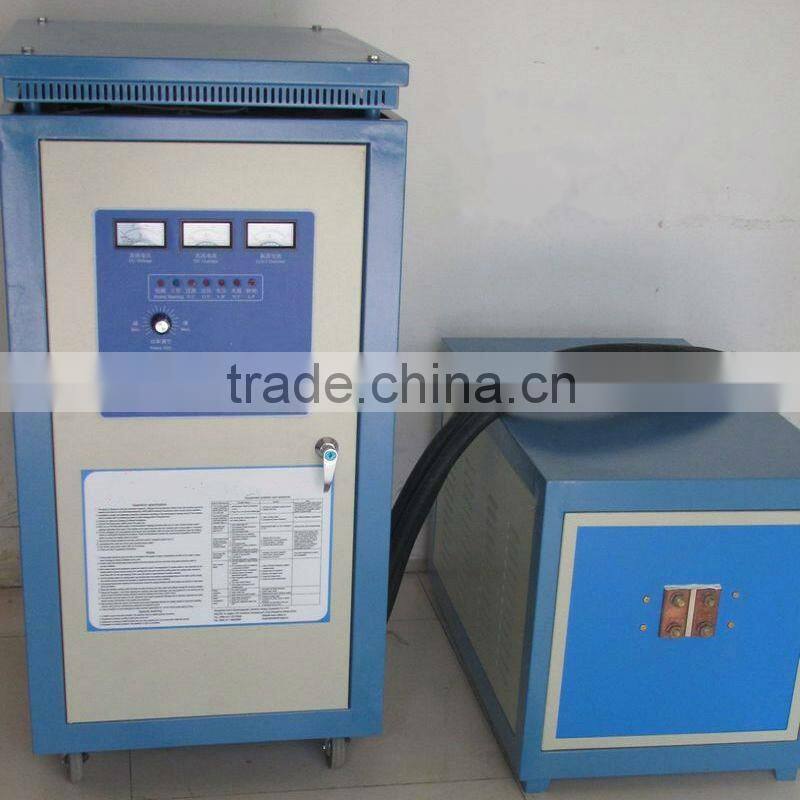

Used for constant quenching of variety of shafts parts, apply SIEMENS CNC system to realize the position for induction and workpiece, scan controlling, and connecting with medium/high frequency power, to realize the automatic quenching and annealing.
Application: workpiece length: 50-10000 mm
Workpiece diameter: 10-800mm
Workpiece Max. weight: 10000kg
Workpiece/induction Max. moving speed: 500mm/s
Workpiece Max. length: 1500mm
Characters:
High strength welding bed
Stainless steel fluid tank
SIEMENS CNC system
Imported ball screw and linear guideway
Supported chiral/ electric before/after, up/down two-dimensional adjustment
Moving protective door
Rotating box
Intermittent automatic lubrication system
Automatic adjusting the clamping length
Stainless moving waterproof cover
Sound/light alarm
Adjustable turns ratio quenching transformer
Moving stainless flexible back center
Hydraulic lifting anti-deformation of workpiece supporting rollers.
If you have purchase plan recently? glad to talk with you.
