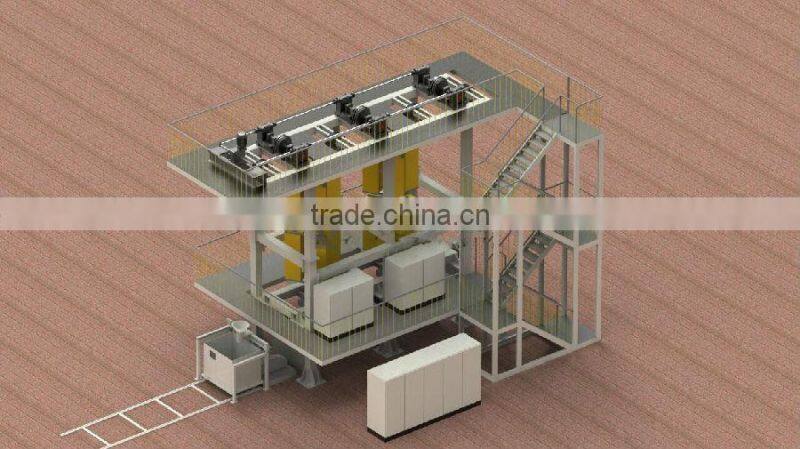

Welcome to visit Ron-en company! (round-link induction quenching and tempering machine)
Main production:
1. Round-link induction quenching and tempering machine
2. Ball screw quenching equipments
3. Diaphragm spring automated quenching machines
Usage:
Used for continuous heat treatment of high-strength round-link chain for hoisting, mining and ships.
Features:

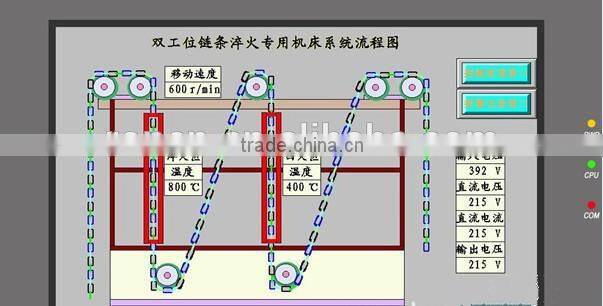

Round-link chain conveyor, cooling unit and heating system controlled by PC computer, heat treatment machine is adaptable for preheating, quenching, tempering and differential tempering.
Clasping design is adopted for the chain delivery, adapting to various sizes of round link chain.
Siemens PLC control system and procedure is adopted for control of various parameters and protection.
High-efficiency and stable induction heating system, precise control of heating temperature.
Medium-frequency power source of transistor, high heating efficiency and good energy conservation effect.
Operating under high power factor, quite low harmonic interference on power grid.
Constant-temperature controlled power source and unit cooled by quenching liquid, automatic temperature control.
Technical parameter
| Model | diameter range for link | quenching temperature | tempering | total heating power | heating power |
| RN-10 | 4-6 mm | 800-1000 °c | 180-450 °c | 100 KW | 8-10 KHZ |
| RN-200 | 12-16 mm | 800-1000 °c | 180-450 °c | 200 KW | 5-7 KHZ |
| RN-300 | 22-26 mm | 800-1000 °c | 180-450 °c | 300 KW | 4-6 KHZ |
| RN-400 | 26-30 mm | 800-1000 °c | 180-450 °c | 400 KW | 3-5 KHZ |
| RN-600 | 30-34 mm | 800-1000 °c | 180-450 °c | 600 KW | 3-4 KHZ |
| RN-800 | 34-48 mm | 800-1000 °c | 180-450 °c | 800 KW | 2-4 KHZ |
| RN-950 | 48-52 mm | 800-1000 °c | 180-450 °c | 950 KW | 2-4 KHZ |
Other specifications can be made customized.
Photos show:

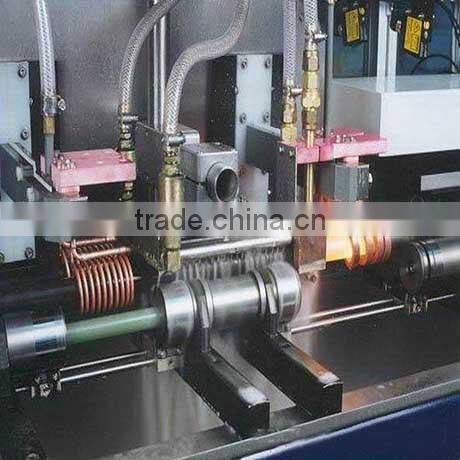

Ball screw quenching equipments Diaphragm spring automated quenching machines
