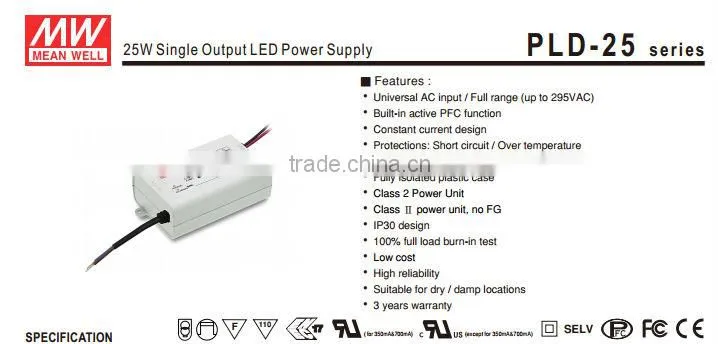

Help CenterMean Well 25w 350ma Led Driver/25w Switching Power Supply/power Supply/power Supply 360a
Related Products
-
IP67 100w Led Power Supply Constant Current 1750ma With CE EMCUS$ 1 - 100MOQ: 1 Piece -
Mean Well 24v Led Driver/30W Single Output Switching Power Supply 30w Led Driver/30w Waterproof Led DriverUS$ 1 - 10MOQ: 10 Pieces
-
100w 36V LED Driver/MeanWell100w 36v Switching Power Supply/100W Single Output Switching Power Supply/power Supplies 100wUS$ 1 - 10MOQ: 1 Piece
-
Meanwell PLM-40-700 40W AC Dimmable LED Power Supply 40W Led Driver Power Supply Led Driver Constant CurrentUS$ 16 - 28MOQ: 1 Piece
-
Mean Well Led Driver 24v/40W 24V Single Output Switching Power Supply /LED Driver 40w/dimmable Led Driver 24vUS$ 1 - 10MOQ: 1 Piece
MODEL |

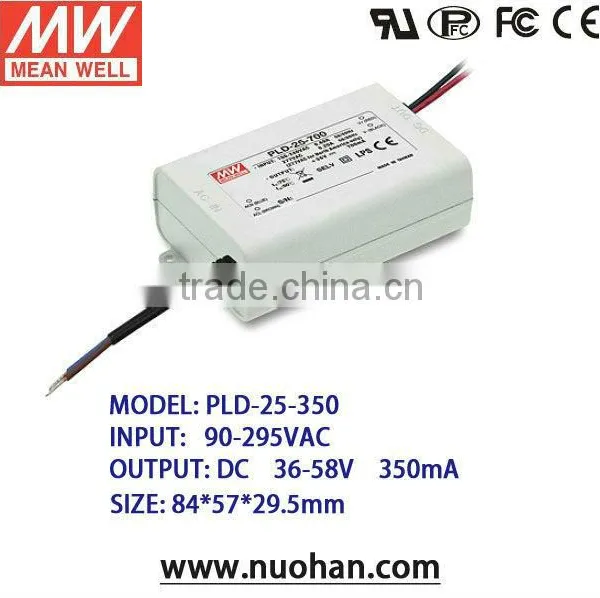

PLD-25-350 |
|
OUTPUT |
OPERATING VOLTAGE RANGE |
36 ~ 58V |
RATED CURRENT |
350mA |
|
CURRENT ACCURACY |
±5.0% |
|
RATED POWER |
20.3W |
|
RIPPLE & NOISE (max.) Note.1 |
4.6Vp-p |
|
NO LOAD OUTPUT VOLTAGE (max |
63V |
|
SETUP TIME |
1500ms / 230VAC 3000ms /115VAC at full load |
|
INPUT |
VOLTAGE RANGE |
90~295VAC 127 ~ 417VDC |
POWER FACTOR (Typ.) |
PF>0.98/115VAC, PF>0.92/230VAC at full load (Please refer to "Power Factor Characteristic" curve) |
|
TOTAL HARMONIC DISTORTION |
Total harmonic distortion will be lower than 20% when output loading is 75% or higher |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
EFFICIENCY (Typ.) |
85% |
|
AC CURRENT (Typ.) |
0.6A/115VAC 0.3A/230VAC 0.2A/277VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 15A (twidth=75μs measured at 50% Ipeak) at 230VAC |
|
LEAKAGE CURRENT |
<0.5mA / 240VAC |
|
PROTECTION |
OVER LOADSHORT CIRCUIT |
Hiccup mode, recovers automatically after fault condition is removed. |
OVER TEMPERATURE |
95°C ±10°C (TSW1) |
|
Protection type : Shut down o/p voltage, auto-recovery | ||
ENVIRONMENT |
WORKING TEMP. |
-30~+60°C (Refer to derating curve) |
WORKING HUMIDITY |
20~95% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-40~+80°C, 10~95%RH |
|
TEMP. COEFFICIENT |
±0.03%/°C (0~50°C) |
|
VIBRATION |
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes |
|
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL8750, CSA C22.2 No. 250.0-08(except for PLD-25-350, PLD-25-700), ENEC EN 61347-1, EN 61347-2-13 independent, EN 62384, IP30 approved ; design refer to UL60950-1, TUV EN60950-1 |
WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC |
|
EMC EMISSION |
Compliance to , EN55015 EN61000-3-2 Class C ; EN61000- 3-3,, FCC part 18 non-consumer equipment |
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria A |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH |
|
OTHERS |
MTBF |
968.6Khrs min. MIL-HDBK-217F (25°C) |
DIMENSION |
84*57*29.5mm (L*W*H) |
|
PACKING |
0.19Kg;72pcs/14.7Kg/0.75CUFT |
|
NOTE |
1.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2.. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers. |
|
