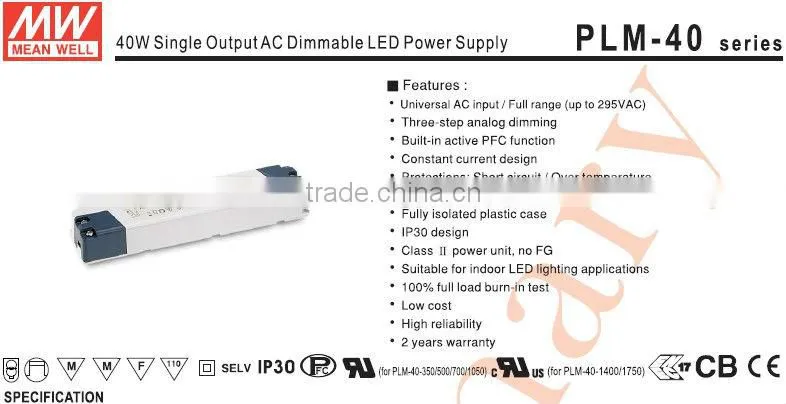

Meanwell PLM-40-700 40W AC Dimmable LED Power Supply 40W Led Driver Power Supply Led Driver Constant Current

Name: Meanwell PLM-40-700 40W AC Dimmable LED Power Supply 40W Led Driver Power Supply Led Driver Constant Current
Brand: Mean Well
SKU: 117424601
Availability: InStock

Meanwell PLM-40-700 40W AC Dimmable LED Power Supply 40W Led Driver Power Supply Led Driver Constant Current thumbnail-1

Meanwell PLM-40-700 40W AC Dimmable LED Power Supply 40W Led Driver Power Supply Led Driver Constant Current photo-1

US$ 16 - 28 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Mean Well

Model Number:

PLM-40-700

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Mean Well

Model Number PLM-40-700

Output Power Other, 38.5W

Output Type Single

Input Voltage Other, 90~295VAC 127~417VDC

Output Voltage 28 ~ 55V

Output Frequency 47~63Hz

Output Current 700mA

Specifications

MODEL		PLM-40-700
	RATED CURRENT	700A
	OPERATION VOLTAGE RANGE Note.4	28 ~ 55V
	CURRENT RANGE	0~ 700mA
	CURRENT ACCURACY	±5.0%
	RATED POWER	38.5W
	RIPPLE & NOISE (max.) Note.2	6Vp-p
	NO LOAD OUTPUT VOLTAGE (max.)	60V
	SETUP TIME	500ms/115 VAC, 230VAC at full load
INPUT	VOLTAGE RANGE Note.3	90~295VAC 127~417VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR	PF≥0.97/115VAC, PF≥0.95/230VAC, PF>0.9/277VAC (at full load) (Please refer to “Power Factor Characteristic” curve)
	EFFICIENCY (Typ.)	87%
	AC CURRENT (Typ.)	0.5A/115VAC 0.3A/230VAC 0.25A/277VAC
	INRUSH CURRENT (Typ.)	COLD START 15A (twidth =75us measured at 50% lpeak ) at 230VAC
	LEAKAGE CURRENT	<0.5mA/240VAC
PROTECTION	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed.
	OVER TEMPETRATURE	100~+10°C (TSW1)
	OVER TEMPETRATURE	Protection type: Hiccup mode, recovers automatically after temperature goes down.

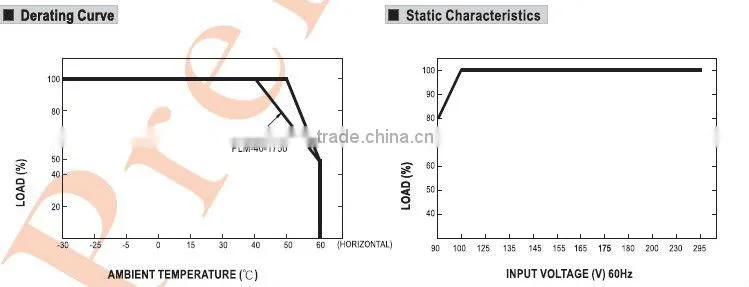

ENVIRONMENT	WORKING TEMP	-30~+60°C (Refer to “Derating Curve”)
	WORKING HUMIDITY	20~90%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C 10~95%RH
	TEMP. COEFFICIENT	±0.03%(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS	UL8750, CSA C22.2 No. 250.13-12 (for PLM-40-1400 / 1750), ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC
	ISOLATION RESISTANCE	I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN61000-3-2 Class C(≥50% load), EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria A (surge 2KV)
QTHERS	MTBF	Khrs min. MIL-HDBK-217F(25°C)

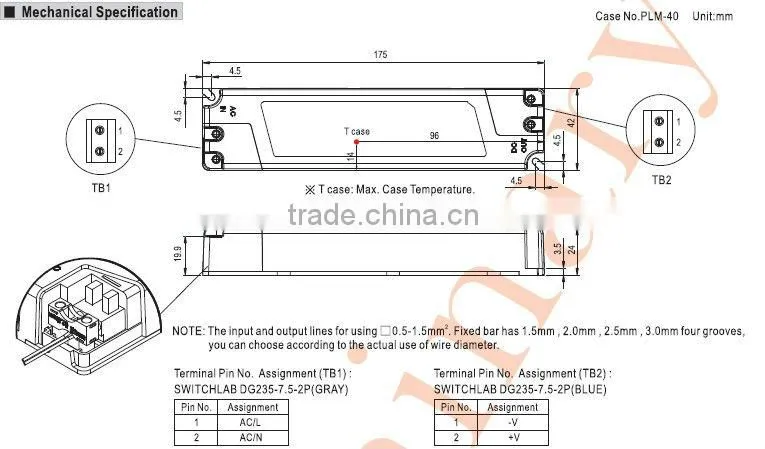

	DIMENSION	1754224mm(LWH)
	PACKING	Kg; pcs/ Kg/ CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Derating may be needed under low input voltage. Please check the static characteristics for more details. 4. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific syestem design. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
