Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 100w 36V LED Driver/MeanWell100w 36v Switching Power Supply/100W Single Output Switching Power Supply/power Supplies 100w

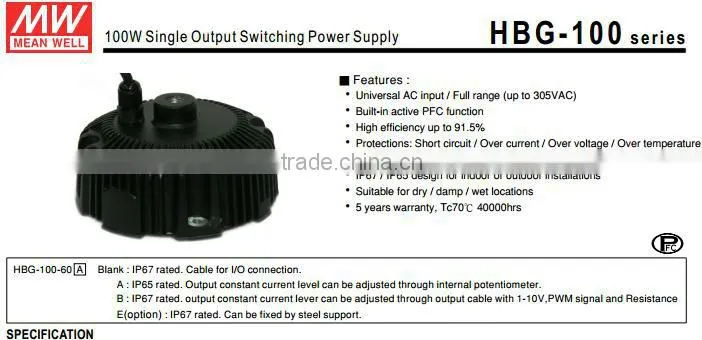

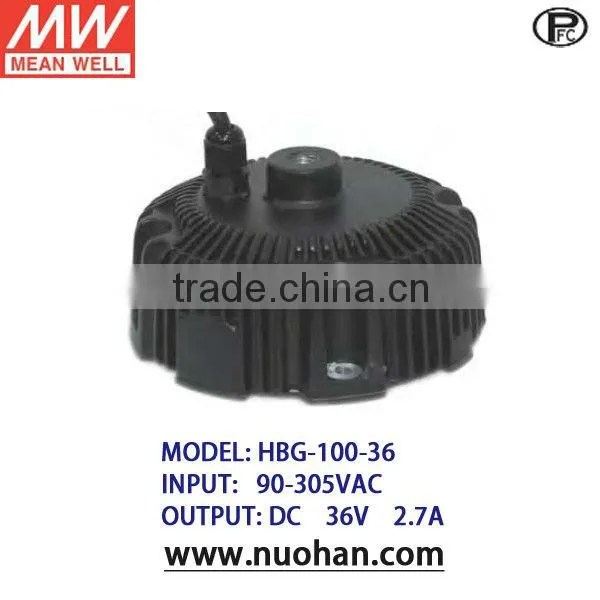

100w 36V LED Driver/MeanWell100w 36v Switching Power Supply/100W Single Output Switching Power Supply/power Supplies 100w

Name: 100w 36V LED Driver/MeanWell100w 36v Switching Power Supply/100W Single Output Switching Power Supply/power Supplies 100w
Brand: MeanWell
SKU: 117424581

100w 36V LED Driver/MeanWell100w 36v Switching Power Supply/100W Single Output Switching Power Supply/power Supplies 100w thumbnail-1

100w 36V LED Driver/MeanWell100w 36v Switching Power Supply/100W Single Output Switching Power Supply/power Supplies 100w photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

MeanWell

Model Number:

HBG-100-36

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name MeanWell

Model Number HBG-100-36

Output Power Other, 97.2W

Output Type Single

Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC

Output Voltage 36V

Output Frequency 47~63Hz

Output Current 2.7A

MODEL		HBG-100-36
OUTPUT	DC VOLTAGE	36V
	CONSTANT CURRENT OPERATION VOLTAGE	21.6 ~ 36V
	RATED CURRENT	2.7A
	RATED POWER	97.2W
	RIPPLE&NOISE (max.) Note.2	300mVp-p
	CURRENT ADJ. RANGE	1.62 ~ 2.7A
	CURRENT ADJ. RANGE	Can be adjusted by internal potentiometer A type only
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.0%
	SETUP, RISE TIME	2000ms,,80ms/ 230VAC 1000ms,80ms/115VAC at full load
	HOLD UP TIME (Typ.)	12ms at full load 115VAC/230VAC
INPUT	VOLTAGE RANGE	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE	47 ~ 63Hz

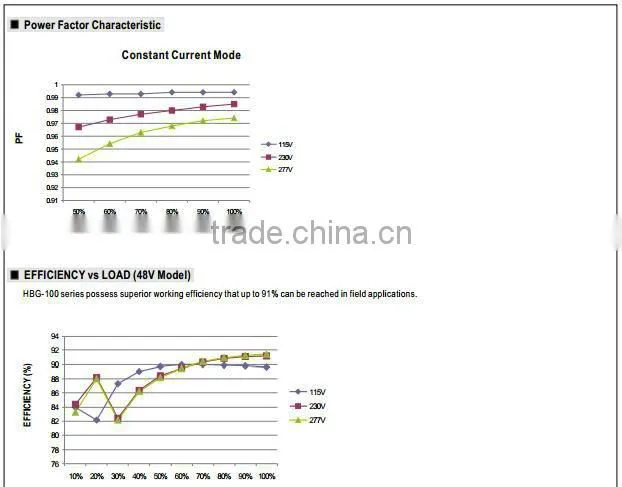

	POWER FACTOR (Typ.)	PF>0.96/115VAC, PF>0.96230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)	91%
	AC CURRENT (Typ.)	1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 60A(twitdth=415μs,measured at50%ipeak) at 230VAC
	MAX.LED DRIVE NUMBER ON MCB C TYPE 16A	21units@230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
	OVER CURRENT	95~ 108%
	OVER CURRENT	Protection type : Constant current limiting,
	OVER TEMPERATURE	95°C± 10°C (RTH1)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER VOLTAGE	41 ~ 49V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover

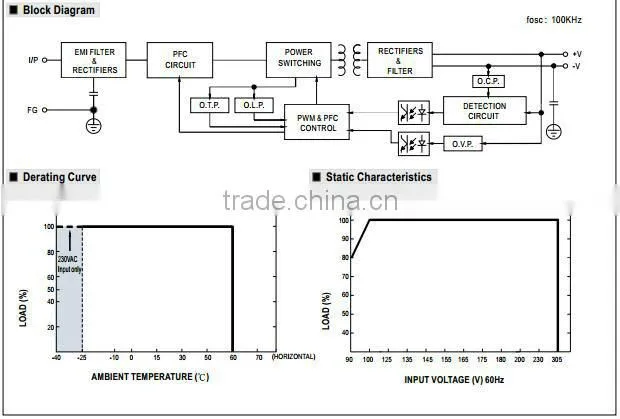

ENVIRONMENT	WORKING TEMP.	-40~+60°C (Refer to derating curve)
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	Design refer to UL8750, EN61347-2-13
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
	EMC EMISSION	Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
OTHERS	MTBF	300K hrs min. MIL-HDBK-217F (25 )

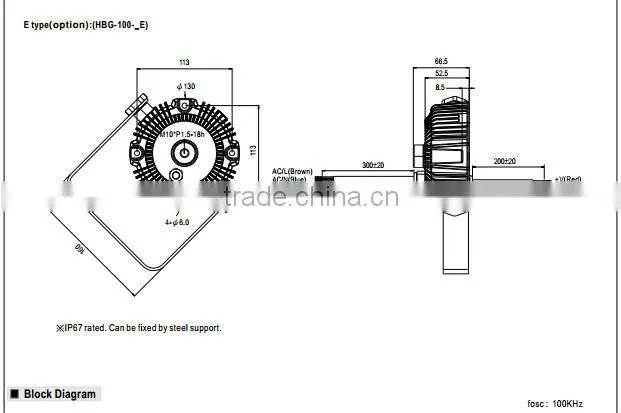

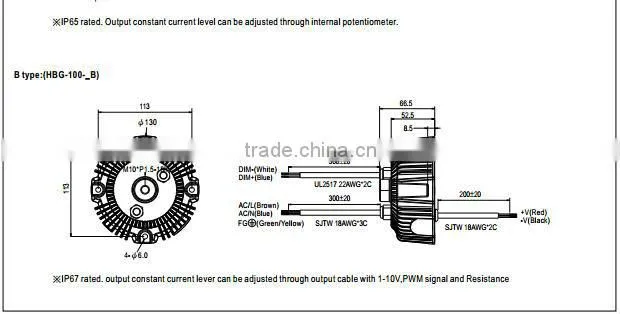

	DIMENSION	Refer to mechanical specification
	PACKING	1.1Kg; 12pcs/15.2Kg/1.43CUFT
NOTE	1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated witha 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.Derating may be needed under low input voltage. Please check the static characteristics for more details. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit. 8. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
