Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell 3000W True Sine Wave DC-AC Inverter With Solar Charger 3kw Inverter/dc to ac Power Inverter

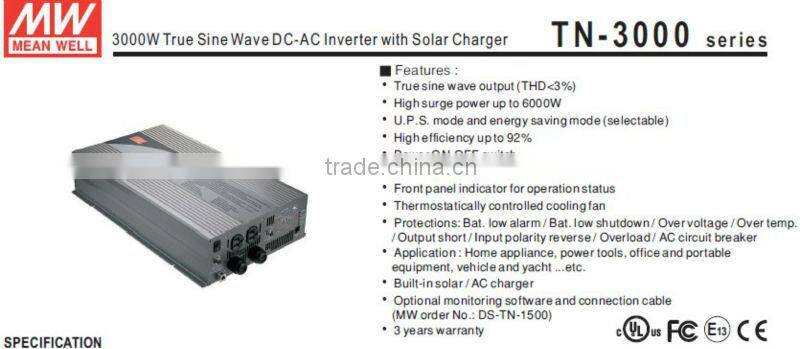

Meanwell 3000W True Sine Wave DC-AC Inverter With Solar Charger 3kw Inverter/dc to ac Power Inverter

Name: Meanwell 3000W True Sine Wave DC-AC Inverter With Solar Charger 3kw Inverter/dc to ac Power Inverter
Brand: Meanwell
SKU: 117410075
Availability: InStock

Meanwell 3000W True Sine Wave DC-AC Inverter With Solar Charger 3kw Inverter/dc to ac Power Inverter thumbnail-1

Meanwell 3000W True Sine Wave DC-AC Inverter With Solar Charger 3kw Inverter/dc to ac Power Inverter photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

TN-3000-124

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number TN-3000-124

Output Power Other, 3000W

Output Type Single

Input Voltage Other, 24V

Output Voltage 100~120V

Output Current 25~30A

MODEL		TN-3000-124
OUTPUT	RATED POWER (Typ.)	3000W
	MAXIMUM OUTPUT POWER(Typ.)	3450W for 180 sec. / 4500W for 10 sec. / surge power 6000W for 30 cycles
	AC VOLTAGE	Factory setting set at 110VAC
	AC VOLTAGE	100 / 110 / 115 / 120VAC selectable by setting buttonS.W
	FREQUENCY	60 ±0.1Hz 50/60Hz selectable by setting buttonS.W
	WAVEFORM Note.2	True sine wave (THD<3%) at rated input voltage
	AC REGULATION (Typ.)	±3.0%
	TRANSFER TIME (Typ.)	10ms inverter→ by pass
	SAVING MODE (Typ.)	Default disabled. Load≤5W will be changed to standby mode
	FRONT PANEL INDICATOR	Battery voltage level, output load level, saving mode, fault and operation status
INPUT	BAT. VOLTAGE	24V
	VOLTAGE RANGE (Typ.) Note. 3, 6	21 ~ 30VDC
	DC CURRENT (Typ.) Note.4	150A
	NO LOAD DISSIPATION(Typ.)	≤10W at standby saving mode
	OFF MODE CURRENT DRAW(Typ.)	≤1mA
	EFFICIENCY (Typ.) Note.1	90%
	BATTERY TYPES	Open & sealed Lead Acid
BATTERY INPUT PROTECTION	FUSE	40A*6
	BAT. LOW ALARM	22.5V
	BAT. LOW SHUTDOWN	21V
	REVERSE POLARITY	By internal fuse open
OUTPUTPROTECTION	OVER TEMPERATURE	85°C ± 5°C
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
	OUTPUT SHORT	Protection type : Shut down o/p voltage, re-power on to recover
	OVER LOAD (Typ.)	105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
	OVER LOAD (Typ.)	Protection type : Shut down o/p voltage, re-power on to recover
	CIRCUIT BREAKER	AC output: 40A, AC receptacle:15A
	GFCI PROCTECTION	Optional (Only type F)
ENVIRONMENT	WORKING TEMP. Note.1	0~+40°C at 100% load 60°C at 50% load
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30~+70°C / -22~ +158 F, 10~95%RH
	VIBRATION	10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS	UL458 (only for Type G )
	LVD	None
	WITHSTAND VOLTAGE	Bat I/P - AC I/P:3.0KVAC Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
	ISOLATION RESISTANCE	Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25¢J/ 70% RH
	EMC EMISSION	Compliance to FCC class A
	EMC IMMUNITY	None
AC CHARGER	CHARGE CURRENT (Typ.)	12A
AC CHARGER	CHARGE VOLTAGE Note.6	28.5V
SOLAR CHARGER	MAX OPEN CIRCUIT VOLTAGE	45V
SOLAR CHARGER	SHORT CIRCUIT CURRENT (max.)	30A
OTHERS	CONTROL WIRING	RJ11 -RS232 (Option)

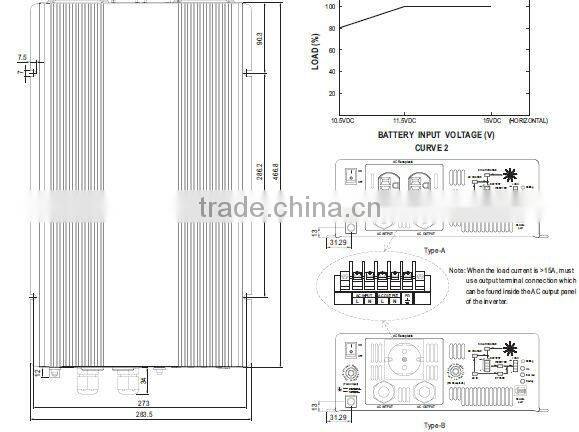

	DIMENSION	466.8283.5100mm (LWH)
	PACKING	12.9Kg; 1pcs/14Kg/1.98CUFT

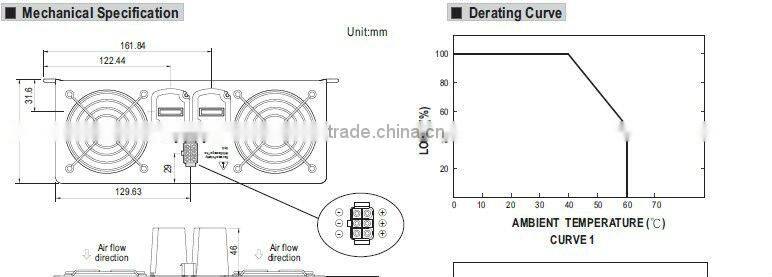

NOTE	1. Efficiency is tested by 2100W, linear load at 13V, 26V, 52V input voltage. 2.Output derating capacity referenced by curve 1. 3.Input derating capacity referenced by curve 2. 4.DC current is tested by 3000W, linear load at 12V, 24V, 48V input voltage. 5.All parameters not specified above are measured at rated load, 25°C of ambient temperature. 6. The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V
