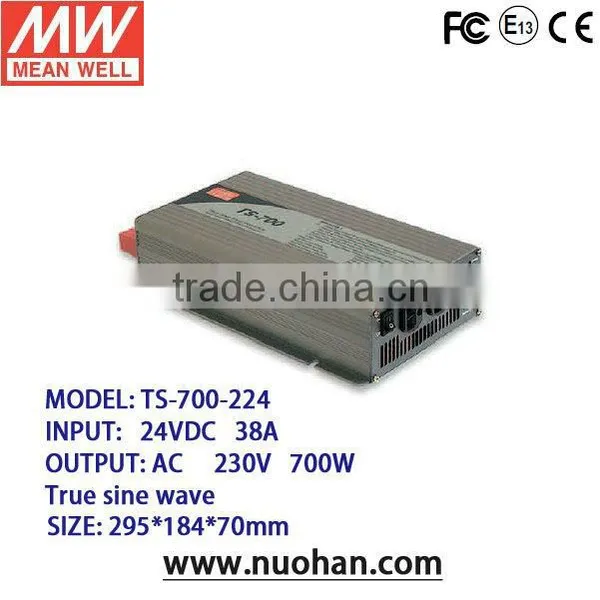

Meanwell 700W Dc-ac Inverter 700W True Sine Wave DC-AC Power Inverte Rwelding dc to ac Power Inverter

Meanwell 700W Dc-ac Inverter 700W True Sine Wave DC-AC Power Inverte Rwelding dc to ac Power Inverter thumbnail-1
Meanwell 700W Dc-ac Inverter 700W True Sine Wave DC-AC Power Inverte Rwelding dc to ac Power Inverter photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mean Well
Model Number:
TS-700-224
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mean Well
Model Number TS-700-224
Output Power Other, 700w
Output Type Single
Size 295*184*70mm (L*W*H)
Weight 3.8kg
Input Voltage 21~ 30VDC
Output Voltage 230v
Type DC/AC Inverters
Output Frequency 47~63Hz
Output Current 38a



Specifications





Meanwell 700W dc-ac inverter 700W True Sine Wave DC-AC Power Inverte rwelding dc to ac power inverter

MODEL

TS-700-224

OUTPUT

RATED POWER

700W

MAXIMUM OUTPUT POWER

800W for 180 sec. / 1050W for 10 sec. / surge power 1400W for 30 cycles

AC VOLTAGE

Factory setting set at 230VAC

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

50 ±0.1Hz   50/60Hz selectable by setting buttonS.W

WAVEFORM

True sine wave (THD<3%) at rated input voltage

AC REGULATION (Typ.)

±3.0%

SAVING MODE (Typ.)

Default disabled. Load≤5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode,

 fault and operation status

INPUT





BAT. VOLTAGE

24V

VOLTAGE RANGE (Typ.)   Note.3,5

21~ 30VDC

DC CURRENT (Typ.)

38A

NO LOAD DISSIPATION

≤6W at standby saving mode

OFF MODE CURRENT DRAW

≤1mA

EFFICIENCY (Typ.)     Note.1

90%

BATTERY TYPES

Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE

30A*2

BAT. LOW ALARM

22.5± 4%

BAT. LOW SHUTDOWN

21± 4%

BAT. POLARITY

By internal fuse open

OUTPUTPROTECTION

OVER TEMPERATURE

75°C ± 5°C

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

None

ENVIRONMENT

WORKING TEMP.   Note.4

0~+40°C at 100% load   +60°C at 50% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

None

LVD

EN60950-1

WITHSTAND VOLTAGE

Bat. I/P - AC O/P:3.0KVAC  AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25¢J/ 70% RH



EMC EMISSION

Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark

EMC IMMUNITY

Compliance to EN61000-4-2,3,8

OTHERS

MTBF

74.4K hrs min.  MIL-HDBK-217F (25°C)

DIMENSION

295*184*70mm (L*W*H)

PACKING

3.8Kg; 2pcs/8.6Kg/1.27CUFT

NOTE

1.Efficiency is tested by 530W, linear load at 13V, 26V, 52V input voltage.

2.All parameters not specified above are measured at rated load, 25°C of ambient temperature.

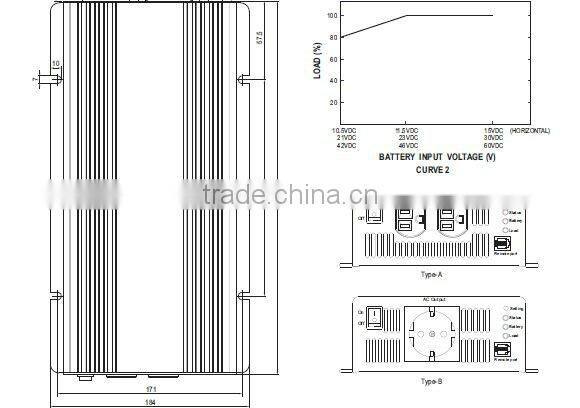

3.Input derating capacity referenced by curve 2.

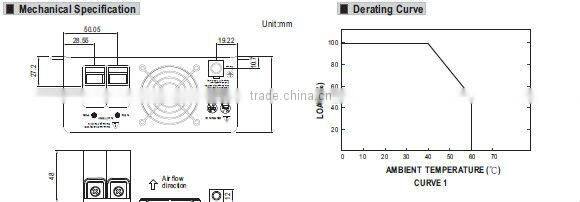

4.Output derating capacity referenced by curve 1.

5.The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V
