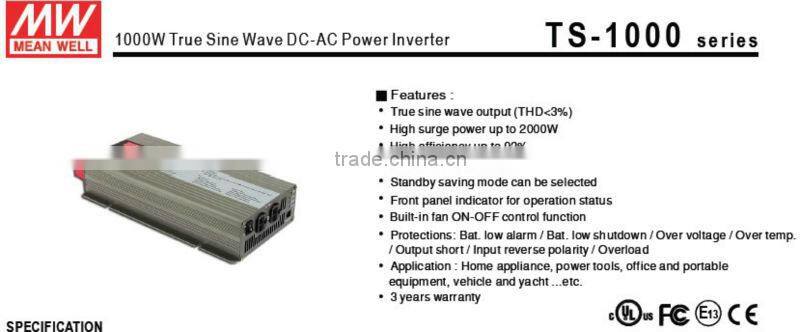

Meanwell 1000W True sine wave DC-AC Power inverter Quality Choice Most Popular

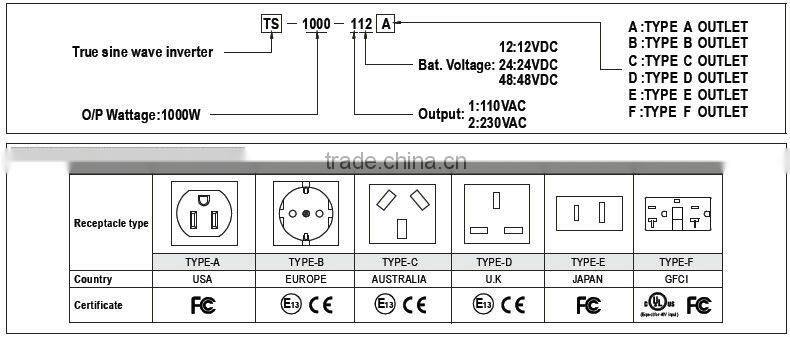

MODEL

TS-1000-112

OUTPUT

RATED POWER

1000W

MAXIMUM OUTPUT POWER

1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles

AC VOLTAGE

Factory setting set at 110VAC

100 / 110 / 115 / 120VAC selectable by setting button

S.W

FREQUENCY

60 ±0.1Hz   50/60Hz selectable by setting buttonS.W

WAVEFORM

True sine wave (THD<3%) at rated input voltage

AC REGULATION (Typ.)

±3.0%

SAVING MODE (Typ.)

Default disabled. Load≤5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode, fault and operation status

INPUT

BAT. VOLTAGE

12V

VOLTAGE RANGE (Typ.)   Note. 4, 6

10.5 ~ 15VDC

DC CURRENT (Typ.)

100A

NO LOAD DISSIPATION

≤6W at standby saving mode

OFF MODE CURRENT DRAW

≤1mA

EFFICIENCY (Typ.)     Note.1

88%

BATTERY TYPES

Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE

40A*4

BAT. LOW ALARM

11.3± 4%

BAT. LOW SHUTDOWN

10.5± 4%

BAT. POLARITY

By internal fuse open

OUTPUTPROTECTION

OVER TEMPERATURE

90°C ± 5°C

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

Optional (Only type F)

ENVIRONMENT

WORKING TEMP.   Note.4

0~+40°C at 100% load   +60°C at 50% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

UL458 (only for "GFCI" receptacle-Type F )

LVD

None

WITHSTAND VOLTAGE

Bat. I/P - AC O/P:3.0KVAC  AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to FCC class A

EMC IMMUNITY

None

OTHERS

MTBF

66.9K hrs min.  MIL-HDBK-217F (25°C)

DIMENSION

345*184*70mm (L*W*H)

PACKING

4.3Kg; 2pcs/9.6Kg/1.16CUFT

COOLING

Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others.

NOTE

1.Efficiency is tested by 750W, linear load at 13V, 26V, 52V input voltage.

2.All parameters not specified above are measured at rated load, 25°C of ambient temperature.

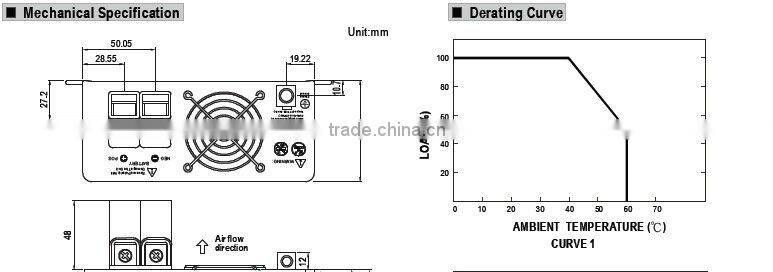

3.Output derating capacity referenced by curve 1.

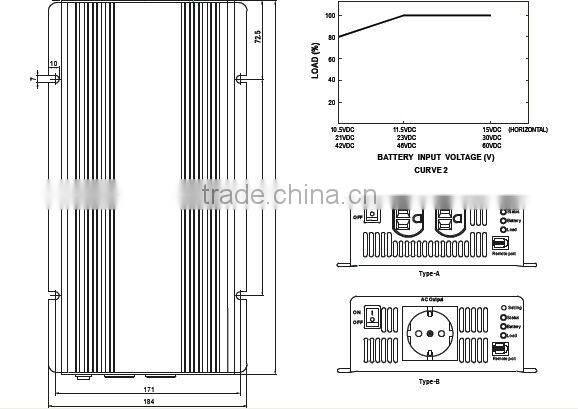

4. Input derating capacity referenced by curve 2.

5.The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V
