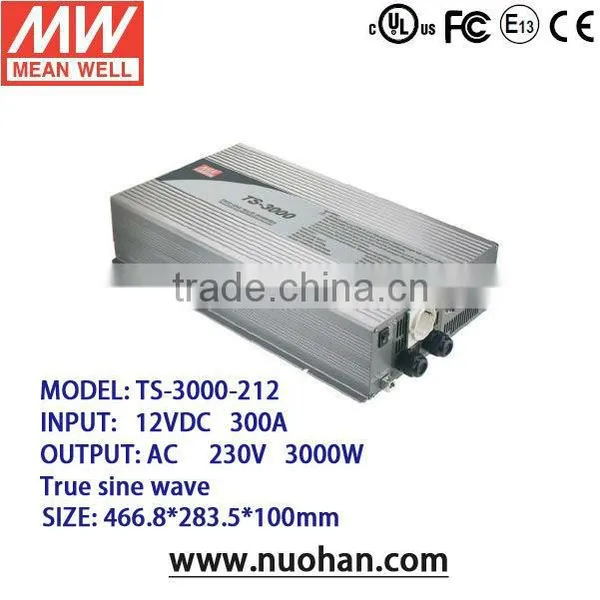

Meanwell High Frequency Inverter/3000W True Sine Wave DC-AC Power Inverter Quality Choice

Meanwell High Frequency Inverter/3000W True Sine Wave DC-AC Power Inverter Quality Choice thumbnail-1
Meanwell High Frequency Inverter/3000W True Sine Wave DC-AC Power Inverter Quality Choice photo-1
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mean Well
Model Number:
TS-3000-212
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mean Well
Model Number TS-3000-212
Output Power Other, 3000w
Output Type Single
Size 466.8*283.5*100mm (L*W*H)
Weight 12.9kg
Input Voltage 10.5 ~ 15VDC
Output Voltage 230v
Type DC/AC Inverters
Output Frequency 47~63Hz
Output Current 300a

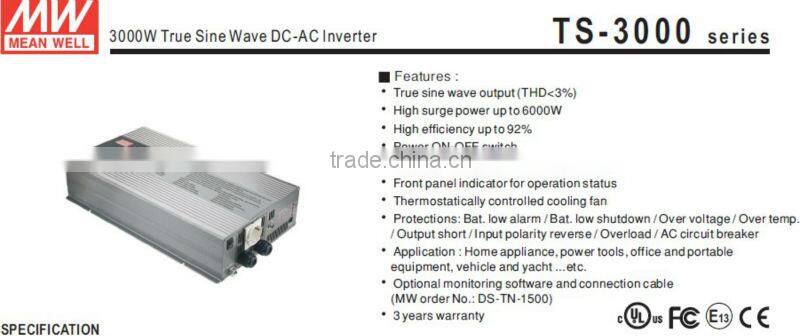

Meanwell high frequency inverter/3000W True Sine Wave DC-AC Power Inverter

MODEL

TS-3000-212

OUTPUT

RATED POWER (Typ.)

3000W

MAXIMUM OUTPUT POWER(Typ.)

3450W for 180 sec. / 4500W for 10 sec. / surge power 6000W for 30 cycles

AC VOLTAGE

Factory setting set at 230VAC

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

50 ±0.1Hz   50/60Hz selectable by setting buttonS.W

WAVEFORM

True sine wave (THD<3%) at rated input voltage

AC REGULATION (Typ.)

±3%

SAVING MODE (Typ.)

Default disabled. Load≤5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode, fault and operation status

INPUT





BAT. VOLTAGE

12V

VOLTAGE RANGE (Typ.)   Note. 3, 6

10.5 ~ 15VDC

DC CURRENT (Typ.)   (Typ.)

300A

NO LOAD DISSIPATION(Typ.)

≤10W at standby saving mode

OFF MODE CURRENT DRAW(Typ.)

≤1mA

EFFICIENCY (Typ.)     Note.1

89%

BATTERY TYPES

Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE

40A*12

BAT. LOW ALARM     Note.6

11.3V

BAT. LOW SHUTDOWN  Note.6

10.5V

BAT. POLARITY

By internal fuse open

OUTPUTPROTECTION

OVER TEMPERATURE

80°C ± 5°C

Protection type : Shut down o/p voltage, re-power on to recover

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

CIRCUIT BREAKER

AC output receptacle:15A

GFCI PROCTECTION

None

ENVIRONMENT

WORKING TEMP.   Note.2

0~+40°C at 100% load   60°C at 50% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

None

LVD

EN60950-1

WITHSTAND VOLTAGE

Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

Bat I/P - AC O/P, Bat I/P - FG,AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH



EMC EMISSION

Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11

OTHERS

CONTROL WIRING

RJ11 -RS232 (Option)

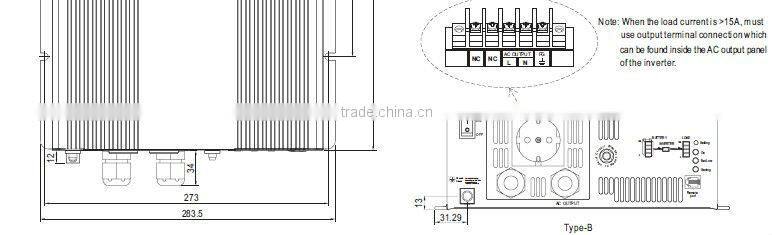

DIMENSION

466.8*283.5*100mm (L*W*H)

PACKING

12.9Kg; 1pcs/14Kg/1.98CUFT

NOTE

1. Efficiency is tested by 2100W, linear load at 13V, 26V, 52V input voltage.

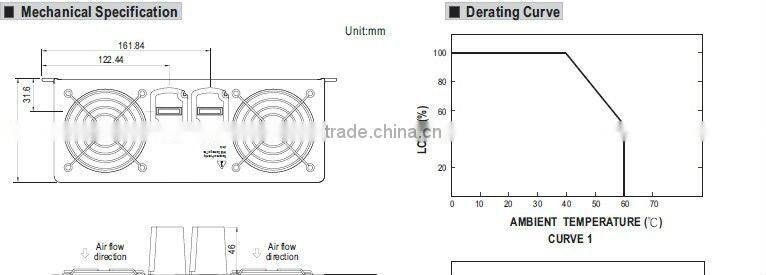

2. Output derating capacity referenced by curve 1.

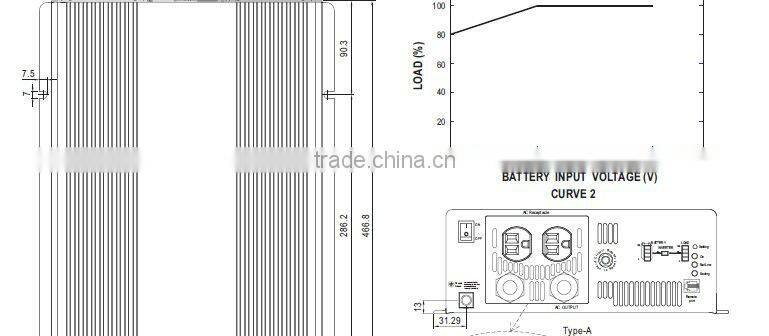

3. Input derating capacity referenced by curve 2.

4. DC current is tested by 3000W, linear load at 12V, 24V, 48V input voltage.

5. All parameters not specified above are measured at rated load, 25°C of ambient temperature.

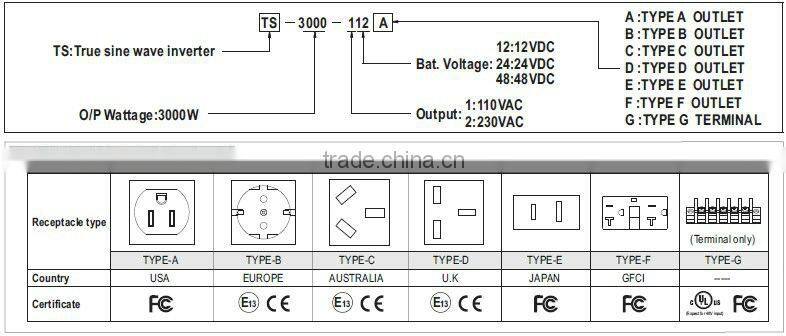

6. The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V





























































































































































Meanwell high frequency inverter/3000W True Sine Wave DC-AC Power InverterMeanwell high frequency inverter/3000W True Sine Wave DC-AC Power InverterMeanwell high frequency inverter/3000W True Sine Wave DC-AC Power Inverter

Meanwell high frequency inverter/3000W True Sine Wave DC-AC Power Inverter
