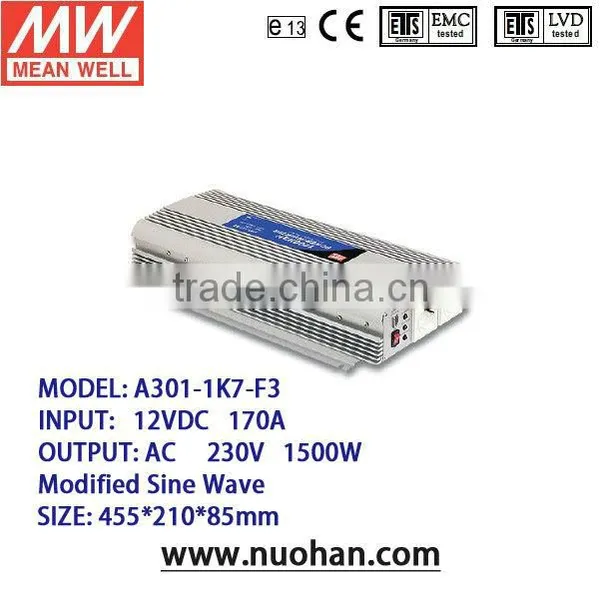

Mean Well 1500w Inverter/1500W Modified Sine Wave DC-AC Power Inverter/1500w Switching Power Supply

Mean Well 1500w Inverter/1500W Modified Sine Wave DC-AC Power Inverter/1500w Switching Power Supply thumbnail-1
Mean Well 1500w Inverter/1500W Modified Sine Wave DC-AC Power Inverter/1500w Switching Power Supply photo-1
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mean Well
Model Number:
A301-1K7-F3
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mean Well
Model Number A301-1K7-F3
Output Power Other, 1500w
Output Type Single
Size 455*210*85mm (L*W*H)
Weight 5.5kg
Input Voltage 10 ~ 15VDC
Output Voltage 230v
Type DC/AC Inverters
Output Frequency 47~63Hz
Output Current 170a

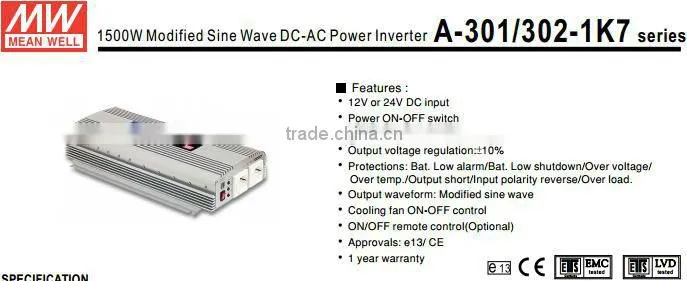

 Mean Well 1500w inverter/1500W Modified Sine Wave DC-AC Power Inverter/1500w switching power supply

ORDER NO.

A301-1K7-F3











OUTPUT

SAFETY MODEL NO

A-1700W

AC  VOLTAGE

230V

RATED  POWER

1500W

PEAK POWER

1700W 30min

SURGE POWER.)

3000W

WAVEFORM

Modified Sine Wave

FREQUENCY

50Hz 1%

AC REGULATION

±10%

STANDARD RECEPTACLES

TYPE-3* 2ea

LED INDICATOR

Green LED for power on; Red LED for power failure status





INPUT

DC CURRENT

170A

NO LOAD CURRENT DRAW

0.6A

DC VOLTAGE

12V

VOLTAGE RANGE

10 ~ 15VDC

EFFICIENCY (Typ.)

82%

DC CONNECTOR

1000mm R type terminal

FUSE

30A*10







PROTECTION

BAT. LOW ALARM

10 ±0.5V

BAT. LOW SHUTDOWN

9.5± 0.5V

OVER LOAD

>1700W shut down o/p voltage, re-power on to recover

OVER VOLTAGE

15 ~ 16V

OVER TEMPERATURE

60± 5°C / 140 ±9 F

OUTPUT SHORT

Shut-off

BAT. POLARITY

By fuse open



ENVIRONMENT

WORKING TEMP.

0~+30°C @ 100% load, 40 @70% load

WORKING HUMIDITY

20~90% RH non-condensing

STORAGETEMP.,HUMIDITY

-30~+70°C/ -22 ~ +158 F, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.05%/°C (0~50°C)





SAFETY &

EMC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH

EMI CONDUCTION & RADIATION

Compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE

EMC IMMUNITY

Compliance to EN61000-4-2,3

LVD

Compliance to EN60950



OTHERS



MTBF

 86852Khrs min.      MIL-HDBK-217F (25°C)

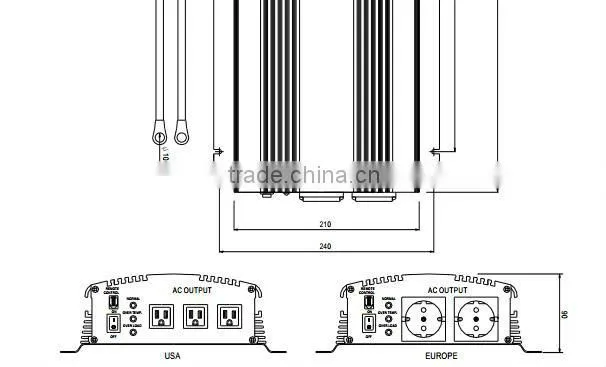

DIMENSION

455*210*85mm (L*W*H)

PACKING

 5.5kg; 3pcs / 19.6kg / CARTON

COOLING

>40 (NTC) fan on

APPLICATIONS

Home appliance, Power tools, Office and Portable equipment and

Vehicle ...etc
