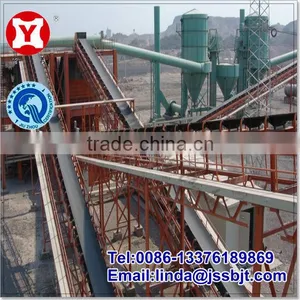

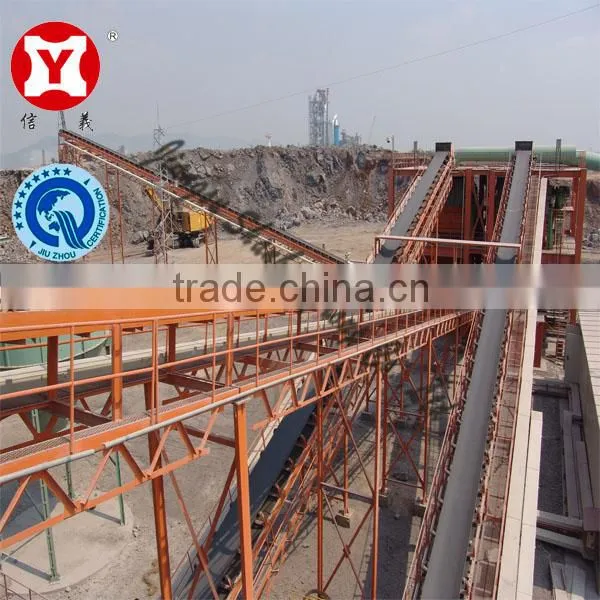

Conveyor Belt
Model STDJ adhesive tape conveyor
It has the feature of larger conveying quantity, simple structure, easy maintenance, standardized component etc. it is widely used in the industries of mine, metallurgy and coal for material or finished product conveyance. at the request of the technology, the conveyance may be conducted by a single machine or by multiple machines or forming a level or tipsy conveying system in combination with other conveyance equipment, so as to meet the different requirement of production line.
Principal technical data
|
Belt length(m)/ power(k w) |
Belt speed(m/s) |
Capacity(t/y) |
||
400 |
≤12/1.5-2.2 |
12-20/2.2-4 |
20-25/3-7.5 |
1.3-1.6 |
40-80 |
500 |
≤12/1.5-3 |
12-20/2.2-5.5 |
20-30/3-7.5 |
1.3-1.6 |
60-156 |
650 |
≤12/1.5-4 |
12-20/2.2-7.5 |
20-30/4-11 |
1.3-1.6 |
110-264 |
800 |
≤6/1.5-4 |
6-15/2.2-7.5 |
15-30/4-15 |
1.3-1.6 |
184-445 |
1000 |
≤10/2.2-5.5 |
10-20/4-15 |
20-40/7.5-37 |
1.3-2.0 |
288-696 |
1200 |
≤10/3-7.5 |
10-20/4-15 |
20-40/7.5-45 |
1.3-2.0 |
432-1048 |
1400 |
≤10/3-11 |
10-20/4-18.8 |
20-40/7.5-55 |
1.3-2.0 |
588-1427 |
1600 |
≤10/3-15 |
10-20/5.5-22 |
20-40/7.5-75 |
1.3-2.0 |
700-1850 |
Note:1.the conveyance quantity in the figure is acquired under the condition that the material is 1.0t/m³-1.6t/m³,the conveyor angle is ≤18°,and the material piling angle is 30°
2.the density of the conveyable material is below 2.5t/m³
3.the conveyance length is not limited to the value listed in the figure, and may be designed as ordered by the user
