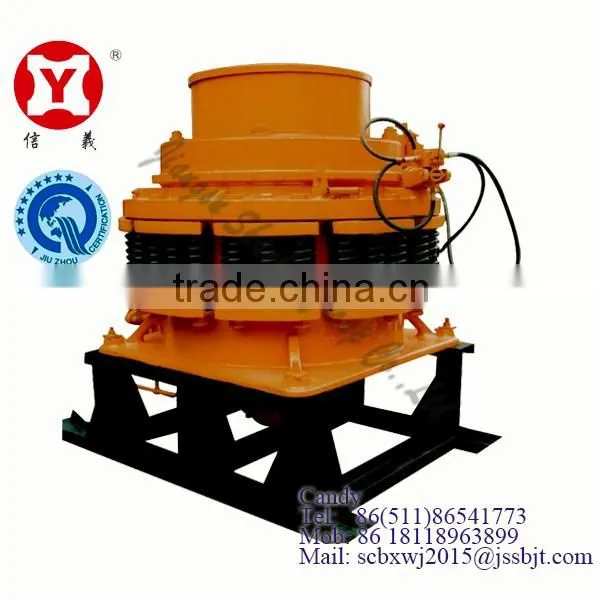

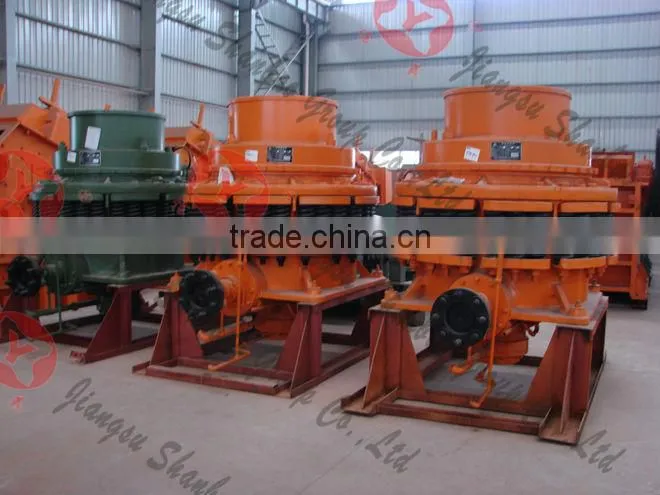

symons crusher PYB1200
1.Application
The crusher of this series is suitable for crushing various of mid-hard and above mid-hard ores and rocks. This crusher has the advantage of reliable construction, high productivity, easy adjustment and less cost in operation. The spring release system of crusher acts an overload protection system that allows tramp to pass through the crushing chamber without damage to the crusher, use separate, assuring reliable performance The type of crushing chamber depends upon the size of feed and fineness of the crusher product. The standard type is applied to medium crushing, the medium types is applied to medium or fine crushing and the short head is applied to fine crushing.
2. Operating Principle
Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped
bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
pricipal technical data
| Model | Max. size of Feed Material (mm) | Adustable Range of Discharge Opening (mm) | Producing Capacity (t/h) | Electric Motor Power (kw) |
Weight(t) (excluding electric motor) |
| PYB1200 | 145 | 20-50 | 110-168 | 110 | 24.7 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | |
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | |
| PYB1200Ⅱ | 145 | 20-50 | 110-168 | 110 | 24.7 |
| PYD1200Ⅱ | 50 | 3-15 | 17-105 | 25.3 |
