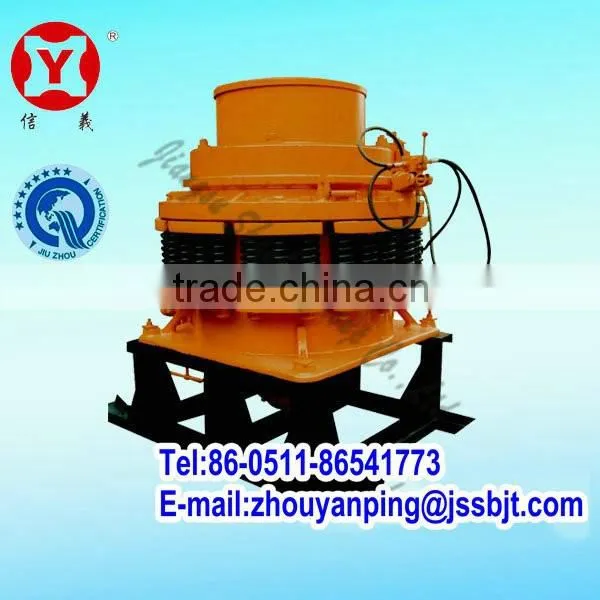

Cone crusher
1. Main use
This machine has compact structure and high production efficiency. It applies bowl bearings and has higher accuracy storage; besides, it adopts a centralized lubrication system and a novel oil seals dust control system. The hydraulic cylinder or hand-driven winch can be used adjust the size of discharge opening. When materials which cannot be crushed enter the crushing chamber, spring safety device can protect the equipment from being damaged.
The series crushers are generally used for secondary or third-stage crushing. They are suitable for the crush of various ore and rock whose hardness is moderate, such as iron ore, copper ore, limestone, quartz, granite, sandstone and so on. The standard type is applies to the moderate crushing, the middle type and short type and both suitable for fine crushing; they are widely used in materials, water conservancy, chemical industry, and other fields.
2. Advantages
a. Big ratio of crushing
b. Fine granularity of the materials
c. Easy and fast to adjust the discharge opening
d. Anti-iron overload protection
e. Uniform wear of the rolling ace tabular and long service lifetime
f. Lower maintenance cost of products
g. Adopting two seal forms such as dry oil or water
h. Stable operation and high reliability of products
The processing capabilities listed in the form shall vary according to different working conditions.
3. Main technical data
| Model | Max. size of Feed Material (mm) | Adustable Range of Discharge Opening (mm) | Producing Capacity (t/h) | Electric Motor Power (kw) | Weight(t) (excluding electric motor) |
| PYB600 | 65 | 12-25 | 25-40 | 30 | 5.3 |
| PYD600 | 35 | 3-15 | 12-23 | 5.3 | |
| PYB900 | 115 | 15-50 | 50-90 | 55 | 11.2 |
| PYD900 | 40 | 3-13 | 14-50 | 11.3 | |
| PYZ900 | 60 | 5-20 | 50-65 | 11.2 | |
| PYB900Ⅱ | 115 | 15-50 | 49-85 | 55 | 11.2 |
| PYD900Ⅱ | 40 | 3-13 | 14-50 | 11.3 | |
| PYZ900Ⅱ | 60 | 5-35 | 20-65 | 11.2 | |
| PYB1200 | 145 | 20-50 | 110-168 | 110 | 24.7 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | |
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | |
| PYB1200Ⅱ | 145 | 20-50 | 110-168 | 110 | 24.7 |
| PYD1200Ⅱ | 50 | 3-15 | 17-105 | 25.3 | |
| PYB1750 | 215 | 25-60 | 280-480 | 155 | 50.3 |
| PYZ1750 | 185 | 10-30 | 115-320 | 50.3 | |
| PYD1750 | 85 | 5-15 | 75-230 | 50.2 | |
| PYB1750Ⅱ | 215 | 25-60 | 280-480 | 155 | 50.3 |
| PYD1750Ⅱ | 85 | 5-15 | 75-230 | 50.2 | |
| PYB2200Ⅱ | 300 | 30-60 | 590-1000 | 280 | 83.1 |
| PYD2200Ⅱ | 100 | 5-15 | 120-340 | 83.5 |
