Compoud Cone Crusher Manufacturer

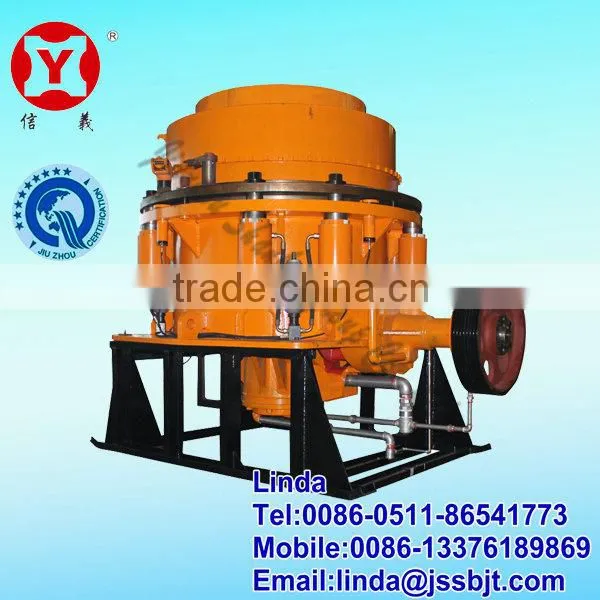

Compoud Cone Crusher Manufacturer thumbnail-1
Compoud Cone Crusher Manufacturer photo-1
US$ 99 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
widely used in metallurgical industry, building materials industry, ro, hard ores and rocks
Contact Supplier Request Quote Chat Now
Jiangsu Shanbao Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Cone Crusher
Application widely used in metallurgical industry, building materials industry, ro, hard ores and rocks
Motor Type AC Motor
Power(W) 75-400kw
Capacity(t/h) 27-1941 T/H
Place of Origin Shanghai, China
Brand Name Xinyi
Model Number PFYB/PFYD
Weight 12.2-95.4 t
Certification ISO9001:2008
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas

Compound Cone Crusher



1. Usage and Application



The cone crusher of PYF series, widely used in metallurgical industry, building materials industry, road building industry, chemical industry and industrial acid, applied to middle-and middle-broken over the hardness of ore and rock, this machine has broken force, high efficiency , high capacity, low cost movements, to facilitate adjustment, the use of economic, and other characteristics.



 2. Features



(1) Long service life

(2) Broken uniform size

(3) Reduces the load cycle (1) reducing downtime, and each specification of the cavity-breakers



3. Working Principle.



The use of grease-sealed sealed to prevent the water supply and drainage systems easy to plug the shortcomings of the oil-water mixture and the shortcomings, the insurance system is the spring overload device, a foreign body, broken through the iron cavity without endangering crusher. The plane is divided into standard and short-head, in general, the standard size-feeding, nesting size also coarse, short-head over the steep broken cone, feeding small size is conducive to production of fine-grained Grade materials, the standard generally used for rough, broken, short for the first type, grinding.



Technical Data:



Type Model Chamber Type       (mm) C.S.S (mm) Max. Feeding (mm) Capacity (t/h) Weight(t)(excluding electric motor)
 		Electric Motor Power  (k w)
PFY900 PFYB-0910V STD F 9-22 102 45-91 12.4 75
PFYB-0917V STD C 13-38 175 59-163 12.2
PFYB-0918V STD EC 25-51 178 128-196 12.2
PFYD-0904V SH F 3-13 41 27-90 13.2
PFYD-0906V SH M 3-16 60 27-100 13.3
PFYD-0907V SH C 6-19 76 59-127 13.3
PFY1300 PFYB-1313V STD F 13-31 137 109-181 21.5 160
PFYB-1321V STD M 16-51 210 132-309 21.2
PFYB-1324V STD C 19-51 241 172-378 21.2
PFYB-1325V STD EC 25-64 259 236-455 21.1
PFYD-1308V SH M 6-16 89 82-163 20.6
PFYD-1310V SH C 10-25 105 109-227 20.7
PFYD-1313V SH EC 19-25 133 209-236 20.8
PFY1600 PFYB-1620V STD F 16-38 209 181-327 37 250
PFYB-1624V STD M 22-51 241 258-437 36.7
PFYB-1626V STD C 25-64 269 354-610 36.5
PFYB-1636V STD EC 38-64 368 538-743 36.3
PFYD-1607V SH F 5-13 70 90-209 36.7
PFYD-1608V SH M 6-19 89 136-281 36.5
PFYD-1613V SH C 10-25 113 190-336 36.5
PFYD-1614V SH EC 13-25 133 253-336 36.3
PFY2100 PFYB-2127V STD F 19-64 278 554-1034 94.3 400
PFYB-2133V STD M 25-76 334 862-1424 94.5
PFYB-2136V STD C 31-89 369 1125-1814 94.5
PFYB-2146V STD EC 38-102 460 1252-1941 92.5
PFYD-2110V SH F 5-25 105 218-463 95.4
PFYD-2113V SH M 10-29 133 404-580 95.2
PFYD-2117V SH C 13-32 178 517-680 95.1
PFYD-2120V SH EC 16-38 203 580-744 93.8





 Note:

STD F—Standard fine               SH F—Short head fine

STD M—Standard medium           SH M—Short head medium

STD C—Standard coarse             SH C—Short head coarse

STD EC—Standard extra coarse      SH EC—Short head extra coarse

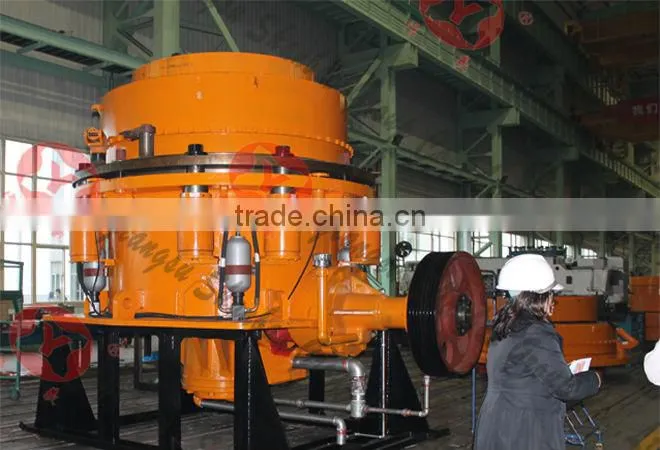

Compoud cone crusher manufacturer
