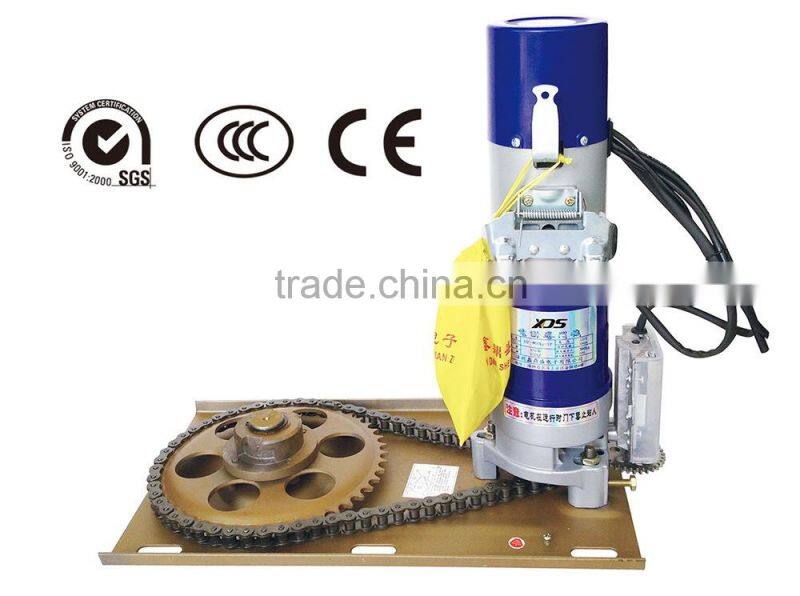

AC DC Gear Rolling Shutter Side Motor
- XIAMEN
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | XDS | |
| Model Number | XDS-1P-600 |
Product Description
Introduction of our company
We are professional rolling shutter side motor manufacturer with more than 12 years' experience. There is no question that we are the one who have the seniority and authority in rolling shutter side motor industry. We believe that we can make the most suitable rolling shutter motor for you. The following are what we can provide:
- manufacture AC, DC and AC&DC gear rolling shutter side motor.
- our rolling shutter side motors can hold 300-2000kg.
- 110V/220V/380V are available for gear rolling shutter side motor.
- with four relays inside to make sure our rolling shutter side motor can save more power.
- 100% copper material inside the shutter side motor, so it has a larger capacity and it's more durable than other motors.
- Now we have the following functions: infrared sensor, ups, rebound automatic when meet obstacle, alarm function, lighting and so on…
- If you want to make your own design, we can provide OEM service.

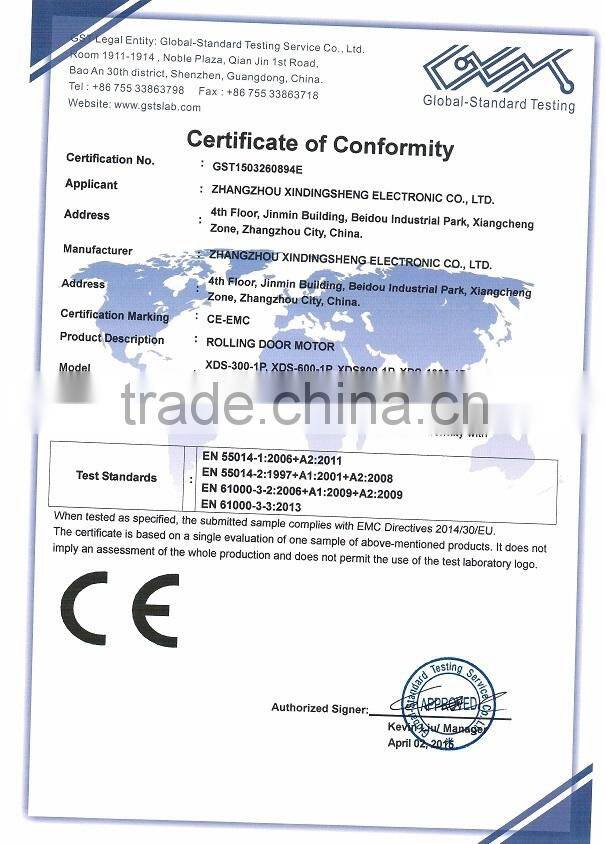

- our gear rolling shutter side motor has got CE, CCC, SGS, ROHS certificates. High quality has been confirmed.

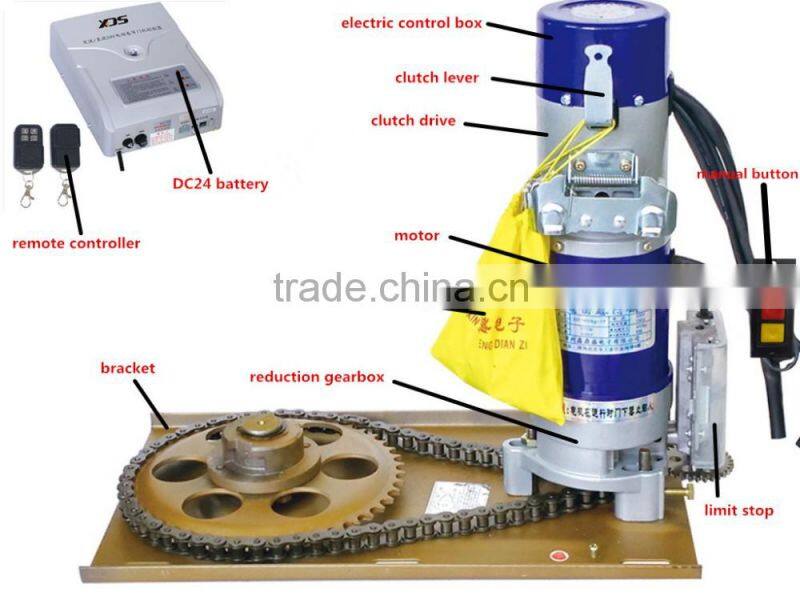

Description for Gear Rolling Shutter Side Motor
*Can also be used when the power was cut off. The rolling shutter side motor can run at least 20 times without normal power supply.
*Notice: Please read the instructions carefully before installation.
We have many new patent technologies for gear rolling shutter side motor. And our products have better outstanding performance and it's much easier to install. What's more, it can be more reliable.
1.100% copper material inside gear rolling shutter side motor.
2.Transmission mechanism has reasonable design, advanced technology and specially developed grease. The gear is not easy to wear. It's durable, low noise and small shaking.
3.Protective measures : Placed inside the motor overheat protector, overheating protection function.

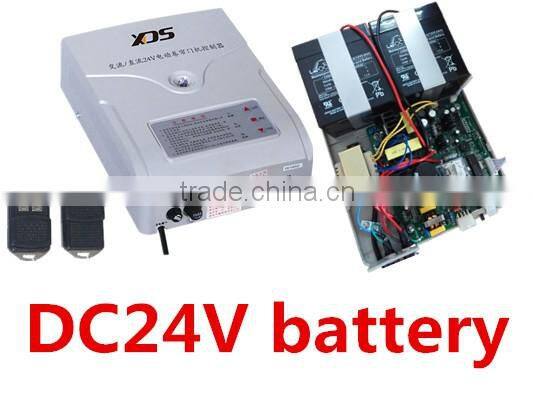

4.Battery backup (UPS) is the market used batteries for universal product (4.5 Ah / 12v); safe voltage: 24V.
5.It is available to match with Storage power(Battery)DC operation, in the case without electricity. AC&DC drive the sliding gate motor can run more than 20 times.
6.AC&DC motor with low voltage and strong power. Adopt the machine limit device, simple adjusting and sensitive location controller. Adopt currency power in regular state. Auto turn to battery supply while the power is broken.
7. Can add wireless door magnetic and buzzer, realize alarm function.
MainTechnical Parameters for Gear Rolling Shutter Side Motor
Type | Power source | Rated frequency | Rated Power (W) | Rate Load | Output rotate speed (R/.MIN) | Max raising height (M) | Short-team ration (MIN) | ||||||||||
Rated current (A) | Lifting Force (KG) | Output torque (N.M) | |||||||||||||||
Single phase rolling shutter side motor technical | |||||||||||||||||
XDS-1P-300 | 220V | 50Hz | 180 | 2.5 | 300 | 168 | 5.0 | 6.0 | 6 | ||||||||
XDS-1P-400 | 220V | 50Hz | 250 | 2.7 | 400 | 225 | 5.0 | 6.0 | 6 | ||||||||
XDS-1P-500 | 220V | 50Hz | 370 | 2.9 | 500 | 345 | 5.0 | 6.0 | 6 | ||||||||
XDS-1P-600 | 220V | 50Hz | 370 | 3.0 | 600 | 412 | 5.0 | 10.0 | 6 | ||||||||
XDS-1P-800 | 220V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 10.0 | 6 | ||||||||
XDS-1P-1000 | 220V | 50Hz | 400 | 4.7 | 1000 | 810 | 4.6 | 10.0 | 6 | ||||||||
Three phase rolling shutter side motor technical | |||||||||||||||||
XDS-3P-300 | 380V | 50Hz | 180 | 0.8 | 300 | 168 | 5.2 | 6.0 | 10 | ||||||||
XDS-3P-500 | 380V | 50Hz | 250 | 1.0 | 500 | 345 | 5.2 | 6.0 | 10 | ||||||||
XDS-3P-600 | 380V | 50Hz | 250 | 1.0 | 600 | 412 | 5.2 | 6.0 | 10 | ||||||||
XDS-3P- 800 | 380V | 50Hz | 400 | 1.1 | 800 | 647 | 4.6 | 10.0 | 10 | ||||||||
XDS-3P-1000 | 380V | 50Hz | 400 | 1.5 | 1000 | 810 | 4.2 | 10.0 | 10 | ||||||||
XDS-3P-1300 | 380V | 50Hz | 600 | 2.0 | 1300 | 1050 | 4.2 | 13.0 | 10 | ||||||||
XDS-3P-1500 | 380V | 50Hz | 600 | 2.5 | 1500 | 1520 | 4.2 | 13.0 | 10 | ||||||||
XDS-3P-2000 | 380V | 50Hz | 750 | 4.5 | 2000 | 2450 | 3.6 | 13.0 | 10 | ||||||||

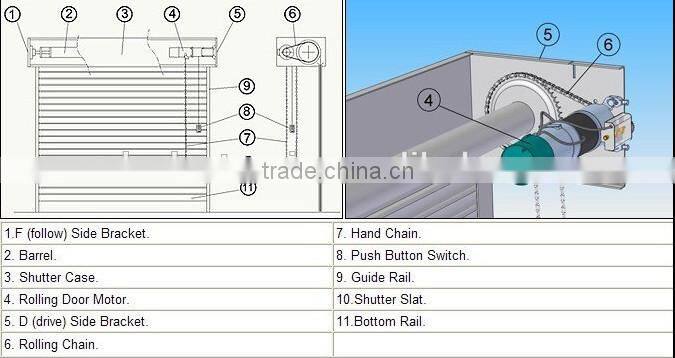

How to install gear rolling shutter side motor?

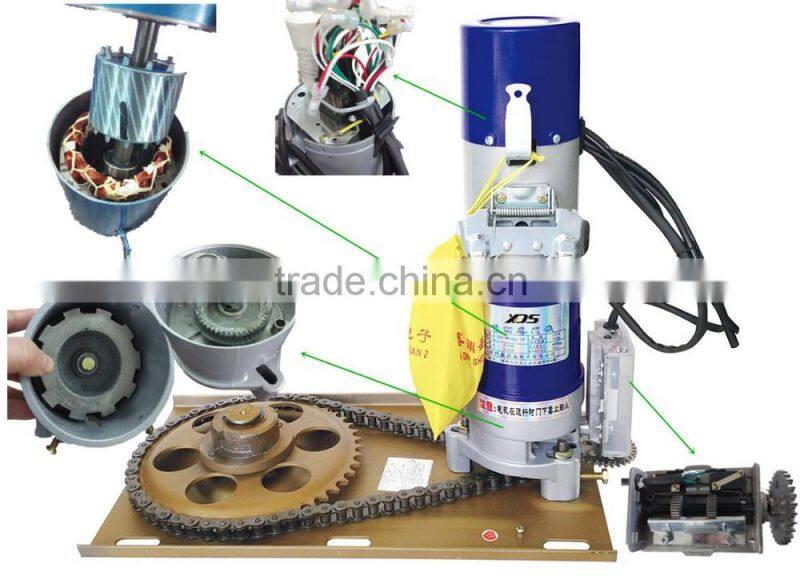

How we make a rolling shutter side motor?

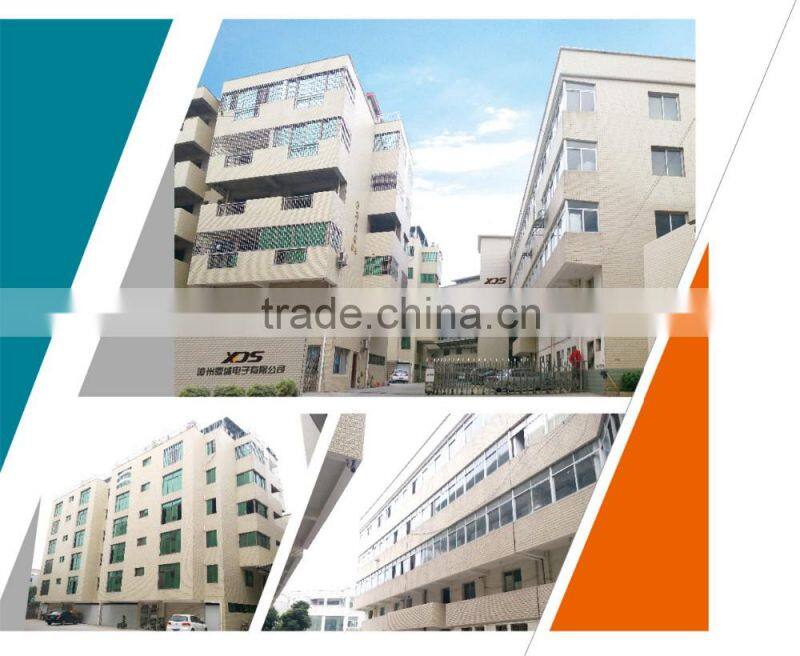

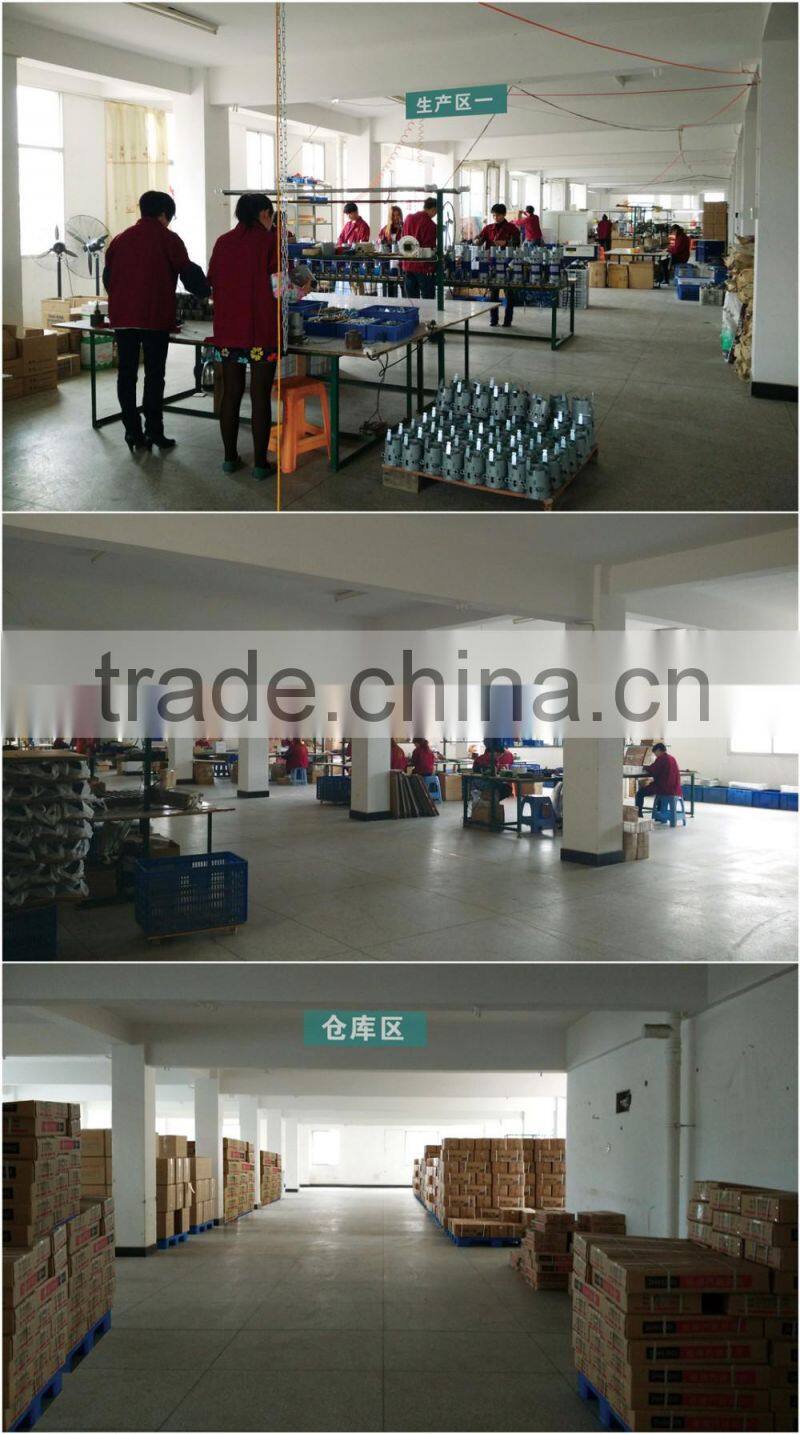

Now show you our workshop & factory ^.^
- OEM: we can open new mould according to original sample or technical drawings.
- Price: competitive and best EXW price. (The more you order, the lower the will be).
- Warranty: one year!!
- Aftersale: we promise to provide the most professinal asftersale service for gear rolling shutter side motor.
Thank you for your time to scan our website. Hope you have got more infomation about our rolling shutter side motor and our company. We warmly welcome you to visit us and hope we can built business realtionship with you in the near future. Please feel free to contact us.
