We are professional automatic rolling door closer machine manufacturer with more than 12 years' experience. There is no question that we are the one who have the seniority and authority in automatic rolling door closer machine industry. We believe that we can make the most suitable products for you. The following are what we can provide:
- manufacture AC, DC and AC&DC automatic rolling door closer machine.
- The automatic rolling door closer machine can hold 300-2000kg.
- 110V/220V/380V are available for our automatic rolling door closer machine.
- with four relays inside to make sure our automatic rolling door closer machine can save more power.
- 100% copper material inside the motor, so it has a larger capacity and it's more durable than other motors.
- Now we have the following functions: infrared sensor, ups, rebound automatic when meet obstacle, alarm function, lighting and so on…
- If you want to make your own design, we can provide OEM service.
- our automatic rolling door closer machine has got CE, CCC, SGS, ROHS certificates. High quality has been confirmed.
Description for Automatic Rolling Door Closer Machine
1.Powerful starting strength, loading up to 1500kg
2.Available in both single phase and 3-phase (FP-500-3P,FP-600-3P,FP-800-3P,FP-1000-3P,FP-1300-3P)
3.Overworking for a short time
4.Overheat protection: if the temperature inside the motor is over 110℃, it stops working automatically. And it can work again if temperature returns to <70 ℃.
5.Limit switch enables precise adjustment in up and down positions
6.Electric and manual operations
7.Release chain in case of power failure
8.When the roller chain is break off, the safety lock device can protect vehicle or people from danger.
Main Specifications FOR Automatic Rolling Door Closer Machine
Model |
Lifting force (kg) |
Max lifting height (m) |
Power (W) |
Current (A) |
Output torque (Nm)
|
Output turn speed (r/min) |
Chain No. |
Weight of host motor (kg) |
Single phase fireproof rolling door closer | ||||||||
XDS-FP-1P-300 |
300 |
7.5 |
250 |
3.3 |
168 |
5.2 |
08B |
11.6 |
XDS-FP-1P-500 |
500 |
8 |
370 |
3.9 |
343 |
6.2 |
10A |
12.3 |
XDS-FP-1P-600 |
600 |
8 |
370 |
3.9 |
412 |
5.2 |
10A |
12.6 |
XDS-FP-1P-800 |
800 |
8.5 |
400 |
4.5 |
607 |
3.4 |
10A |
15.5 |
Three phase fireproof rolling door closer | |||||||
Type |
Rated Power (W) |
Rate Load |
Max raising height (M) |
Rolling door maximum overall (m) |
Chain number |
||
Lifting Force (KG) |
Output torque (N.M) |
Output rotate speed(R/.MIN) |
|||||
XDS-FP-3P-(1500Kg) |
800 |
1500 |
1220 |
3.8 |
13 |
0.65 |
12A |
XDS-FP-3P-(1300Kg) |
600 |
1300 |
1050 |
4.2 |
13 |
0.65 |
12A |
XDS-FP-3P-(1000Kg) |
400 |
1000 |
810 |
4.2 |
10 |
0.65 |
12A |
XDS-FP-3P-(800Kg) |
300 |
800 |
650 |
3.4 |
10 |
0.54 |
10A |
XDS-FP-3P-(600Kg) |
250 |
600 |
412 |
3.4 |
6 |
0.48 |
10A |
Installation

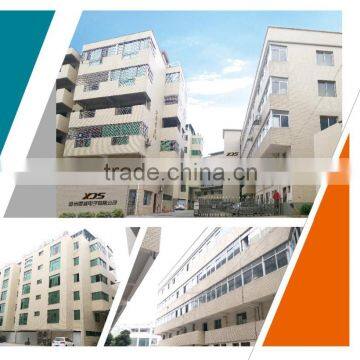

Now show you our workshop & factory ^.^
Why Choose US?
- OEM: we can open new mould according to original sample or technical drawings.
- Price: competitive and best EXW price. (The more you order, the lower the will be).
- Warranty: one year!!
- Aftersale: we promise to provide the most professinal asftersale service for our automatic rolling door closer machine.
Thank you for your time to scan our website. Hope you have got more infomation about our automatic rolling door closer machine and our company. We warmly welcome you to visit us and hope we can built business realtionship with you in the near future. Please feel free to contact us.
