Wifi Remote Garage Gate Opener

FOB Price

US$ 50 - 200 / Set

100 Sets(Min. Order)

Port XIAMEN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	XDS
Model Number	XDS-FP-1000-3P

Product Description

Company Information

Introduction of our company

We are professional wifi remote garage gate opener manufacturer with more than 12 years' experience. There is no question that we are the one who have the seniority and authority in garage opener industry. We believe that we can make the most suitable products for you. The following are what we can provide:

manufacture AC, DC and AC&DC wifi gate opener .
The remote gate opener can hold 300-2000kg.
110V/220V/380V are available for our garage gate opener.
with four relays inside to make sure our garage opener can save more power.
100% copper material inside the motor, so it has a larger capacity and it's more durable than other motors.
Now we have the following functions: infrared sensor, ups, rebound automatic when meet obstacle, alarm function, lighting and so on…
If you want to make your own design, we can provide OEM service.
our remote gate opener has got CE, CCC, SGS, ROHS certificates. High quality has been confirmed.

Product Description

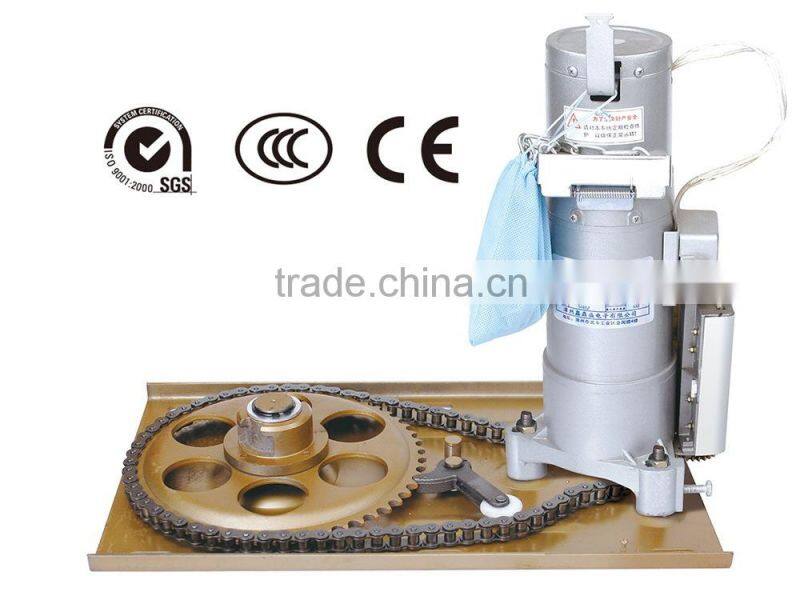

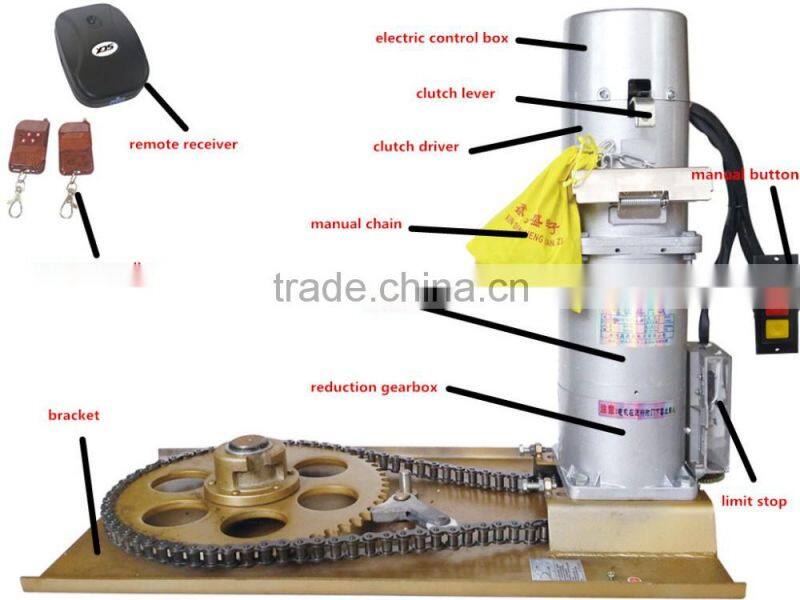

Description for Wifi Remote Garage Gate Opener

1.Powerful starting strength, loading up to 1500kg
2.Available in 3-phase (FP-500-3P,FP-600-3P,FP-800-3P,FP-1000-3P,FP-1300-3P)
3.Overworking for a short time
4.Overheat protection: if the temperature inside the motor is over 110℃, it stops working automatically. And it can work again if temperature returns to <70 ℃.

5.Limit switch enables precise adjustment in up and down positions
6.Electric and manual operations
7.Release chain in case of power failure

8.When the roller chain is break off, the safety lock device can protect vehicle or people from danger.

Our wifi remote garage gate opener comes with high quality and has good preformance!!!

Technical for Wifi Remote Garage Gate Opener

Model	Lifting force (kg)	Max lifting height (m)	Power (W)	Current (A)	Output torque (Nm)	Output turn speed (r/min)	Chain No.	Weight of host motor (kg)
Single phase wifi garage gate opener
XDS-FP-1P-300	300	7.5	250	3.3	168	5.2	08B	11.6
XDS-FP-1P-500	500	8	370	3.9	343	6.2	10A	12.3
XDS-FP-1P-600	600	8	370	3.9	412	5.2	10A	12.6
XDS-FP-1P-800	800	8.5	400	4.5	607	3.4	10A	15.5

Three phase wifi garage gate opener
Type	Rated Power (W)	Rate Load			Max raising height (M)	Rolling door maximum overall (m)	Chain number
Type	Rated Power (W)	Lifting Force (KG)	Output torque (N.M)	Output rotate speed(R/.MIN)	Max raising height (M)	Rolling door maximum overall (m)	Chain number
XDS-FP-3P-(1500Kg)	800	1500	1220	3.8	13	0.65	12A
XDS-FP-3P-(1300Kg)	600	1300	1050	4.2	13	0.65	12A
XDS-FP-3P-(1000Kg)	400	1000	810	4.2	10	0.65	12A
XDS-FP-3P-(800Kg)	300	800	650	3.4	10	0.54	10A
XDS-FP-3P-(600Kg)	250	600	412	3.4	6	0.48	10A

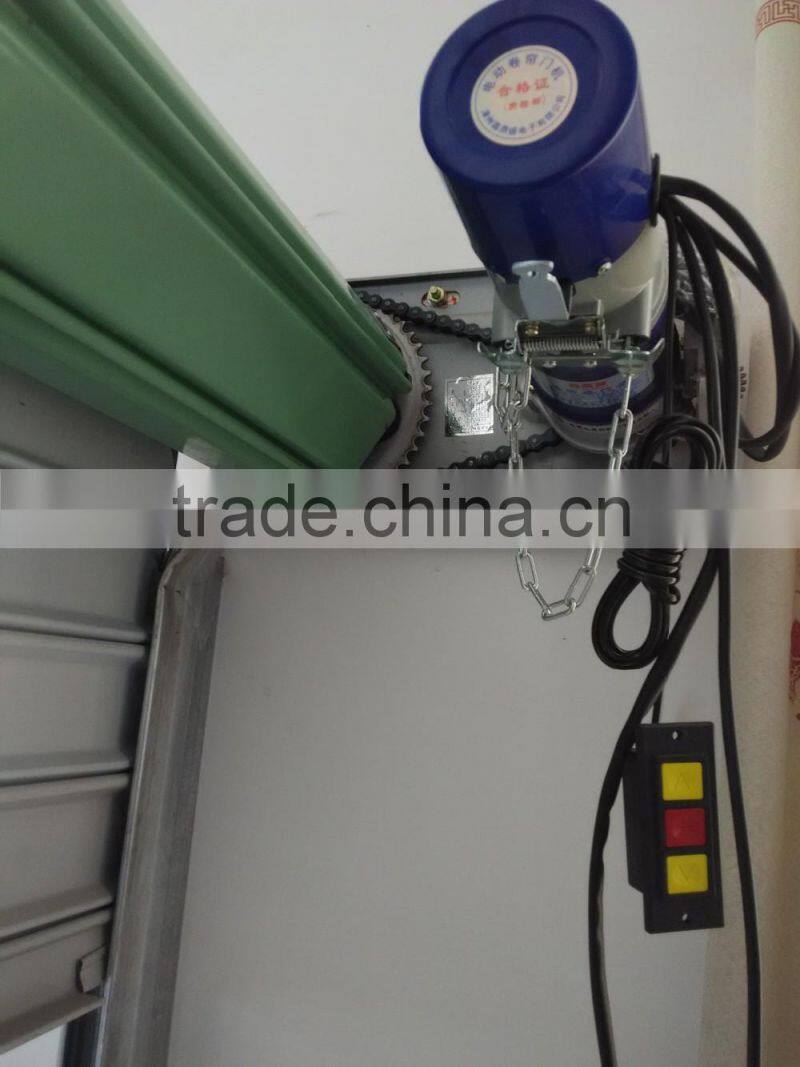

How to install a garage gate opener?

Certification for our remote gate opener!

How to make a wifi gate opener?

Now show you our workshop & factory ^.^

Packaging & Shipping

Our Services

Why Choose US?

OEM: we can open new mould according to original sample or technical drawings.
Price: competitive and best EXW price. (The more you order, the lower the will be).
Warranty: one year for our automatic garage opener!!
Aftersale: we promise to provide the most professinal asftersale service for our wifi remote garage gate opener
.
