Introduction of our company
We are professional industrial electric rolling door motor manufacturer with more than 12 years' experience. There is no question that we are the one who have the seniority and authority in electric rolling door motor industry. We believe that we can make the most suitable products for you. The following are what we can provide:
- manufacture AC, DC and AC&DC industrial electric rolling door motor .
- The industrial electric rolling door motor can hold 300-2000kg.
- 110V/220V/380V are available for our industrial electric rolling door motor.
- with four relays inside to make sure our industrial electric rolling door motor can save more power.
- 100% copper material inside the motor, so it has a larger capacity and it's more durable than other motors.
- Now we have the following functions: infrared sensor, ups, rebound automatic when meet obstacle, alarm function, lighting and so on…
- If you want to make your own design, we can provide OEM service.
- our electric rolling door motor has got CE, CCC, SGS, ROHS certificates. High quality has been confirmed.

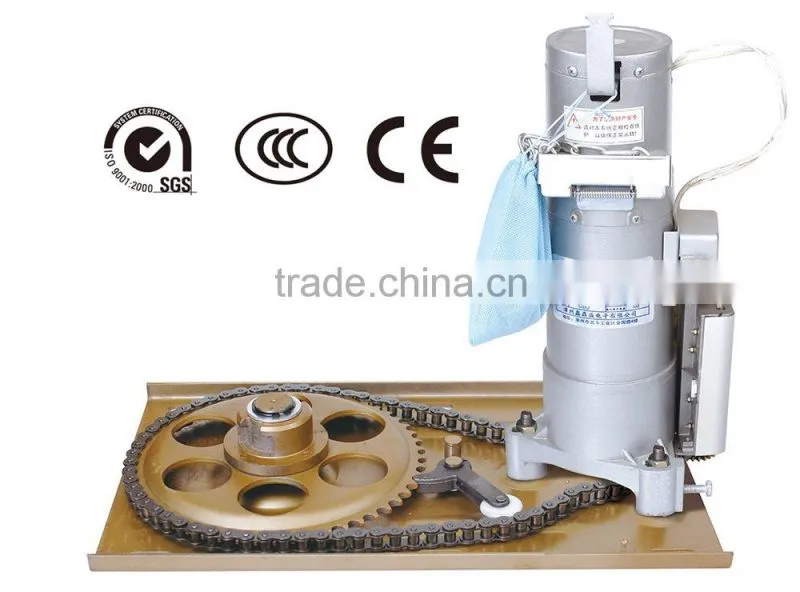

Description for Industrial Electric Rolling Door Motor
1.Powerful starting strength, loading up to 1500kg
2.Available in 3-phase (FP-500-3P,FP-600-3P,FP-800-3P,FP-1000-3P,FP-1300-3P)
3.Overworking for a short time
4.Overheat protection: if the temperature inside the motor is over 110℃, it stops working automatically. And it can work again if temperature returns to <70 ℃.
5.Limit switch enables precise adjustment in up and down positions
6.Electric and manual operations
7.Release chain in case of power failure
8.When the roller chain is break off, the safety lock device can protect vehicle or people from danger.
Technical Parameters of Industrial Electric Rolling Door Motors
Model |
Lifting force (kg) |
Max lifting height (m) |
Power (W) |
Current (A) |
Output torque (Nm)
|
Output turn speed (r/min) |
Chain No. |
Weight of host motor (kg) |
Single phase industrial electric rolling door motor | ||||||||
XDS-FP-1P-300 |
300 |
7.5 |
250 |
3.3 |
168 |
5.2 |
08B |
11.6 |
XDS-FP-1P-500 |
500 |
8 |
370 |
3.9 |
343 |
6.2 |
10A |
12.3 |
XDS-FP-1P-600 |
600 |
8 |
370 |
3.9 |
412 |
5.2 |
10A |
12.6 |
XDS-FP-1P-800 |
800 |
8.5 |
400 |
4.5 |
607 |
3.4 |
10A |
15.5 |
Three phase industrial electric rolling door motor | |||||||
Type |
Rated Power (W) |
Rate Load |
Max raising height (M) |
Rolling door maximum overall (m) |
Chain number |
||
Lifting Force (KG) |
Output torque (N.M) |
Output rotate speed(R/.MIN) |
|||||
XDS-FP-3P-(1500Kg) |
800 |
1500 |
1220 |
3.8 |
13 |
0.65 |
12A |
XDS-FP-3P-(1300Kg) |
600 |
1300 |
1050 |
4.2 |
13 |
0.65 |
12A |
XDS-FP-3P-(1000Kg) |
400 |
1000 |
810 |
4.2 |
10 |
0.65 |
12A |
XDS-FP-3P-(800Kg) |
300 |
800 |
650 |
3.4 |
10 |
0.54 |
10A |
XDS-FP-3P-(600Kg) |
250 |
600 |
412 |
3.4 |
6 |
0.48 |
10A |

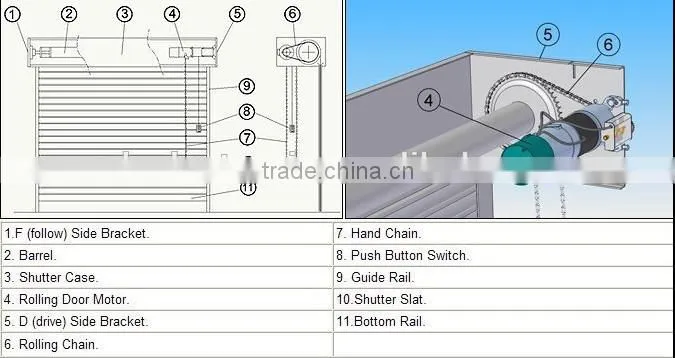

Installation

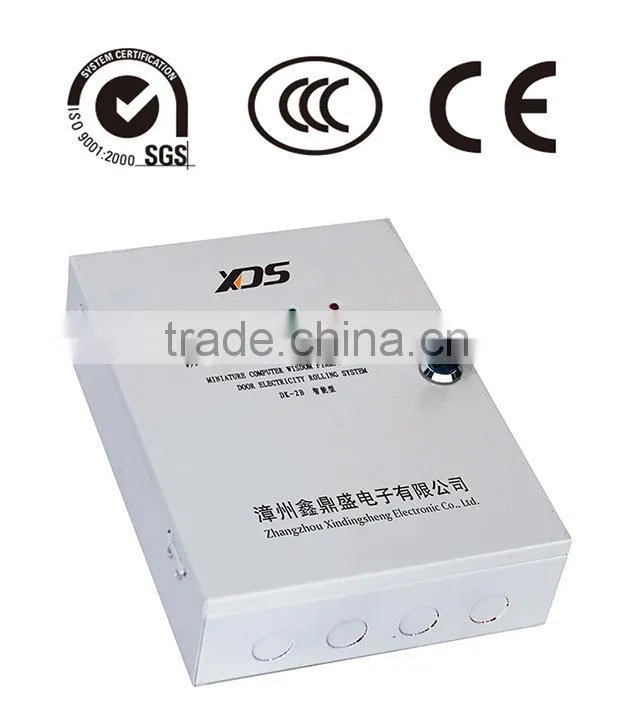

Certification

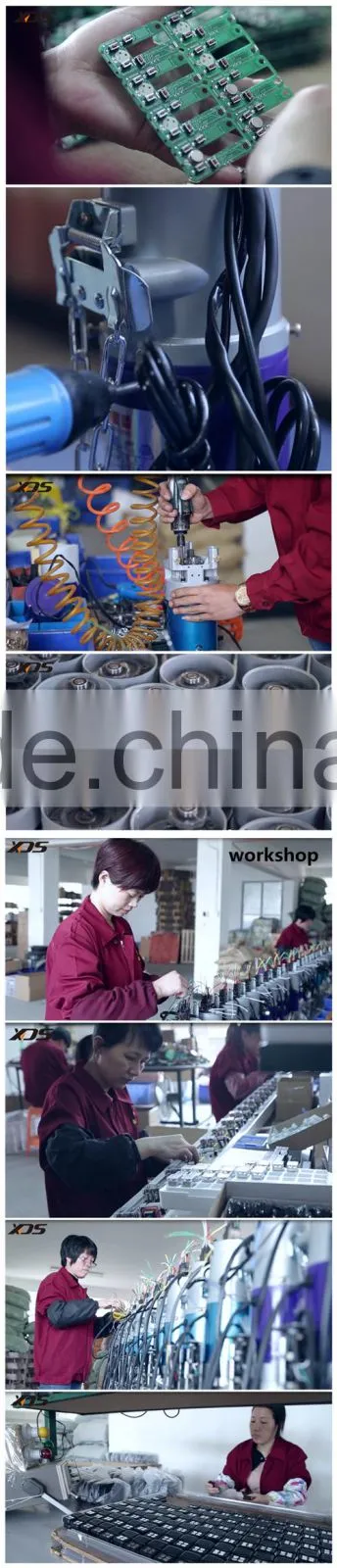

Now show you our workshop & factory ^.^
Why Choose US?
- OEM: we can open new mould according to original sample or technical drawings.
- Price: competitive and best EXW price. (The more you order, the lower the will be).
- Warranty: one year!!
- Aftersale: we promise to provide the most professinal asftersale service for our industrial electric rolling door motor.
Thank you for your time to scan our website. Hope you have got more infomation about our industrial electric rolling door motor and our company. We warmly welcome you to visit us and hope we can built business realtionship with you in the near future. Please feel free to contact us.
