High Pressure Water Filter System Swimming Pool Large-scale Sand Filter

High Pressure Water Filter System Swimming Pool Large-scale Sand Filter thumbnail-1
High Pressure Water Filter System Swimming Pool Large-scale Sand Filter thumbnail-2
High Pressure Water Filter System Swimming Pool Large-scale Sand Filter thumbnail-3
High Pressure Water Filter System Swimming Pool Large-scale Sand Filter thumbnail-4
High Pressure Water Filter System Swimming Pool Large-scale Sand Filter photo-1
High Pressure Water Filter System Swimming Pool Large-scale Sand Filter photo-2
High Pressure Water Filter System Swimming Pool Large-scale Sand Filter photo-3
High Pressure Water Filter System Swimming Pool Large-scale Sand Filter photo-4
US$ 1 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AQUA
Model Number:
Q650
Contact Supplier Request Quote Chat Now
Guangzhou Palicy Trade Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AQUA
Model Number Q650

High Pressure Water Filter System Swimming Pool Large-scale Sand Filter



Product Description

The winding of fibreglass around the filter body makes the filter more durable, deforming-proof, and resistance to chemical and corrosives. Uniquely designed distribution make a stable and even water flow to improve drainage system. All sand filters with pressure gauge. Easy to install, maintenance free.

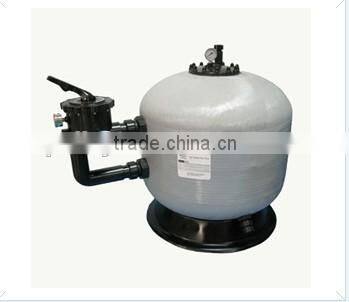

Side-mount Sand Filter Specifications:



Model Tank Dia(mm) Valve Size(mm) Filter Area(m2) Design Flow(m3/h) Silica Sand(kg) Height(mm)
QS450 455 40  0.16  8.0  28  730
QS500 535 40  0.22  11.5  50  770
QS650 635 40  0.33  16.6  80  850
QS700 710 40  0.38  19.2  160  960
QS800 820 50  0.50  25.2  220  1050
QS900 920 50  0.64  30.0  370  1180
QS1000 1020 50  0.79  34.0  447  1220
QS1200 1220 50  1.13  42.0  700  1410

High Pressure Water Filter System Swimming Pool Large-scale Sand Filter

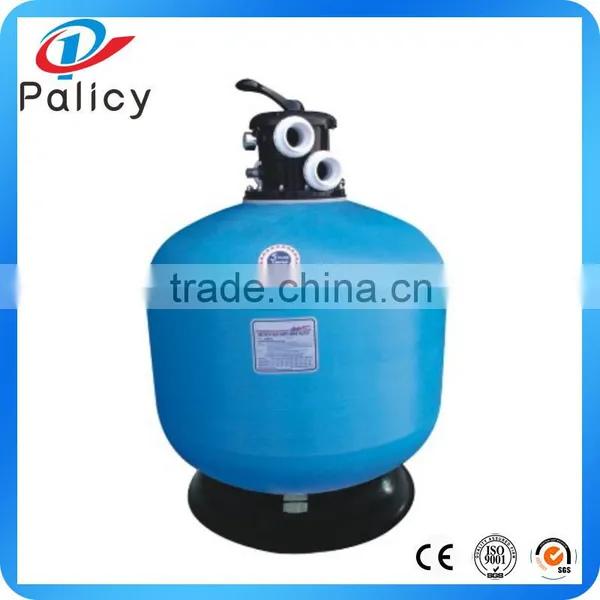

Top-mount Sand Filter Specifications:

Model Tank Dia(mm) Valve Size(mm) Filter Area(m2) Design Flow(m3/h) Silica Sand(kg) Height(mm)
Q400 400 40  0.13  6.30  28 740
Q450 450 40  0.16  8.00  50 800
Q500 500 40  0.22  11.5  80 840
Q650 650 40  0.33  16.5  160 960
Q700 700 40  0.38  19.2  220 1025
Q800 800 50  0.50  25.2  370 1200
Q900 900 50  0.64  30.0  447 1300
Q1000 1000 50  0.79  34.0  700 1400
Q1100 1100 50  0.95  38.0  900 1480
Q1200 1200 50  1.13  42.0  1100 1600







  High Pressure Water Filter System Swimming Pool Large-scale Sand Filter



Sand Filter Features:

*Twin heavy duty UV protected fiberglass tank.

*Ergonomically designed six position multiport.

*Resistant to chemicals and corrosion.

*Virtually maintenance free, simply backwash filter when required.

*Sand drain plug for easier sand removal-replacement.

*Maximum working pressure: 2.5kg/cm2 (35psi).

*Maximum temperature: 50 ℃ (122F).

*Working pressure of 4kg/cm2 available by special order.





Installation Intruduction:

Only simple tools (screwdriver and wrenches), plus pipe sealant for plastic adapters, are required to install and service the filter.



1. The filter should be placed on a level concrete slab, very firm ground, or equivalent. Position the filter so that the piping connections, control valve are convenient and accessible for operation and service.



2. Loading the sand media. Filter sand media is load through the top opening of the filter.

  • Loosen flange clamp and remove filter control valve (is previously installed).
  • Cap internal pipe with plastic cap to prevent sand from entering it.
  • We recomment filter tank approximately 1/2 way with water to provide a cushion when the filter sand is poured in. This helps protect the under-drain laterals from excessive shock.
  • Carefully pour in correct amount and grade of filter sand. (Be sure center pipe remains centered in opening.) Sand surface should be leveled and should come to about the middle of the filter tank. Remove plastic cap from internal pipe.

3. Assemble filter control valve to filter tank.

  • Insert filter control valve (with O'Ring in place) into the tank neck, taking care that the center pipe slips into the hole in the bottom of the valve.
  • Place two plastic clamps around valve flange and tank flange and tighten just enough so that the valve may be rotatedon tank for final positioning.
  • Carefully screw pressure gauge (with O'Ring in place) into tapped hole in valve body. Do not over tighten.
  • Connect pump to control valve opening marked PUMP. After connections are made, tighten valve flange clamps with screwdriver, tapping around clamp with screwdriver handle to help seat valve flange clamp.
emaux sand filter

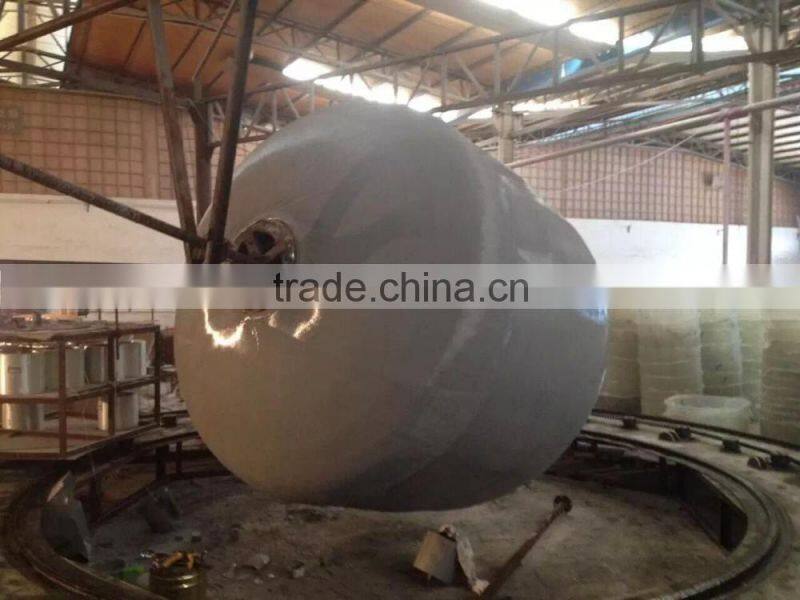

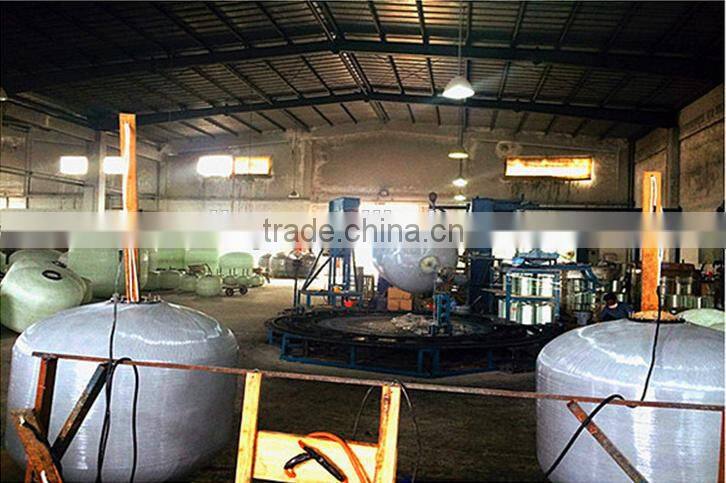

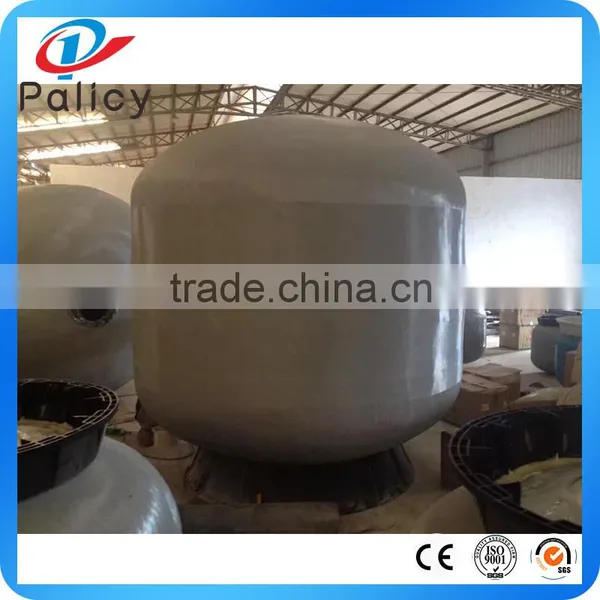

Production Flow

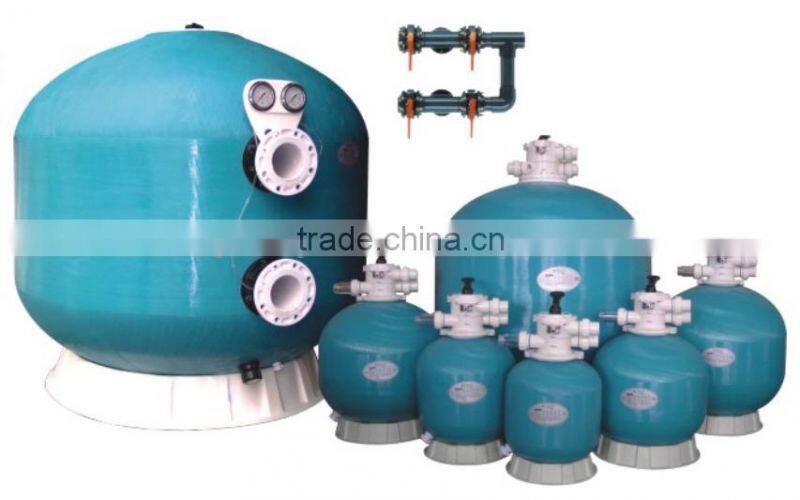

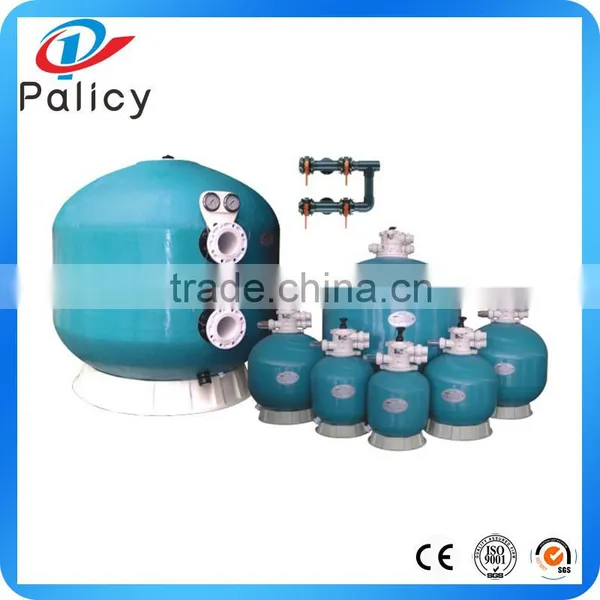

Sand filter type: top-mount,side-mount,filter with pump,small or large-scale filter

Size: -top mount filter:dia 400mm-1200mm

        -side mount filter: dia 525mm-1200mm

        -large filter: dia 1400mm-2000mm

High Pressure Water Filter System Swimming Pool Large-scale Sand Filter

High Pressure Water Filter System Swimming Pool Large-scale Sand Filter

  swimming pool filter

Related Products

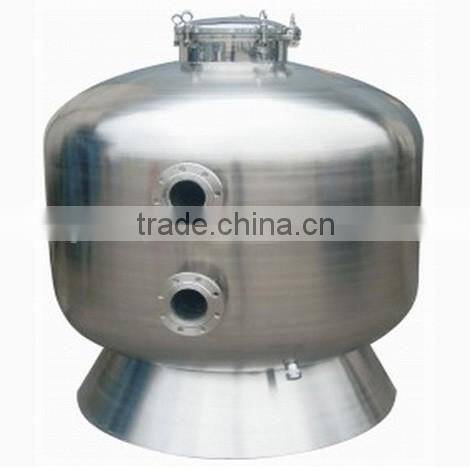

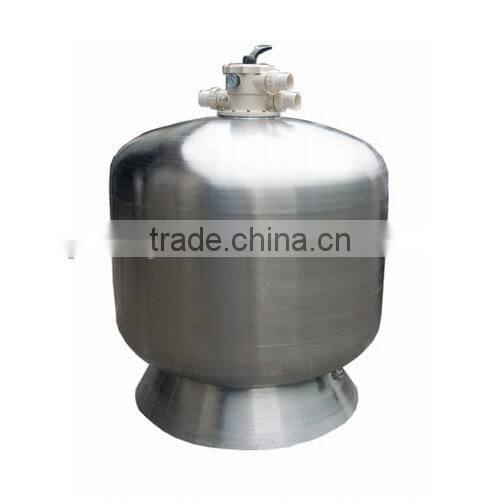

Corrosion-resistant Stainless steel silica sand filter

High Pressure Water Filter System Swimming Pool Large-scale Sand FilterHigh Pressure Water Filter System Swimming Pool Large-scale Sand Filter

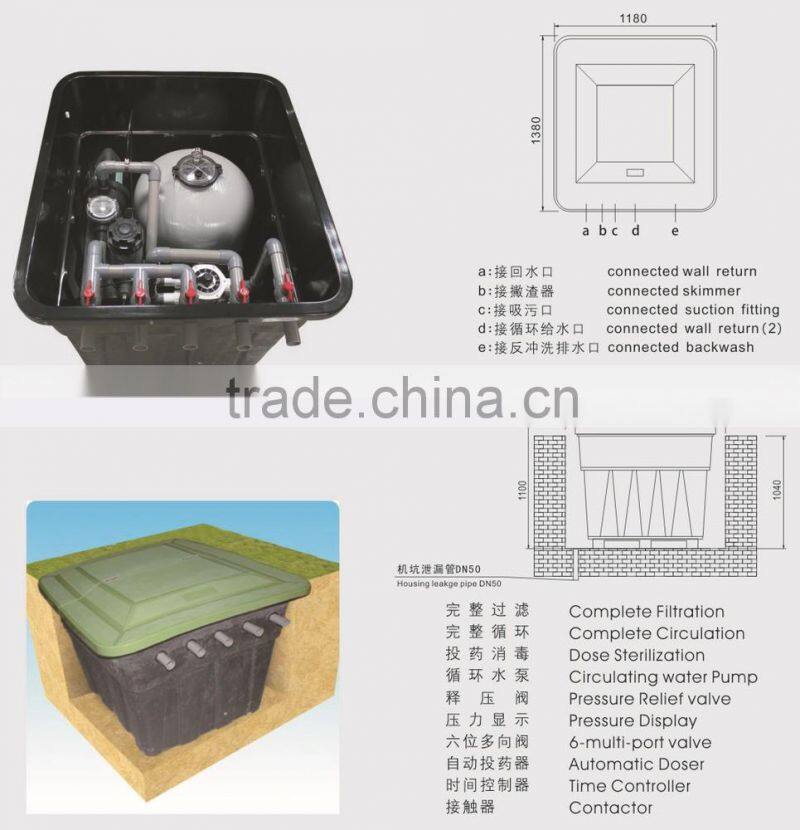

Automatic Intergrative Swimming Pool FilterHigh Pressure Water Filter System Swimming Pool Large-scale Sand FilterHigh Pressure Water Filter System Swimming Pool Large-scale Sand Filter

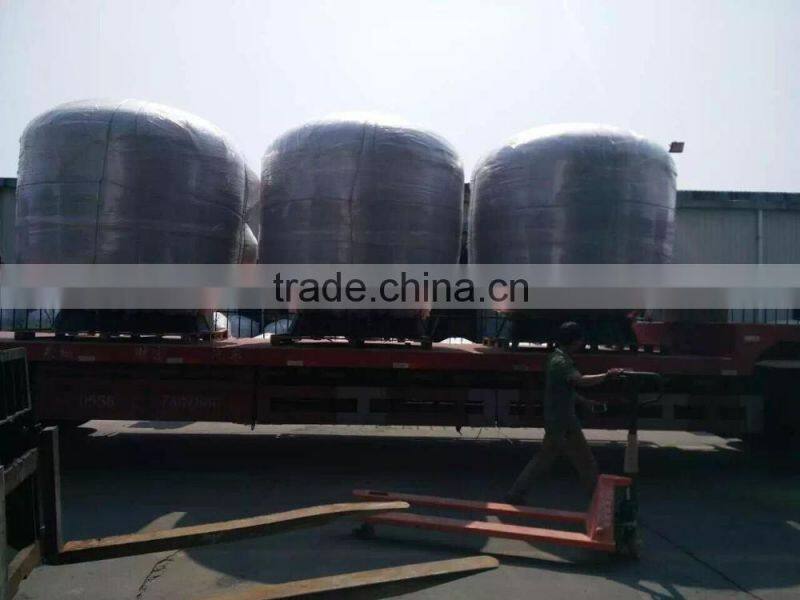

Packaging & Shipping

Package: The Fibreglass / Stainless Steel Swimming Pool Silica Sand Filter will be packed with carton or plastic film and wood frame.

High Pressure Water Filter System Swimming Pool Large-scale Sand Filter



Delivery Detail:  About 8 days for sample; 15-25 days for order, depend on the situation.



Shipping Method: The Fibreglass / Stainless Steel Swimming Pool Silica Sand Filter will be shipping by air,by sea,by express,by logistic.

large sand filter
