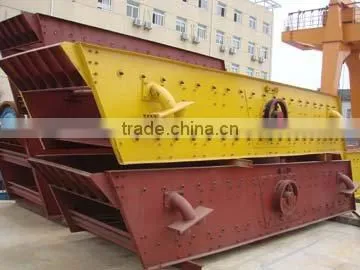

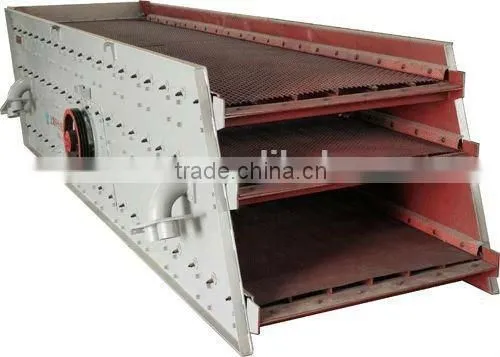

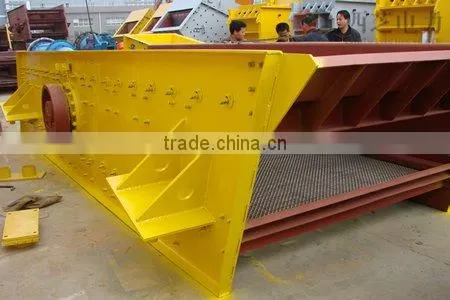

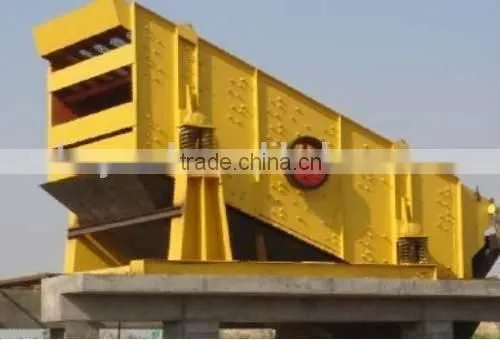

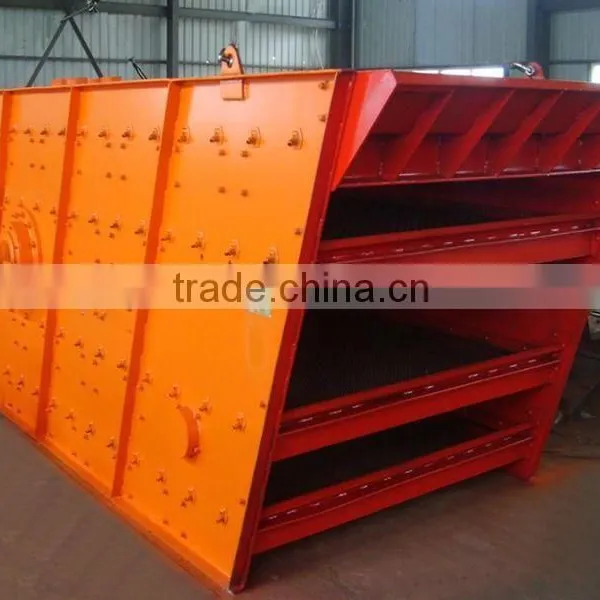

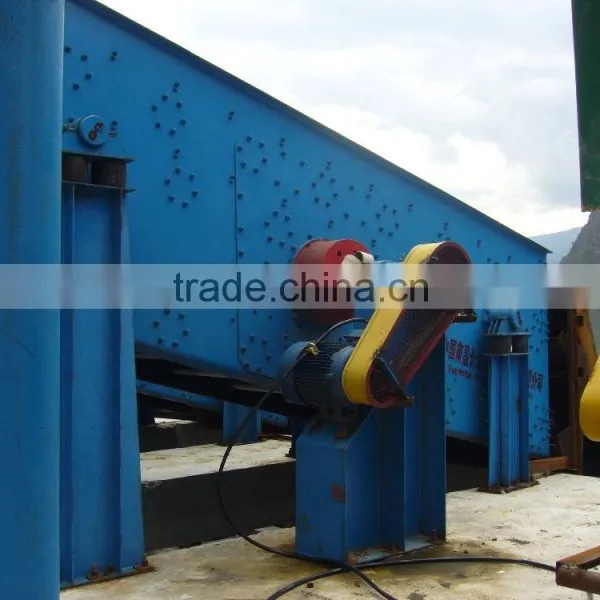

Vibrating Circulator Machine Circular Vibrating Screen
Specification of Vibrating Circulator Machine Circular Vibrating Screen
Brief Introduction of Vibrating Circulator Machine Circular Vibrating Screen YZS Series circular vibrating screens used for separating the stuff, are unique and advanced products of our
company. They are mainly used in coal dressing, metallurgy, mine, power station, water conservancy project,
building industry, light industry and chemical industry etc. They are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc.
Working Features of Vibrating Circulator Machine Circular Vibrating Screen
1. circular vibrating screen uses eccentric block to produce strong exciting force.
2. The ore vibrating scree's crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. circular vibrating screen adopts tire clutch with capability of flexible connection and stable operation.
4. circular vibrating screen adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
Principle of Vibrating Circulator Machine Circular Vibrating Screen
When circular vibrating screen on operation , first the materials will feed on circular vibrating screen mesh , and the materials will separated uniformly on screen mesh plates . The rolling bearing of circular vibrating screen will stressed by highly mostly shock-type loads . And more , the circular vibrating screen bearing ,while rotating about their own axis ,going a way of circular ,elliptical or linear vibrating motion . This results in high radial accelerations which additionally stress the bearings , and especially the cages considerably. The operating speeds are usually in a very high condition . As a result, the bearing temperatures are up to 20 to 30 degrees Kelvin higher than in normal applications. In addition, considerable misalignments between the bearing locations and considerable shaft deflections have to be accommodated.
Specification of Vibrating Circulator Machine Circular Vibrating Screen
Model |
Screen Spec(mm) |
Laters |
Screen Mesh Size(mm) |
Feed Size(mm) |
Capacity(t/h) |
Power(Kw) |
Vibrating frequency(HZ) |
Double Amplitude(mm) |
2YZS1445 |
4500*1400 |
2 |
5-50 |
≤100 |
45-250 |
11 |
900 |
5-9 |
2YZS1548 |
4800*1500 |
2 |
5-50 |
≤100 |
50-250 |
15 |
870 |
5-9 |
3YZS1548 |
4800*1500 |
3 |
5-50 |
≤100 |
50-250 |
15 |
870 |
5-9 |
2YZS1848 |
4800*1800 |
2 |
5-50 |
≤100 |
50-250 |
18.5 |
870 |
5-9 |
3YZS1848 |
4800*4800 |
3 |
5-50 |
≤100 |
50-250 |
18.5 |
870 |
5-9 |
2YZS1860 |
6000*1800 |
2 |
5-50 |
≤100 |
50-128 |
18.5 |
870 |
5-9 |
3YZS1860 |
6000*1800 |
3 |
5-50 |
≤100 |
50-128 |
22 |
870 |
5-9 |
2YZS2160 |
6000*2100 |
2 |
5-50 |
≤100 |
60-300 |
22 |
730 |
5-9 |
3YZS2160 |
6000*2100 |
3 |
5-50 |
≤100 |
60-300 |
30 |
730 |
5-9 |
2YZS2460 |
6000*2400 |
2 |
5-100 |
≤100 |
100-460 |
37 |
730 |
5-9 |
Introduction:
Henan Yuxinsenda Heavy industry Machinery Co.,Ltd. is an international enterprise which expert on manufacturer, R&D and sales of stone crusher, power making machine,tile making machine,brick making machine, ore beneficiation machines and other machines. We have achievedCE& ISO9001:2008 Quality Management Certificate and obtained import and export rights of our foundation. Our products have been exported to more than 60 countries, such as Sigapore, Canada, Vietnam, north Korea, Middle east, afric, etc. And they earned a good reputation among our customers.
Workshop:
Customers:
1. Pre-sale support
we can enable them to get rich and generous returns on their investments:
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients.
2.Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
clients to draft solving plans.
3.After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
4.Technological support
Our company insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Our company is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support.
The products should be processed to be rustproof delivery. After package, the goods are suitable for land and sea transportation.
1. Are you a factory?
Yes, we are a professional manufacture to supply you kinds of machinery. Such as:stone crusher,tile making machine, brick making machine, food making machine, and so on.
2. How long of the warranty?
100% brand new when leaving the factory. The seller guarantee quality of the machines for a period of one year from the date of trial run finish, but not to exceed 13 months from date of Bill of Lading.
3. Do you have any engineers oversea available?
Once we make the order successfully, we will send our engineers to help you installation and debug if the customer need.
