circular vibrating screen separator for mining with high quality
- 15 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T
Product Details
| Condition: | New | Type: | Circular | Application: | Other, Ore, coal, minerals, coke etc |
| Place of Origin: | Henan, China | Brand Name: | SD | Model Number: | YZS |
| Voltage: | 380v | Power(W): | 11000-37000 | Dimension(L*W*H): | general |
| Weight: | general | Certification: | ISO9001/CE, ISO9001:2000/CE | Warranty: | 12 months, 1year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

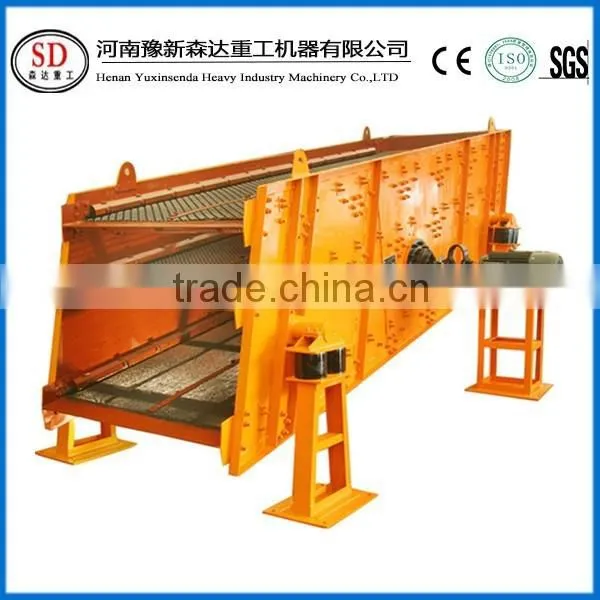

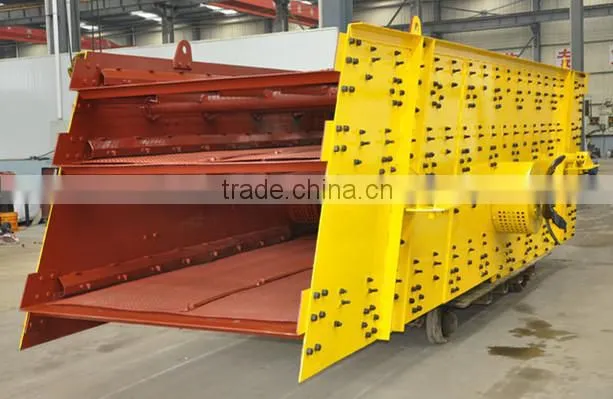

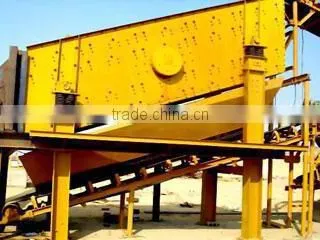

circular vibrating screen separator for mining with high quality
introduction of the circular vibrating screen
The YZS series circular vibrating screen is used for separating the stuff, are unique and advanced products of our company. They are mainly used in coal dressing, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry etc. They are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc.
features of circular vibrating screen
Stable structure, strong exciting force, high screening capacity, easy to maintain and high durability, handy maintenance and safety.
working principle of circular vibrating screen
The YZS circular vibrating screen is compiled of mainframe, eccentric bock, screen web, rub spring, electric motor, coupler and some more. It has multi-layers and is of high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line.We have always kept in our minds the choices, preferences and the tastes of our all clients. We will offer you suitable type according to your requirements.
specification of circular vibrating screen
Model | Screen Spec (mm) | Laters | Screen Mesh Size (mm) | Feed Size (mm) | Capacity (t/h) | Power (Kw) | Vibrating frequency (HZ) | Double Amplitude (mm) |
2YZS1445 | 4500*1400 | 2 | 5-50 | ≤100 | 45-250 | 11 | 900 | 5-9 |
2YZS1548 | 4800*1500 | 2 | 5-50 | ≤100 | 50-250 | 15 | 870 | 5-9 |
3YZS1548 | 4800*1500 | 3 | 5-50 | ≤100 | 50-250 | 15 | 870 | 5-9 |
2YZS1848 | 4800*1800 | 2 | 5-50 | ≤100 | 50-250 | 18.5 | 870 | 5-9 |
3YZS1848 | 4800*4800 | 3 | 5-50 | ≤100 | 50-250 | 18.5 | 870 | 5-9 |
2YZS1860 | 6000*1800 | 2 | 5-50 | ≤100 | 50-128 | 18.5 | 870 | 5-9 |
3YZS1860 | 6000*1800 | 3 | 5-50 | ≤100 | 50-128 | 22 | 870 | 5-9 |
2YZS2160 | 6000*2100 | 2 | 5-50 | ≤100 | 60-300 | 22 | 730 | 5-9 |
3YZS2160 | 6000*2100 | 3 | 5-50 | ≤100 | 60-300 | 30 | 730 | 5-9 |
2YZS2460 | 6000*2400 | 2 | 5-100 | ≤100 | 100-460 | 37 | 730 | 5-9 |
Company information
Henan Yuxinsenda Heavy Industry Machinery Co.,Ltd. is an interational heavy industry enterprise which expert on manufacturer and sales of stone crusher, sand washing machine ,rotary dryer and belt conveyor.
Our products have been exported to more than 60 countries and they have earned good reputation among our customers. We take Quality First and Customers First as our tenet. We cooperate with industry experts of the colleges and designing institute to build strong team. Senda always warmly welcome new and old customer visiting our factory and purchasing our products.
impact crusher
Certification
If you are interesting in our circular vibrating screen,welcome to inquiry to get more information and quotation.
