Specifications
1.sand making machine2.high efficiency;simple structure
3.low price;low consumption
4.Factory
5.CE/ISO Certificate

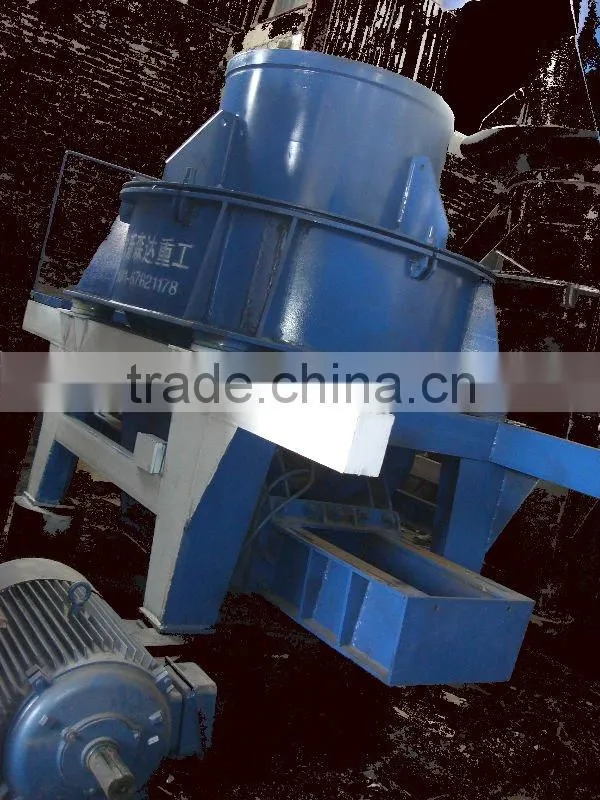

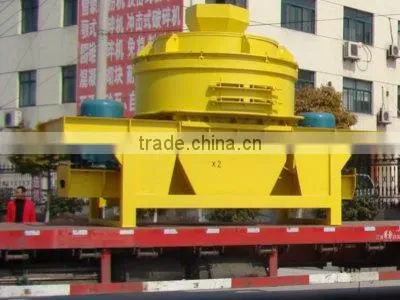

Artfical PCL snad making machin with CE Certificate
Introduction of sand making equipment :
Sand making machine also called sand making machine and rubble shaping machine ,is a kind of crusher impacted by the material themselves .
Features of sand making equipment
simple structure ,low consumption, high efficiency
it is slightly influenced by the humidity of material and the mas humidity is 8%
it is more suitable for crushing mid-hardness materials and high-hardness materials
the final product is cube
low noise
working principle sand making equipment
the material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well.
| technical parameters | ||||||
| type | impeller speed (r/min) | max feed size(mm) | diposal capacity (t/h) capacity (t/h) | power (kw) | weight (t) | overall dimension (mm) |
| PCL-600 | 2000-2470 | 30 | 20-35 | 60-90 | 7.5 | 2800×1500×2030 |
| PCL-750 | 1500-2045 | 35 | 35-55 | 90-150 | 9.3 | 3300×1800×2440 |
| PCL-900(A) | 1200-1685 | 40 | 55-100 | 110-180 | 12.6 | 3750×2120×2660 |
| PCL-603(B) | 1100-1580 | 40 | 65-130 | 150-180 | 14.5 | 3750×2300×2090 |
| PCL-1050 | 1000-1430 | 45 | 90-160 | 180-264 | 17 | 4480×2450×2906 |
| PCL-1250 | 850-1300 | 45 | 160-230 | 364-370 | 22.5 | 4563×2650×3716 |
| PCL-1350 | 800-1185 | 50 | 200-360 | 320-440 | 26.3 | 5340×2940×3650 |
Certifications:
Factory Information:
Projects:
Welcome to visit our factory !Welcome to inquiry !
l We will pick you up at Zhengzhou XingZheng Airport .
l We will treat your accommodation and diet during you are here.
