Specifications
Vertical shaft impact crusher/sand maker is a kind of crusher impact by the material itself.High efficiency with low cost.Vertical shaft impact crusher/sand maker
Introduction:
vertical shaft impact crusher(sand maker),also called sand making machine and rubble shaping machine ,is a kind of crusher impacted by the material themselves .
Vertical shaft impact crusher/sand maker:
simple structure ,low consumption
high efficiency
it is slightly influenced by the humidity of material and the mas humidity is 8%
it is more suitable for crushing mid-hardness materials and high-hardness materials
the final product is cube
low noise

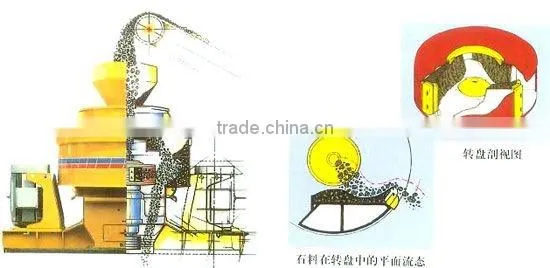

Working principle of vertical shaft impact crusher/sand maker:
The material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well
| Technical parameters of vertical shaft impact crusher/sand maker | ||||||
| type | impeller speed (r/min) | max feed size(mm) | diposal capacity capacity (t/h) | power (kw) | weight (t) | overall dimension (mm) |
| PCL-600 | 2000-2470 | 30 | 20-35 | 60-90 | 7.5 | 2800×1500×2030 |
| PCL-750 | 1500-2045 | 35 | 35-55 | 90-150 | 9.3 | 3300×1800×2440 |
| PCL-900(A) | 1200-1685 | 40 | 55-100 | 110-180 | 12.6 | 3750×2120×2660 |
| PCL-603(B) | 1100-1580 | 40 | 65-130 | 150-180 | 14.5 | 3750×2300×2090 |
| PCL-1050 | 1000-1430 | 45 | 90-160 | 180-264 | 17 | 4480×2450×2906 |
| PCL-1250 | 850-1300 | 45 | 160-230 | 364-370 | 22.5 | 4563×2650×3716 |
| PCL-1350 | 800-1185 | 50 | 200-360 | 320-440 | 26.3 | 5340×2940×3650 |
