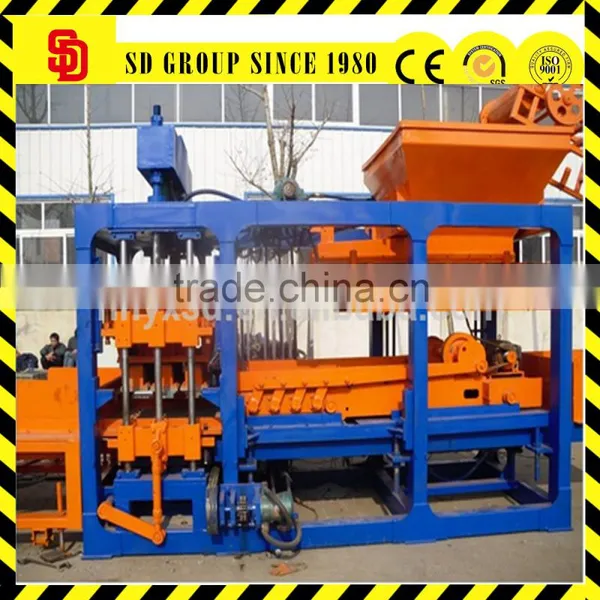

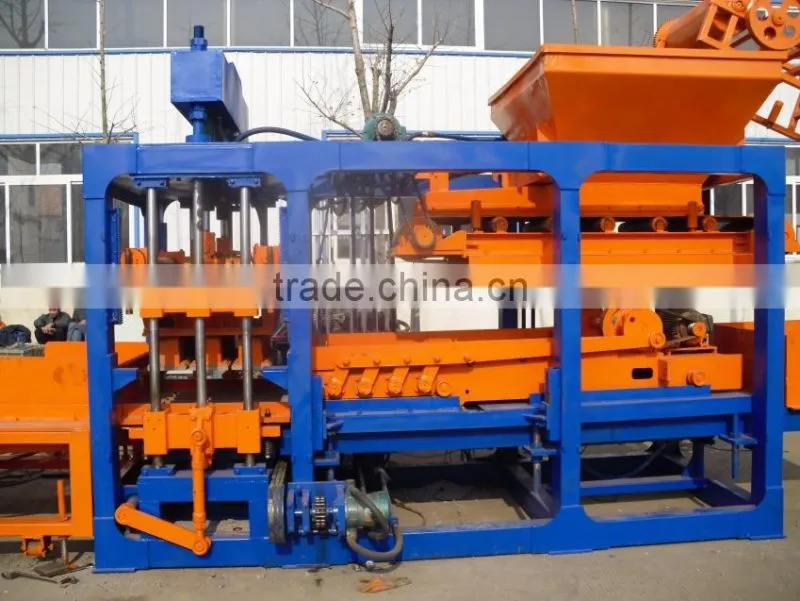

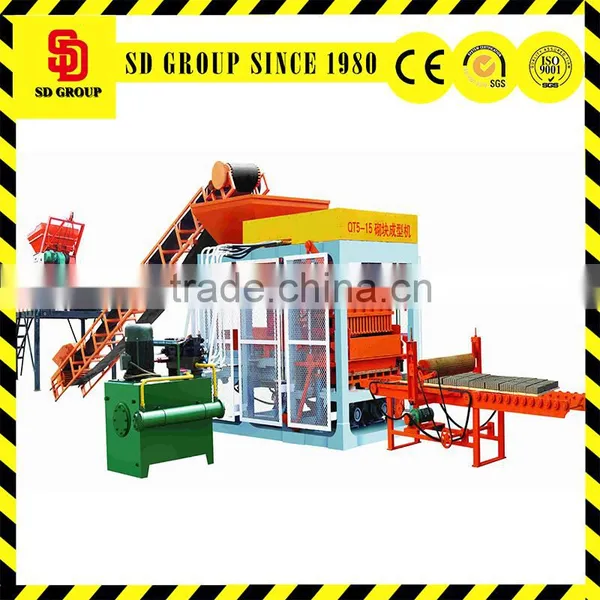

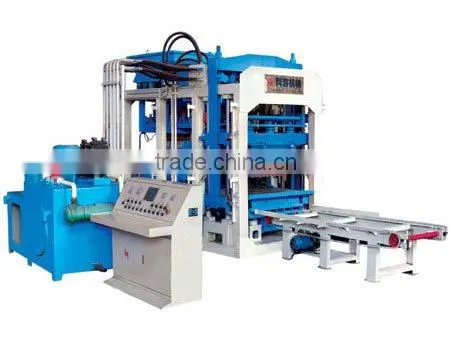

Full Automatic Hydraulic QT6-15 Fly Ash Brick Block Making Machine
Technicial Specification of Full Automatic Hydraulic QT6-15 Fly Ash Brick Block Making Machine
Host Machine Power |
32KW |
Pallet Size |
850*680*32mm |
Molding Period |
15-20seconds/time |
Exciting Force |
70KN |
Vibration Frequency |
4600-6100rolls/minute |
Exterior Size |
6050*2180*2780mm |
Pressure |
10-22Mpa |
Host Weight |
8.8T |
Certificate |
ISO9001:2008&CE |

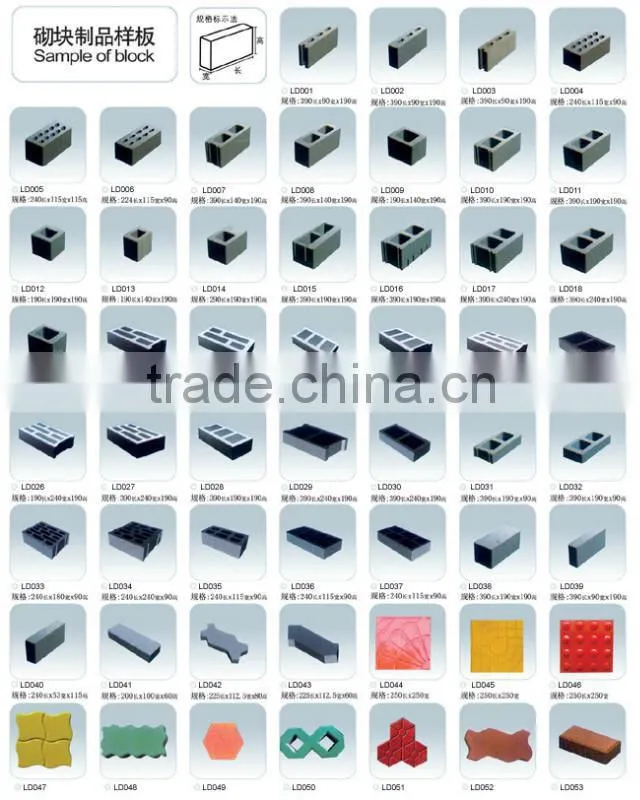

Theoretical Output Table
|
Product Specification |
Pcs/Mould |
Pcs/h |
Pcs/8h |
Block |
390*190*190 |
6 |
1440 |
11520 |
Porous brick |
240*115*90 |
20 |
4800 |
38400 |
Standard brick |
240*115*53 |
33-36 |
8640 |
69120 |
Ground brick |
200*100*60 |
24 |
5760 |
46080 |
Solid Blocks |
215*96*70 |
18 |
4320 |
34560 |
Hollow block |
400*100*100 |
12 |
2880 |
23040 |
Hollow block |
400*200*120 |
10 |
2400 |
19200 |
Hollow block |
400*200*150 |
8 |
1920 |
15360 |
|
Note:Regarding other size of bricks/blocks(including color bricks),we can design the mould as customer’s request | ||||

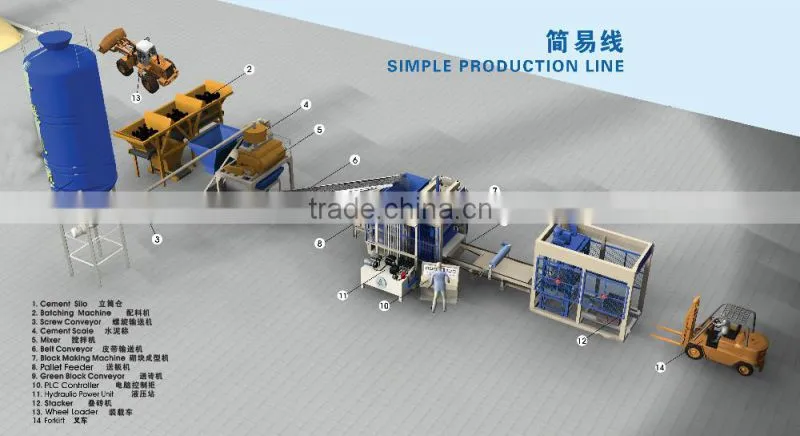

Flow Diagram of Full Automatic Hydraulic QT6-15 Fly Ash Brick Block Making Machine
Henan Yuxinsenda Heavy industry Machinery Co.,Ltd. is an international enterprise which expert on manufacturer, R&D and sales of stone crusher, power making machine,tile making machine,brick making machine, ore beneficiation machines and other machines. We have achievedCE& ISO9001:2008 Quality Management Certificate and obtained import and export rights of our foundation. Our products have been exported to more than 60 countries, such as Sigapore, Canada, Vietnam, north Korea, Middle east, afric, etc. And they earned a good reputation among our customers.
The products should be processed to be rustproof delivery. After package, the goods are suitable for land and
sea transportation.
1. Pre-sale support
we can enable them to get rich and generous returns on their investments:
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients.
2.Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
clients to draft solving plans.
3.After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
4.Technological support
Our company insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Our company is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support.
1. Are you a factory?
Yes, we are a professional manufacture to supply you kinds of machinery. Such as:stone crusher,tile making machine, brick making machine, food making machine, and so on.
2. How long of the warranty?
100% brand new when leaving the factory. The seller guarantee quality of the machines for a period of one year from the date of trial run finish, but not to exceed 13 months from date of Bill of Lading.
3. Do you have any engineers oversea available?
Once we make the order successfully, we will send our engineers to help you installation and debug if the customer need.
