crushing equipment and vibrating screening
- 100 Set / Sets per Month
- Qingdao or other port in China
- T/T
Product Details
Condition: | New | Type: | Other, crushing equipment and vibrating screening, Crusher | Application: | Mountain ,roads building,construction, ore,coal,metal,granit,gravel,river stone,brick,tile,etc |
Motor Type: | AC Motor | Power(W): | 200KW | Capacity(t/h): | 300-800 |
Place of Origin: | Shandong, China | Brand Name: | Shan Yuan/SDSY | Model Number: | PE1200x1500 |
Dimension(L*W*H): | 4590X3342X4037MM | Weight: | 100T | Certification: | ISO9001; CE, ISO9001-200 |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
crushing equipment and vibrating screening
Export Standards package/As per the buyer's requirements
Product Description

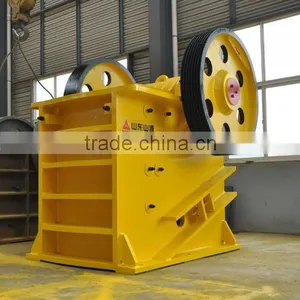

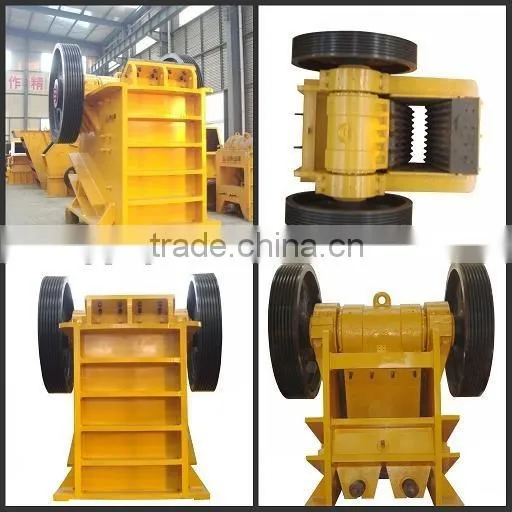

Crushing equipment and vibrating screening
Wearable spare parts High wear resistant ,accurate processing, long using life

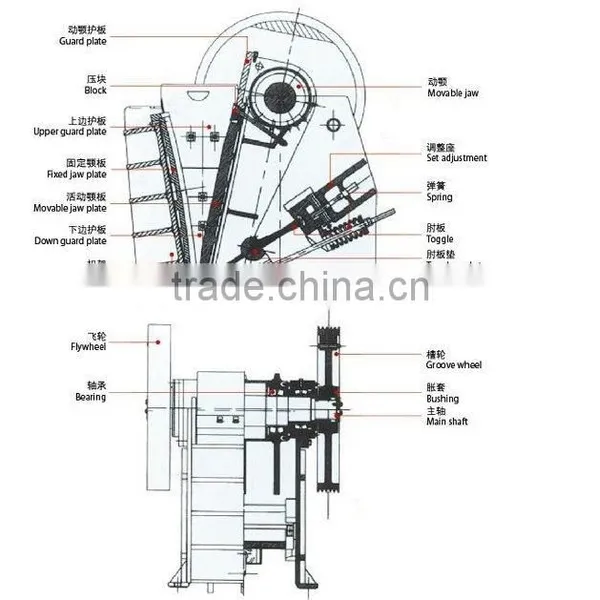

Principle Of Operation-crushing equipment and vibrating screening,stone crusher plant
The motor passes the motive power to the eccentric shaft end's pulley, making the eccentric shaft under the lead of the motor do rotatory movement according to the demanded speed rate; the dynamic jaw head propelled by the eccentric shaft’s eccentric force makes regular fixed track compressive movement to break the materials.
Characters-crushing equipment and vibrating screening,stone crusher plant
1.Feeding Granularity is big;breaking ratio is big;Outturn is large.
2.The operation is stable and reliable,fixed with over-loading protective device.
3.The energy consumption is low,the wearing parts are little,the maintenance cost is low.
4. The adjusting parts are reinforced emphatically and finish machining,reducing repair frequence.
5.The axle bearing adopts with labyrinth seall,prolonging its operation life.
6.Using modules lubrication ,which is easier and more convenient for the maintenance.
7.The belt pulley adopts new locking craft,keyless connection,making maintenance more convenient.
Applicability-crushing equipment and vibrating screening,stone crusher plant
1.Widely applied to all sorts of ore,rock ,etc., the breaking compressive stength not exceeding 320Mpa.
2.Being widely used in mine,metallurgy,roads&bridges,building materials,water conservancy and chemical industry,etc.
Specifications-crushing equipment and vibrating screening,stone crusher plant:
MODEL | Max. Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor power (KW) |
PE-400X600 | ≤340 | 40-90 | 15-40 | 30 |
PE-500X750 | ≤420 | 50-100 | 20-52 | 55 |
PE-500X750 | ≤480 | 50-110 | 20-80 | 55 |
PE-600X900 | ≤520 | 65-130 | 50-150 | 75 |
PE-700X1000 | ≤600 | 70-140 | 80-170 | 90 |
PE-750X1060 | ≤630 | 80-140 | 100-180 | 110 |
PE-800X1100 | ≤700 | 100-200 | 120-230 | 110 |
PE-900X1100 | ≤800 | 100-200 | 130-250 | 132 |
PE-900X1200 | ≤800 | 100-230 | 180-280 | 132 |
PE-1000X1200 | ≤900 | 140-250 | 200-400 | 132 |
PE-1100X1300 | ≤1000 | 170-280 | 300-600 | 160 |
PE-1200X1500 | ≤1100 | 180-300 | 400-800 | 160 |
Remarks: The above datas is just for your reference. With the development of technology and our products,there will be some improvement to adjust the market.
1. What about Warranty? What will we do if the machine is broken down?
Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice and find the solution immediately for you when the machine is in trouble-shoot. For wearing spare parts, we guarantee the high quality parts for long-time supply.
2. What are your advantages over others?
a). We have advanced R&D Center, which helps us always focus on the exploration for new technology and the information of advanced manufacturing methods. We keep on improving our innovating capability, and always stay at the leading edge in the industry.

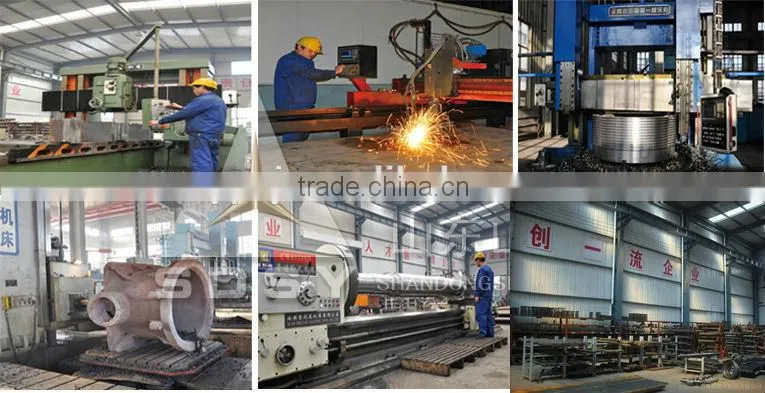

b). After years, we have built a professional production line fully equipped with a complete set of crusher manufacturing machines, ensuring that every piece of our crushing equipment is at expert level.
c). In quality management, we have built a set of strict and effective supervision and control system. By the introduction of new technology and new equipment, we continuously promote our corporate quality assurance system, which takes the quality improvement as the main line. Our quality management system is in line with ISO9001-2000 international standard.
Our Services
1. We guarantee our reply in 24 hours of working day.
2. Our engineers will communicate with our customers in different languages to help them to solve the technical questions and quality issues.

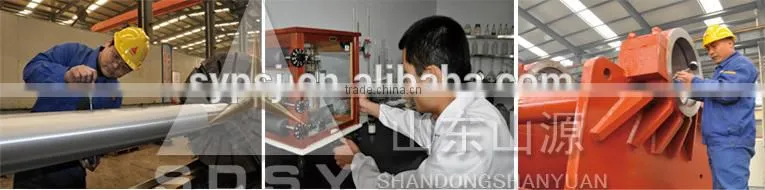

3. Our professional QA people make strict inspection before shipment.
4. Punctual shipment time and good after-sales service will be guaranteed.
Certificates Approved by relative Quality and Credit Control Government Bureau:

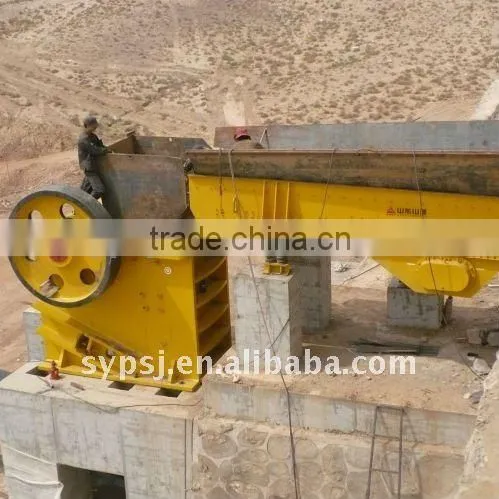

Good Operation for over 3years with high working efficiency in our clients using field:
Attn: Ms. Sophia Zeng/Sales Manager
Mobile: 0086-13793919275
Email: sophia at sycrusher dot com
Skype: sky96968
Add.: Fengxiang Road, Hedong Industry Zone, Linyi, Shandong, China
Company Profile
Shandong Chengming Construction Machinery Co., Ltd. is a provincial enterprise with high and new technology, having our complete departments integrating the research, manufacture and sale of series of crushers, matching equipment of crushing stone sieves, as well as the supply of processing, installation and transporting services. Our company is also an enterprise that obeys contracts and emphasizes credit. Our company registered $750,000 as capital, and our sales income comes up to about $750,000. For ten years, taking our enterprise spirit of "good faith, being pragmatic; innovation, development", through persevering efforts, our company has become an important manufacture and export base rapidly.
Based on talents, we develop creatively. There are a number of research elitists in our company. They are respecting their career and are expert at doing it. They also represent the leading level in technology. For years, they devote all their efforts to the absorption and digestion of advanced technique both at home and abroad, improve enterprise's technical and innovative capacity constantly. Our company has formed a product chain firstly based on series of crushers, secondly based on the matching products such as feeding, sizing and others. At present, our main products are PE, PEX series jaws, PF series reaction equipment, WPC, PC series attaching machines, PG2X series rolling machines, CZG, ZSW series feeders, and YZ, ZSB series vibrating screens totally eight series, dozens of specifications of crushing machines, and crushing stone sizing matching products, which are widely used in the fields of mine, building materials, metallurgy, roads and bridges, and energy.
Quality is the life of an enterprise. Our company takes quality as core and has established a series of strict and efficient quality administrative systems to make sure product quality. Our company was assured by ISO9001 in counterparts firstly. In order to promote the principle of "Manufacture, striving for perfection, pursuing consummation", our company adopts new craft, new equipment to make sure high-standard and high-quality products.
Our company obeys the principle of "Take quality as the basis, regard the users as the first importance", emphasizes on the sale on line. "Shan Yuan" brand series of products have very strong competitive advantages in the intensive market both at home and abroad. Putting Customers at the first place, providing satisfactory services for customers, we have no excuse. Our company has a procession with rich experience, exquisite after-sale services, and takes services to accomplish honesty, considering for customers on everything. Our company also provides the most considerate services actively and fast.
Shandong Chengming Construction Machinery Limited Company takes the developing principle of "Shandong Shan Yuan, Being Trustworthy Forever", sticking to taking quality to accomplish brand, taking service to promote brand and creating actively.
We welcome all customers and friends both at home and abroad to give us your presence and guidance sincerely, to accomplish the win-win cooperation.
