Factory Manufacturer vibrating feeder mining equipment
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Application: | mining , bridge , road costruction | Power Type: | Electric |
Capacity(t/h): | 70-140 | Place of Origin: | Shandong, China | Brand Name: | SDSY |
Model Number: | ZDW70x350 vibrating feeder mining equipment | Power(W): | 15 | Dimension(L*W*H): | 3500*1460*950 |
Weight: | as the different model | Certification: | ISO9001-2000 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Vibrating Feeder Mining Equipment:
suitable for shipping Vibrating Feeder
Product Description

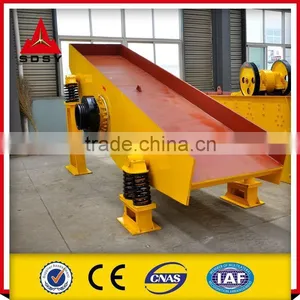

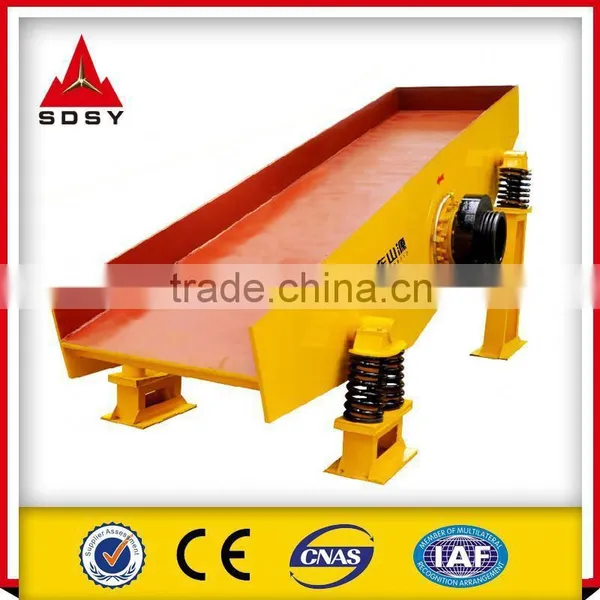

Vibrating Feeder Mining Equipment
ZDW series vibration feeder is widely used to transport of all kinds of ores,rocks and other similar block materials.It is mainly used in ore,rock and other massive materials matching use before the crushing.
Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment
Models and specification
Model | Feed size(mm) | Processing capacity(t/h) | Power(kw) | Groove face inclination(º) | Overall dimension(L*W*H)(mm) |
ZDW70*250 | ≤400 | 70-140 | 15 | 18 | 3500*1460*950 |
ZDW90*400 | ≤500 | 120-250 | 18.5 | 18 | 4000*1689*1000 |
ZDW106*500 | ≤600 | 150-300 | 22 | 18 | 5000*1806*1050 |
ZDW120*600 | ≤700 | 180-350 | 30 | 18 | 6000*1945*1160 |
Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment
Note:The data list in the table are by the standards of the loose density of feeding material is 1.6t/m³,and the humidity is below 5%. The price above incuding motor,motor roller,vee belt,spring machine seat.
Model | Feed opening size(L*W) | Max. Feed Size mm | Capacity (t/h) | Rotation Speed (r/min) | Power (kw) | Overall dimension (L*W*H)mm |
ZSW-380×96 | 3800×960 | 500 | 70-140 | 500-720 | 11 | 3882×1467×1325 |
ZSW-490×110 | 4900×1100 | 600 | 120-250 | 500-800 | 15 | 4980×1654×1345 |
ZSW-490×120 | 4900×1200 | 700 | 150-300 | 500-800 | 18.5 | 4980×1754×1345 |
ZSW-590×120 | 5900×1200 | 700 | 180-350 | 500-800 | 22 | 6058×1925×1563 |
ZSW-590×130 | 5900×1300 | 750 | 250-450 | 500-800 | 30 | 6058×2025×1563 |
Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment Vibrating Feeder Mining Equipment
Product Pictures
FAQ
1. What about Warranty? What will we do if the machine is broken down
Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice and find the solution immediately for you when the machine is in trouble-shoot. For wearing spare parts, we guarantee the high quality parts for long-time supply.
2. What are your advantages over others?
a). We have advanced R&D Center, which helps us always focus on the exploration for new technology and the information of advanced manufacturing methods. We keep on improving our innovating capability, and always stay at the leading edge in the industry.
b). After years, we have built a professional production line fully equipped with a complete set of crusher manufacturing machines, ensuring that every piece of our crushing equipment is at expert level.
c). In quality management, we have built a set of strict and effective supervision and control system. By the introduction of new technology and new equipment, we continuously promote our corporate quality assurance system, which takes the quality improvement as the main line. Our quality management system is in line with ISO9001-2000 international standard.
3. What about your product’s price?
Our products are of reasonable price since they are directly from our factory.
Our Services
1. We guarantee our reply in 24 hours of working day.
2. Our engineers will communicate with our customers in different languages to help them to solve the technical questions and quality issues.
3. Our professional QA people make strict inspection before shipment.
4. Punctual shipment time and good after-sales service will be guaranteed.
