Specifications
1.Belt conveyors with2.High capacity&efficiency
3.Less wearing parts
4.Heat resistant
5.The best after-sale service
Conveyors System,Belt Conveyors,Mining Machinery Part,Belt Conveyors,Conveyor Machine

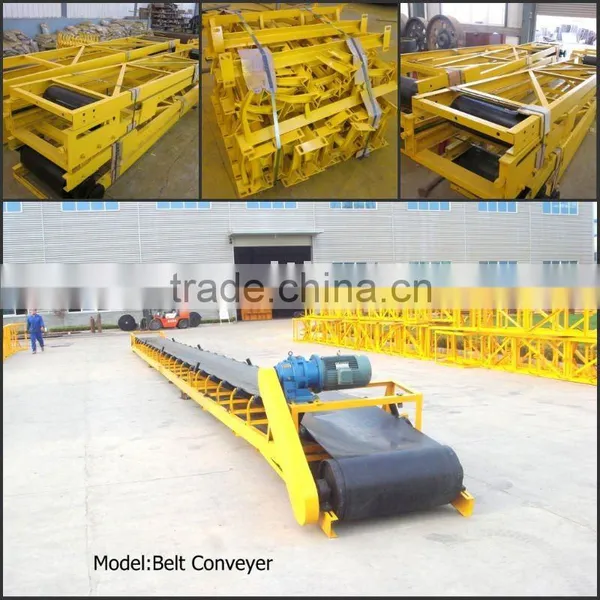

Performance Characteristics of Belt Conveyors:
Our company has a conveyor belt machine with the advantages of large conveyor capacity, simple structure, easy maintenance, standardized components. It’s widely used in mining, metallurgy, coal and other departments to transport loose materials or items. In accordance with the requirements of transmission process, the conveyor can be used as a single transmission, also can be more than one portfolio or the composition with other transmission equipment level or inclined conveyor system to meet the needs of different types of operating line.
Application of Belt Conveyors:
Conveyor belt can be used in the ambient temperature of -20 ~ +40 degree,and the temperature of distribution of materials is below 50 degree.
Specifications of Belt Conveyors:
Belt Width(mm) |
Belt Length (m) /Power (KW) |
Belt Speed(m/s) |
Capacity (t/h) |
||
B=400 |
≤12/1.5 |
(12-20)/2.2 |
(20-25)/5 |
0.8-2.0 |
40-80 |
B=500 |
≤12/3 |
(12-20)/4 |
(20-30)/5.5 |
0.8-2.0 |
80-190 |
B=650 |
≤12/4 |
(12-20)/5.5 |
(20-30)/7.5 |
0.8-2.0 |
130-330 |
B=800 |
≤6/4 |
(6-15)/5.5 |
(15-25)/7.5 |
1.0-2.0 |
280-500 |
B=1000 |
≤10/5.5 |
(10-20)/7.5 |
(20-25)/11 |
1.0-2.0 |
430-850 |
B=1200 |
≤10/4 |
(10-20)/11 |
(20-25)/15 |
1.0-2.0 |
650-1200 |
Remarks:
1. The table specified capacity is relative to crushed stone with loose volume density 1.6t/m3.
2. Belt inclined angle should be less than 18°.
3. The company is capable of making special designing as per customers’ requirements.
