Specifications
1.Our basalt crusher plant features in2.Big crushing ratio
3.Stable operation,easy maintenance
4.High productivity

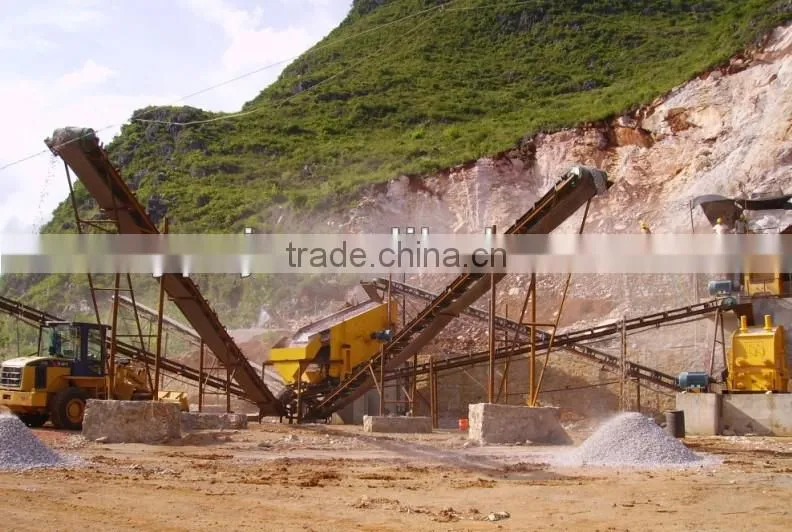

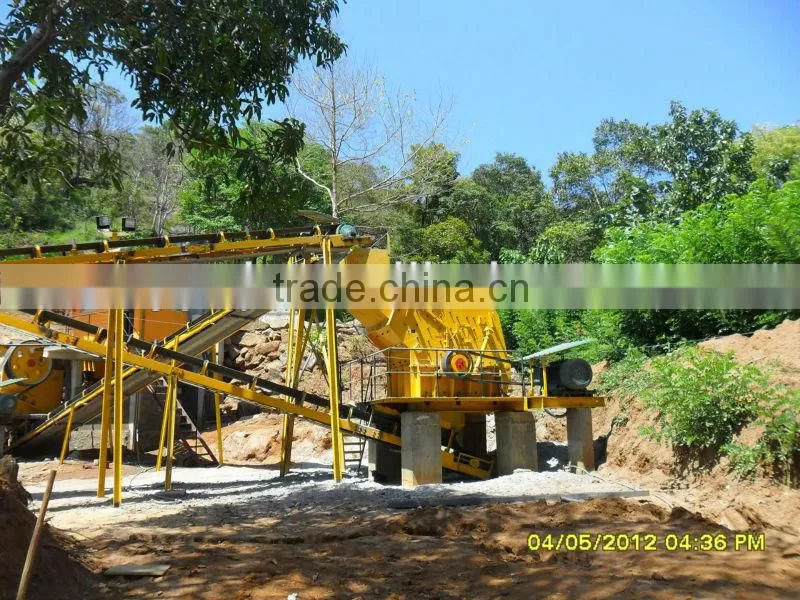

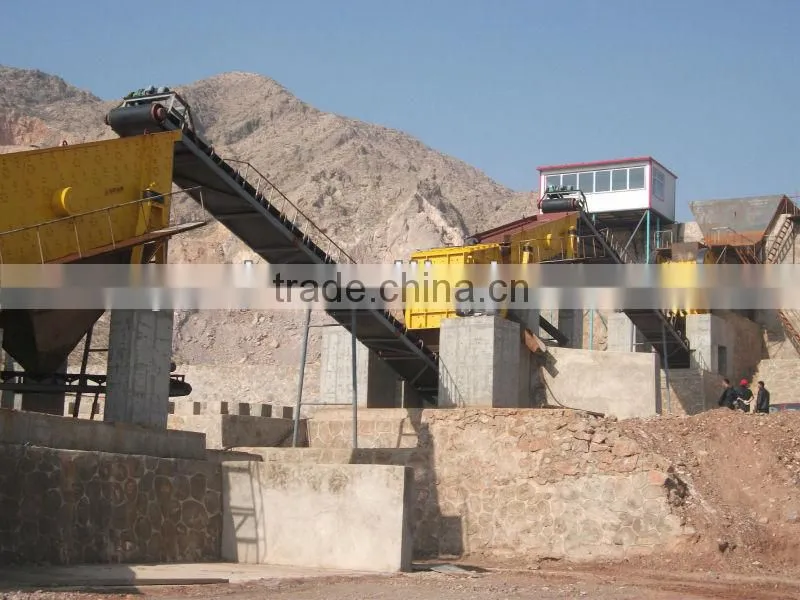

Basalt Crusher Plant,Basalt Crushing Line,Stone Crusher Plant,Crushing Line,Crusher,Rock Crusher,Stone Crusher Plant
As a leading manufacturer of crusher machinery in China for over 10 years,we have crusher plants all over China as well as overseas countries.
Characters of Jaw Crusher Machine:
1. Feeding granularity is big, breaking ratio is big, and Outturn is large.
2. The operation is stable and reliable, fixed with over-loading protective device.
3. The energy consumption is low, the wearing parts are little, and the maintenance cost is low.
4. The adjusting parts are reinforced emphatically and finish machining, reducing repair frequency.
5. The bearing parts adopts with multilayer labyrinth seal, prolonging its operation life.
6. Using modules lubrication, which is easier and more convenient for the maintenance.
7. The belt pulley adopts new locking craft, keyless connection, making maintenance more convenient.
Specifications of Jaw Crusher :
MODEL |
Max. Feed Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Motor power (KW) |
PE-400X600 |
≤340 |
40-90 |
15-40 |
30 |
PE-500X750 |
≤420 |
50-100 |
20-52 |
55 |
PE-500X750II |
≤480 |
50-110 |
20-80 |
55 |
PE-600X900 |
≤520 |
65-130 |
50-150 |
75 |
PE-700X1000 |
≤600 |
70-140 |
80-170 |
90 |
PE-750X1060 |
≤630 |
80-140 |
100-180 |
110 |
PE-800X1100 |
≤700 |
100-200 |
120-230 |
110 |
PE-900X1100 |
≤800 |
100-200 |
130-250 |
132 |
PE-900X1200 |
≤800 |
100-230 |
180-280 |
132 |
PE-1000X1200 |
≤900 |
140-250 |
200-400 |
132 |
PE-1100X1300 |
≤1000 |
170-280 |
300-600 |
160 |
PE-1200X1500 |
≤1100 |
180-300 |
400-800 |
160 |
Performance Features of Impact Crusher:
It is the latest reaction breaker, this machine combines breaking and shaping together; it has the features of being high efficiency, low-consumption, good discharge grain shape. Compared with other reaction breaker, it can reduce the energy consumption by 40%; the quantity of the aggregate needle flake can be reduced by more than 80%.
Applicability of Impact Crusher:
Widely applied to all kinds of materials crushing, processing and shaping, such as basalt, granite, cobble stone, limestone, etc.
Specifications of Impact Crusher:
Model |
Max. Feed Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Motor power (KW) |
PF-1010 |
≤100 |
<40 |
50-90 |
75 |
PF-1210 |
≤120 |
<40 |
60-130 |
110 |
PF-1214 |
≤140 |
<40 |
70-180 |
132 |
PF-1315 |
≤160 |
<40 |
90-250 |
200 |
PF-1320 |
≤180 |
<40 |
120-350 |
315 |
