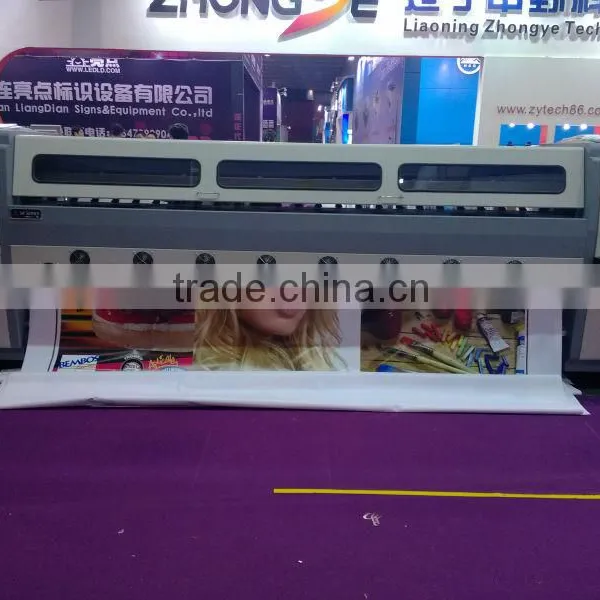

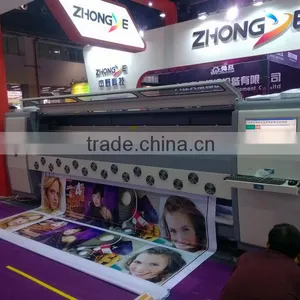

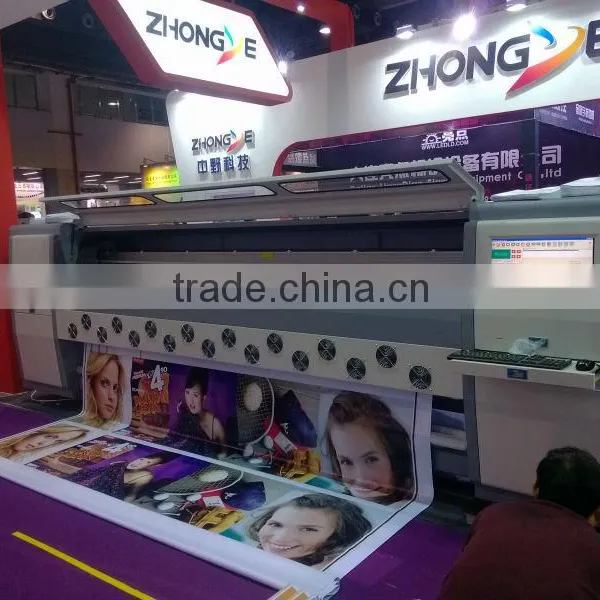

Zhongye 3.2m large format solvent printer machine

3.2m Solvent Printer: adopting SPT and Xaar series printheads. Locating mode is combined with DC motor and raster. This kind of printer is widly used for outdoor printing.It will be your first choice of high-speed & high-resolution

ZY-3200H print head:Seiko510  or Seiko1020     print head qty:4pcs,6pcs,8pcs,12pcs,      resolution:1440dpi

Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor;
Rail:Japanese THK,Tawinese HWIN;
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system



The  technical parameter

Model	ZY-SK3200H
Print technology	drop-on-demand Piezo electric
Printhead	4/6/8/12(SPT510/SPT1020)
Print width	3.2m
Resolution	1440 dpi max
speed	2pass 120sqm/h ; 4pass 60sqm/h ; 6pass 40sqm/h(4/6 heads,half speed)
locating mode	raster/servo
colour	CMYK LC LM
media with	3.20m
Media handle	roll to roll
Media types	Flex banner,vinyl sheet,one way vision,mesh, PVC fabrics,paper,etc
Ink	Solvent/two-year outdoor lifetime
File format	TIFF,JPEG,Postscript 3,EPS,PDF
Working process	Printmon software for windows xp
Rip	Photoprint /maintop
Power supply	50hz/60hz 220v(10%)20A
Operation environment	(Temperature )18-26(Humidity )40%-70%
Size	5.2M*1.4M*1.5M
Weight	1100/1500KG

Usage:Flex banner,vinyl sheet,one way vision,mesh, PVC fabrics,paper,etc

Warranty:
1. one year warranty for parts ( not including head and ink supply system)
2. 24 hours online technical support,
3. lifetime maintain
4. offer engineer man to your country to help client anytime if request

5with CE certificat
