Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > ZY-SK3400 3.4m (4 Colors)large Format Printer

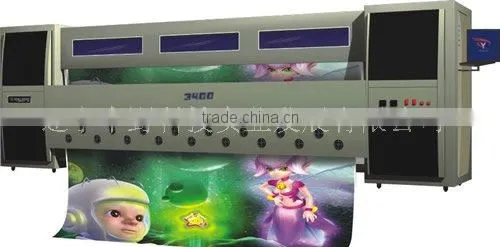

ZY-SK3400 3.4m (4 Colors)large Format Printer

ZY-SK3400 3.4m (4 Colors)large Format Printer thumbnail-1
ZY-SK3400 3.4m (4 Colors)large Format Printer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Liaoning, China
Contact Supplier Request Quote Chat Now
Liaoning Zhongye Technology And Industry Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Letterpress
Place of Origin Liaoning, China
Brand Name Zhongye
Model Number ZY-SK3400
Usage Other
Automatic Grade Semi-Automatic

Specifications

Adopting Seiko printheads. Locating mode is combined with DC motor and raster.





Name

3400(4COLORS)

Class

ZY-SK series

Print technology

Drop-on-demand Piezo electric

Printhead

4/6(spt510/255)

Print width

3.2M

Resolution

1440dpi max

Speed

2pass 56m/h ; 4pass 36m/h ; 6pass 24m/h

Locating mode

Raster /servo

Color

CMYK LC LM

Media width

3.2M

Media handl

Roll to roll

Media types

Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc

Ink

Solvent/two-year outdoor lifetime

File format

TIFF,JPEG,Postscript 3,EPS,PDF

Working process

Printmon software for windows xp

Rip

Photoprint /maintop

Power supply

50hz/60hz220v(10%)20A

Operation environmeng

(Tempperature )18-26(Humidity )40%-70%

Dimesion

5.2m*1.4m*1.5m

Weight

1500Kg/2200Kg



Configuration below is according to different models:

Motor: Japanese Panasonic, Fuji AC servo motor;

Rail:Japanese THK,Tawinese HWIN;

Heating system:front&back double heating;

Feed-in&take-up system:IR controlled auto feed-in&take-up system;

Printhead cleaning system: positive pressure, vaccum

Ink system:German KNF ink supply system,Japanese negative pressure system.
