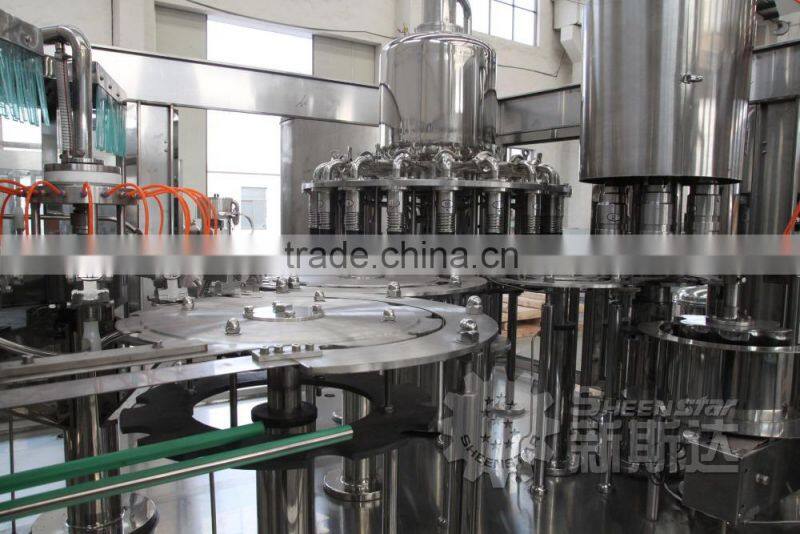

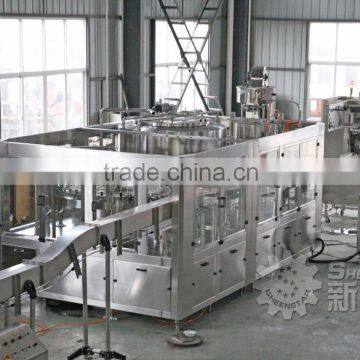

Easy Operate Automatic Fruit Juice Bottling Equipment

 This machine is used in production of juice ,tea packed in polyester bottles. Washing, filling and capping are integrated in one machine.

The most advanced technology from Japan and Germany is employed in the design.

1. The  juice filling and packaging machine has compact structure, complete control system, easy operation and high degree of automation.

2.To change bottle shape, the operator of  juice filling and packaging machine only needs to replace the star-wheel, inlet bottle screw and arc guide plate.

3. The parts contacting media of  juice filling and packaging machine are made from SUS and have no process blind angles to enable easy cleaning.

4.This juice filling and packaging machine has High speed filling valve, guarantees liquid has precise level and no waste is incurred.

5. The juice filling and packaging machine capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.

6.The control system of juice filling and packaging machine has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.

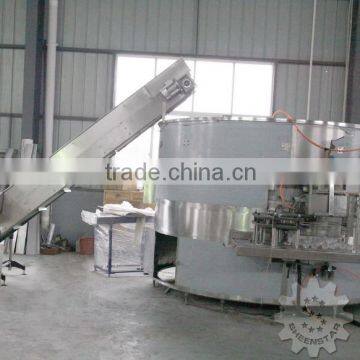

7.The juice filling and packaging machine applies a highly effective cap arranging system that has complete self control and protective device.

8. The juice filling and packaging machine  is equipped with a complete overload protection device that can secure equipment and the operator effectively.

9. Main electric components of juice filling and packaging machine and pneumatic components apply world famous brand products.

10. The operation of juice filling and packaging machine is controlled by an advanced touch-screen that can Fulfill human-machine communication.

Rinsing Part

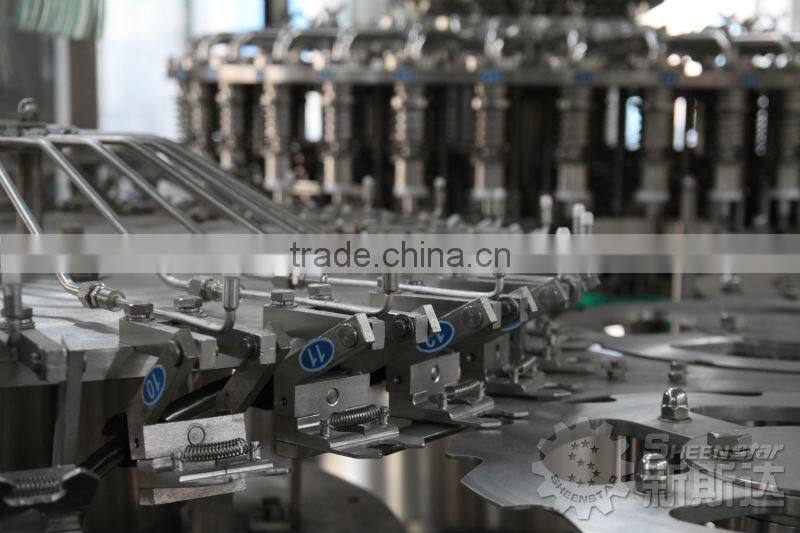

-Rotative rinsing turret one treatment, fixed nozzles, with grippers. -The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip. -After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

Filling Part

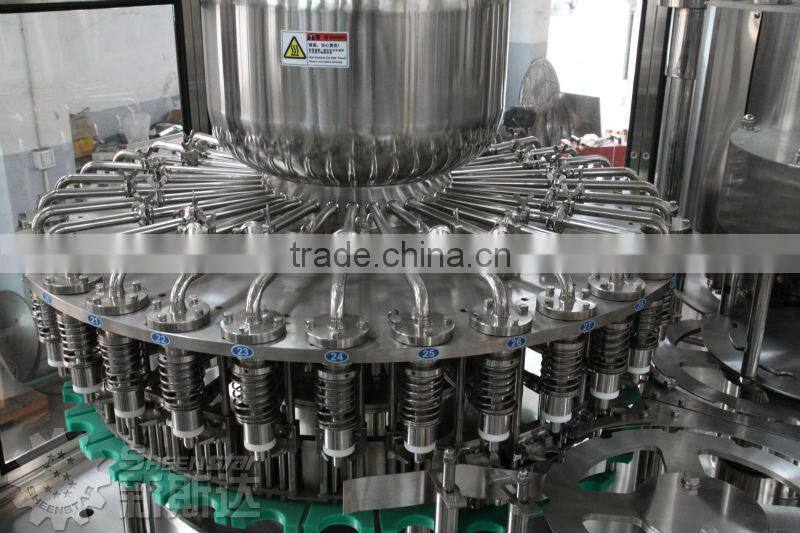

-The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design. -Product bowl is to reduce the loss of heat. -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

Capping Part

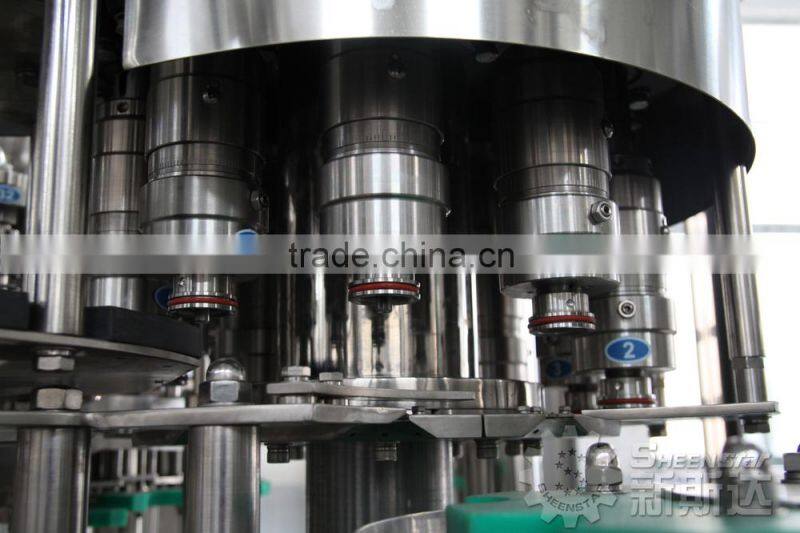

-Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles   -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. -The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Juice Filling Machinery Technology Parameters
