2013 Drainage Pipe Moulds

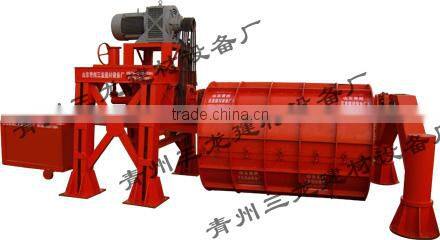

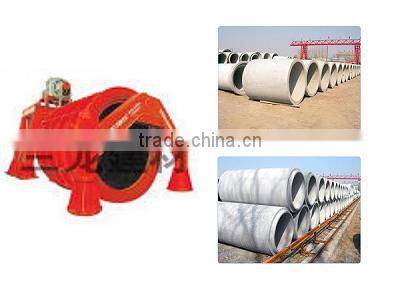

Product Name: GP-type drainage reinforced concrete pipe machine
Model No.: GP120-2
Usage: to produce reinforced concrete pipe
Unit: unit

Declarations

The GP-type reinforced concrete pipe machine is made from the principle of suspension roll forming which can produce concrete pipes from 600mm to 120mm diameter, and 2 meters long reinforced concrete pipe with certain molds. The machine is well designed, so that gives consumers a reliable performance, and a low fault machine. It is also easy to operate. It will produce a good amount of concrete pipes in a short period of time, in order to save consumer's time. There are several molds interfaces available to use on the machine, such as flat, I stand, jack and other commitments. The machines are sold worldwide such as Southeast Asia, Africa, and the Middle East. It is a well know and deeply trusted brand name.

Note: It can roll into concrete pipe from the inner diameter of 300mm of concrete to 600mm, 2000mm long concrete pipes. adding reinforcement cage will be reinforced concrete pipe. Two people can be sufficient for providing the materials, production process is simple, making one concrete can take up to 3-5 minutes. And the operators do not need to be trained for a long time. It is a simple, reliable, low cost machine. The machine is equipped with powerful 15kw motor. Every year a large number of equipment have been exported to Vietnam, Indonesia, Thailand Southeast Asia, Africa, Middle East and other countries and regions.

Concrete Pipe Machine:

Specification: GP600 GP1200 GP1500

Pipe range: 300-600mm 800-1200mm 1000-1500mm

Pipe Length: 2000mm 2000mm 2000mm

Motor Power 15KW 30KW 55KW

Model of Motor: YCT225-4B YCT315-4A YCT355-4A

Diameter of Roller: 140mm 173mm 325mm

Speed of Roller: 83-833 r/min 69-687 r/min 65-653 r/min

Advantage: Invironment protection, concrete materails consupion low, no serosity

Applacation: Highway curlvert, drian off water for municiple administration.
