Help CenterPE PP Spiral Cable Tidy Making Machine / Plastic Wrapping Hose Protector Machine / Spiral cable cover/ Spiral Hose Protector Application:
Motors, generators, transformers, electronic devices, wire harnesses, and for various automotive and aerospace.
Machinery Working Process:
Automatic materials feeding---Extruder--forming and cooling---Haul-off ---punching---winder.

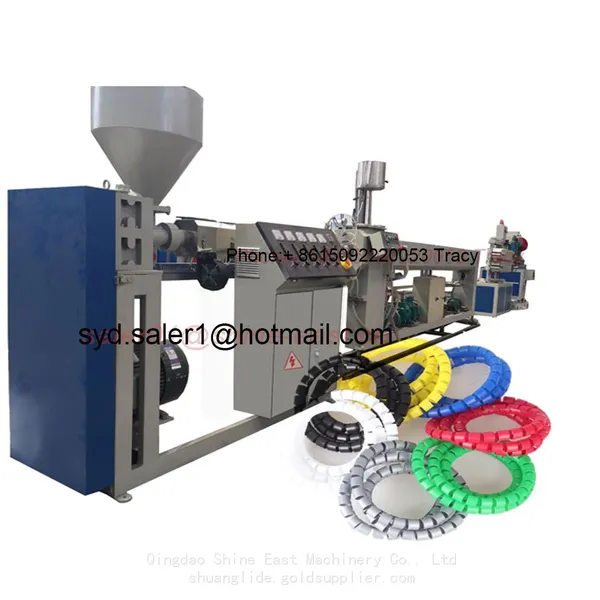

The machine line is consist of SJ-45/30 single screw extruder and die head, vacuum water tank forming machine,haulling off machine, meter counter, punching and winder. The units is compact structure and superior performance. the screw and barrel through optimization design, adopt 38CrMoAiA professional proccessing that can make the whole units has advantages of uniform plasticizing, capacity stability, high output, long service life,etc. The screw adopt cast-aluminium heating, fan cooling type and Precision electronic instrument temperature controller.
Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > China Cable Wire Manager / Protection Sleeve / Spiral Wrap Hose Making Machine
China Cable Wire Manager / Protection Sleeve / Spiral Wrap Hose Making Machine
US$ 23000 - 45000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shine East
Place of Origin:
China
Model Number:
sj45/55/65
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
35 days
Related Products
-
SHINE EAST Flexible PU TPU Suction Hose Prodcution Line Plastic Ventilation Pipe Making MachineUS$ 12000 - 35000MOQ: 1 Set -
Hydraulic Spiral Wrap Hose /Cable Wire Spiral Wrap Sleeve Making MachineUS$ 15000 - 50000MOQ: 1 Set
-
Hydraulic Spiral Wrap Hose /sheath Tube Production Line / Spiral Winding Strip Hose Extruding MachineUS$ 15000 - 50000MOQ: 1 Set
-
Hydraulic Spiral Sheath Tube Production Line / Spiral Winding Strip Tube Making MachineUS$ 15000 - 50000MOQ: 1 Set
-
Flexible PVC TPU PU Copper Wire Spiral Vacuuming Ventilation Hose Pipe Making MachineUS$ 12000 - 35000MOQ: 1 Set
Brand Name
Shine East
Place of Origin
China
Model Number
sj45/55/65
Certification
ce
Type
Pipe Production Line
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
1500kg
Dimension(L*W*H)
12*4*1.8m
Production Capacity
5m/min
Condition
New
Voltage
380V3P50Hz or customized
Application
Other, cable zipper hose
Power(W)
30kw
Pipe Material
Other, PE PP Nylon
Product description

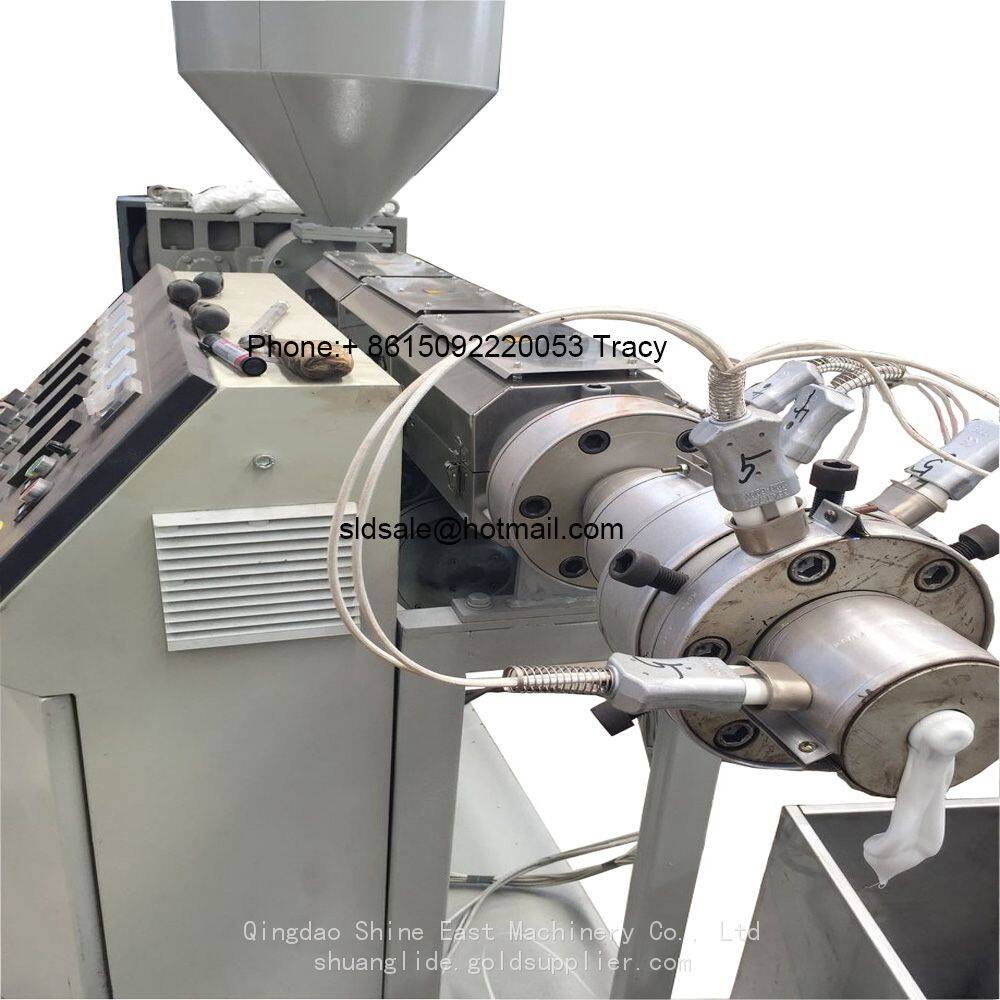

Single screw extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE
extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
>940, the surface of screw is chromeplated Feeding bush with water cooling system

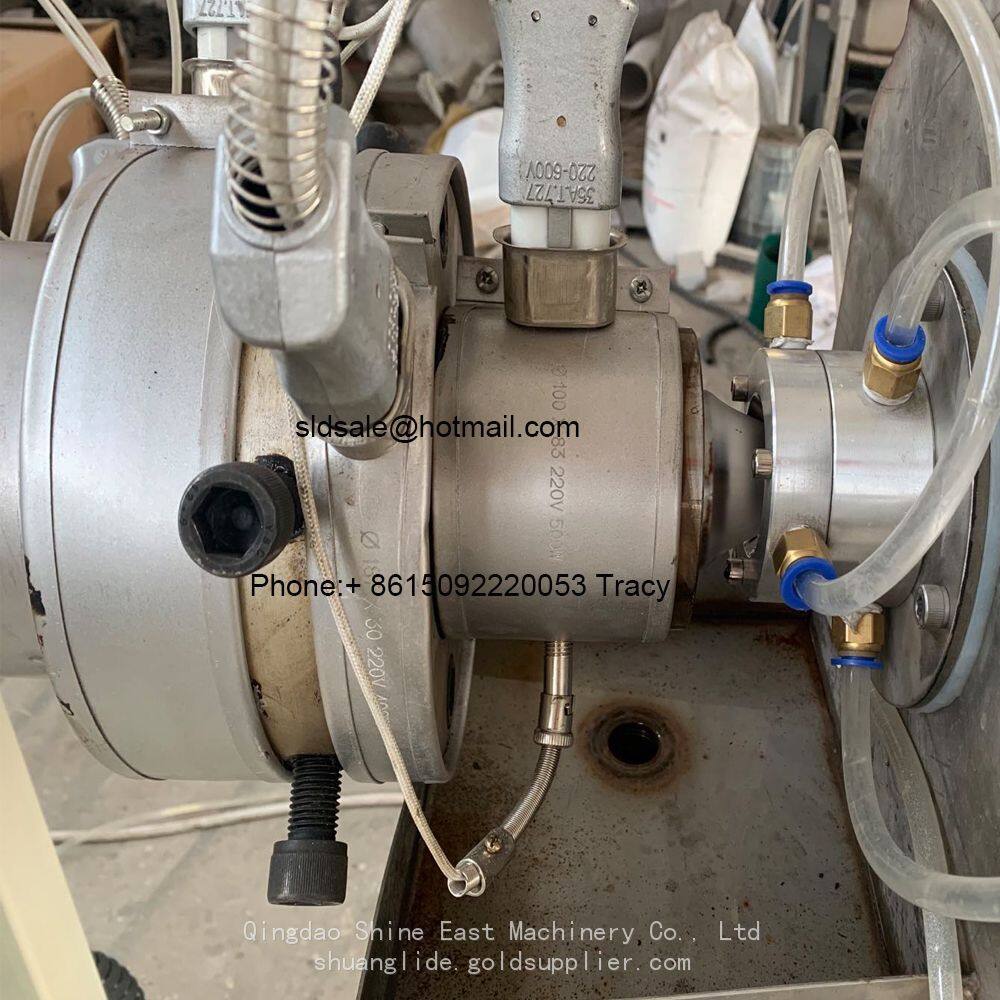

Extrusion die head
Extrusion die adopts 40Cr materialsThe surface has special treatment to ensure it is fluent extrusion

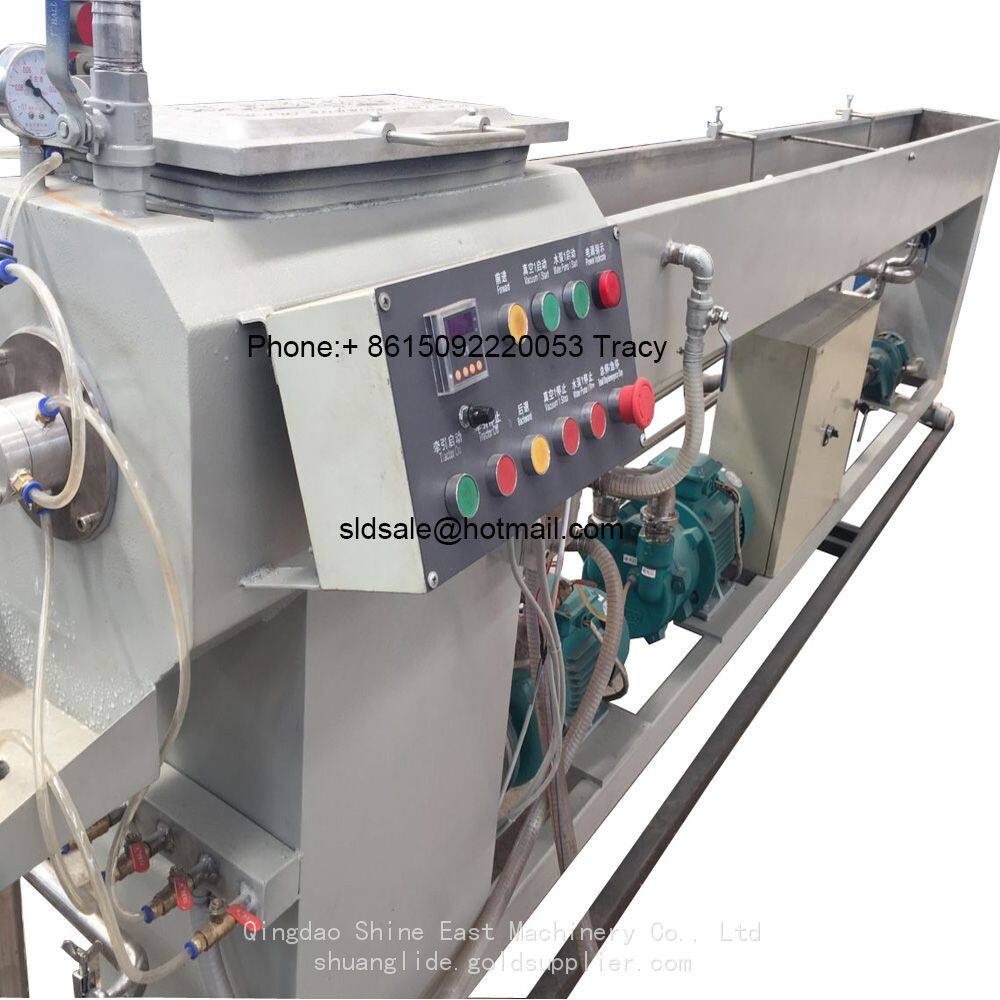

The vacuum water tank is equipmented with frequency motor and reducer.

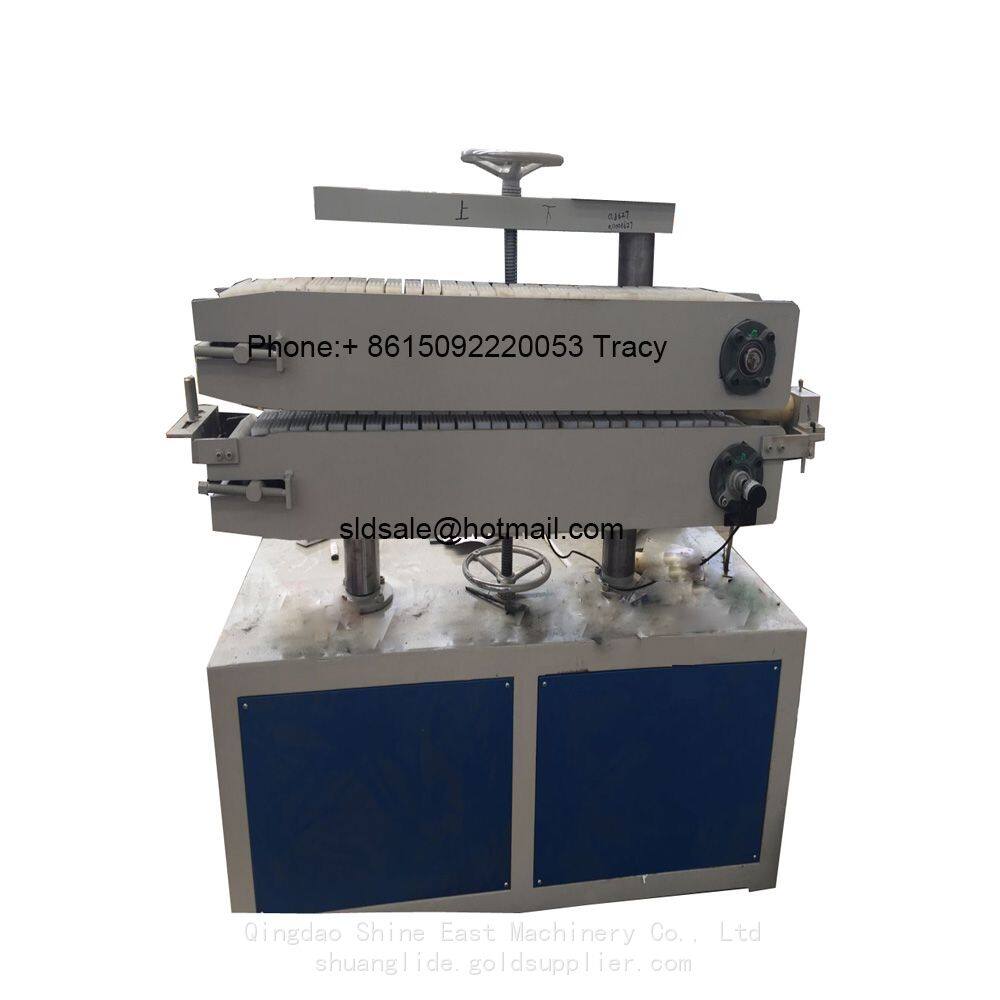

Puller ( haul off)
Special design for high quality protector formingIt could be rotating when pulling protector materials

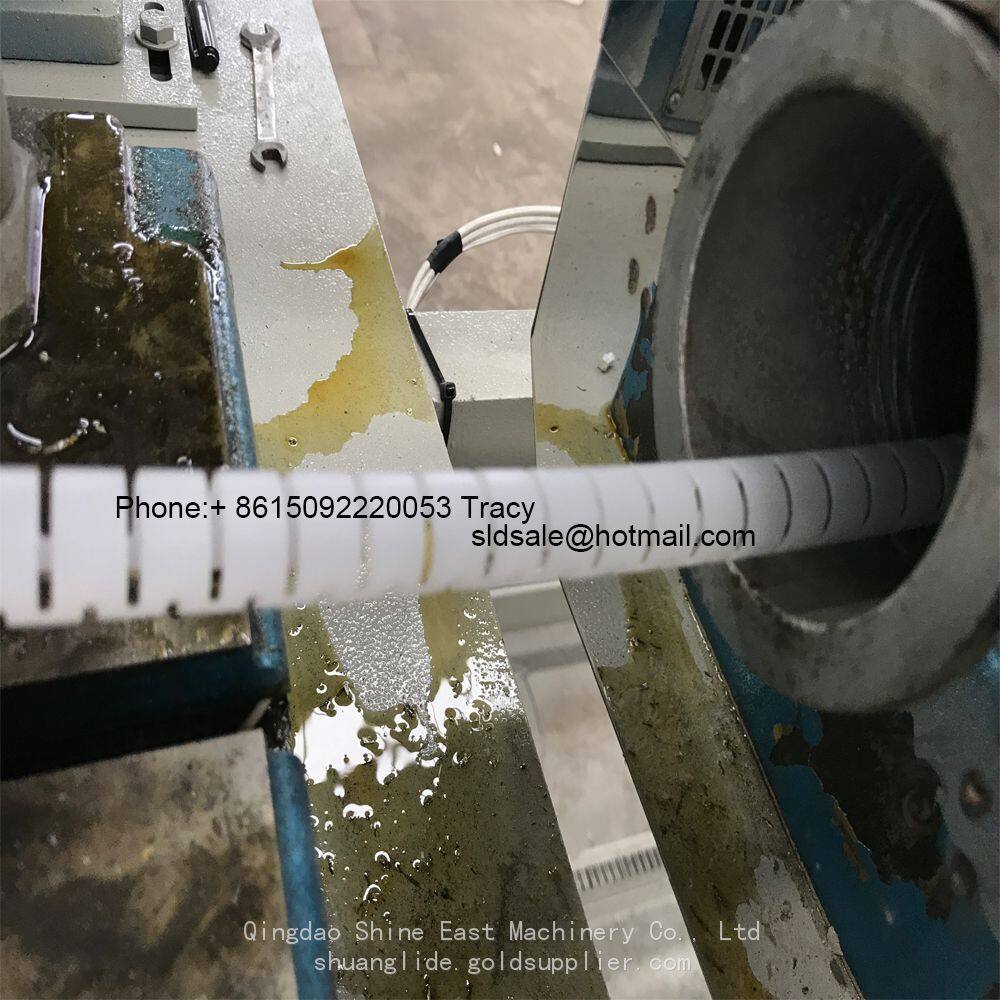

Punching
Punching machine is to make final shape of the cable tidy

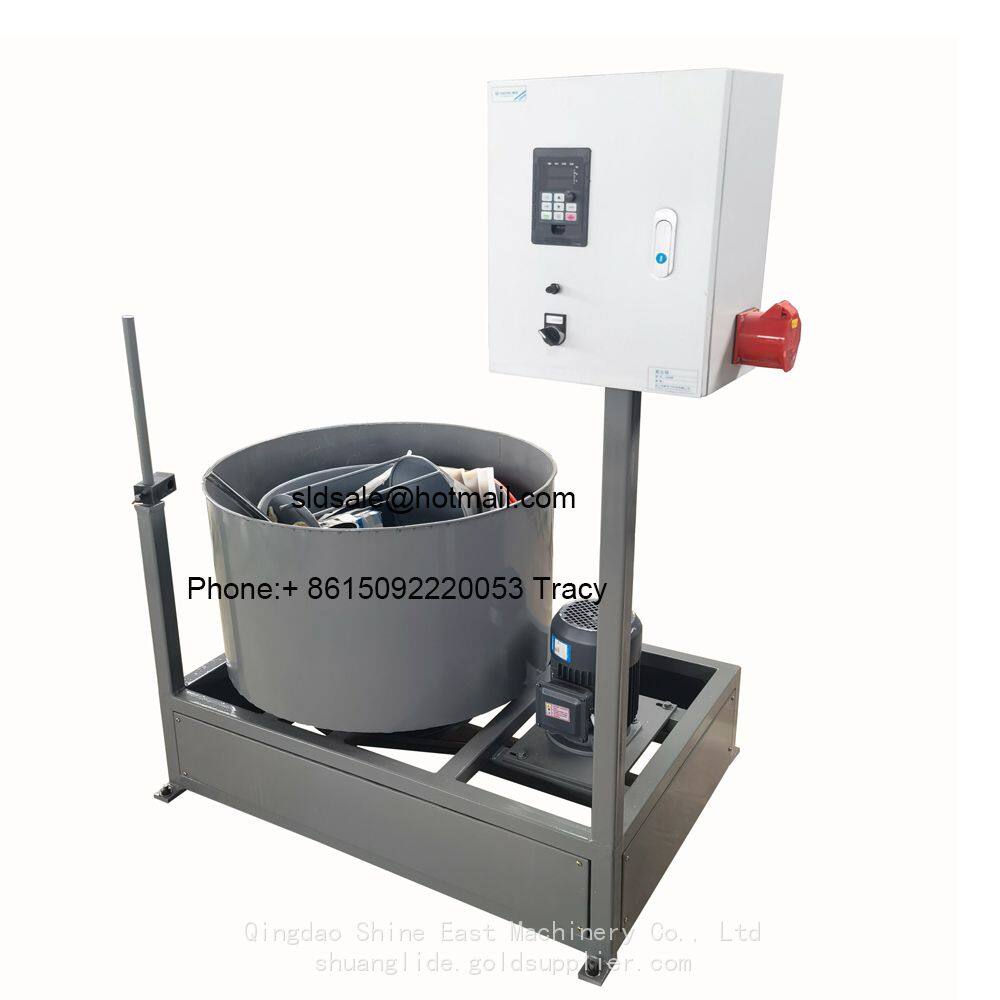

Winder(optional)
It use special designed spiral transport equipment and automatic winding unit.

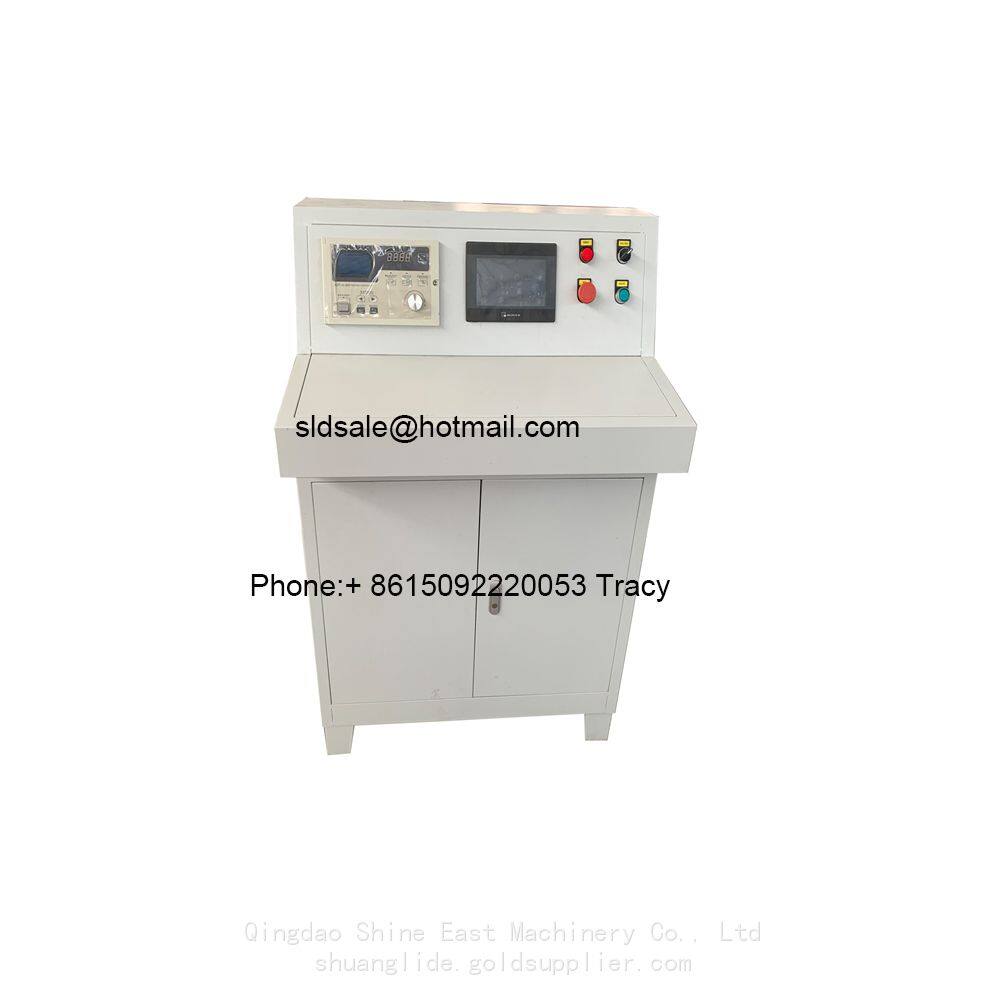

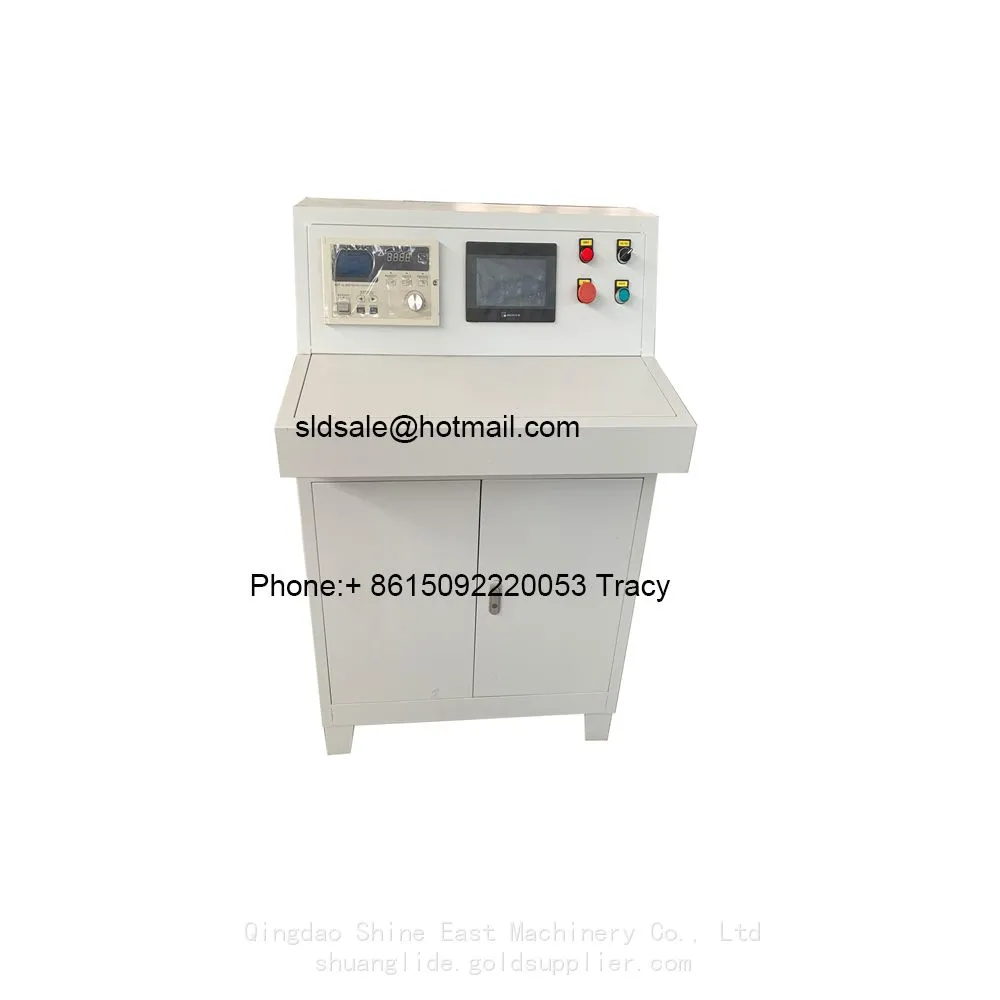

Control box
Temperature controller: OMRONContactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability

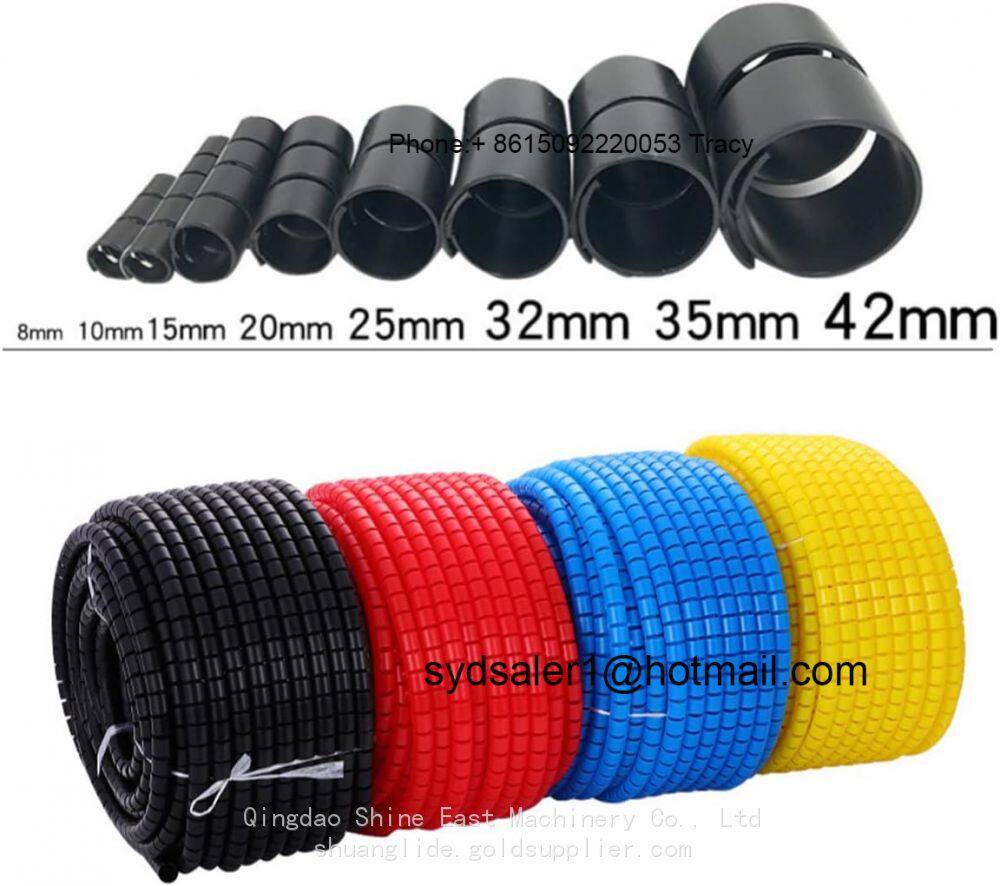

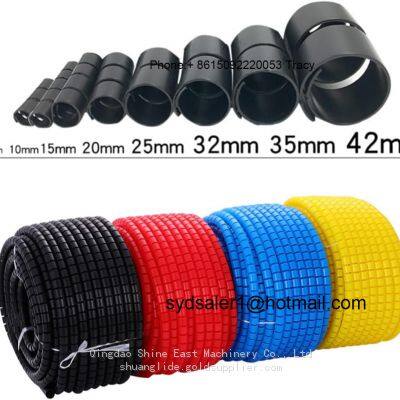

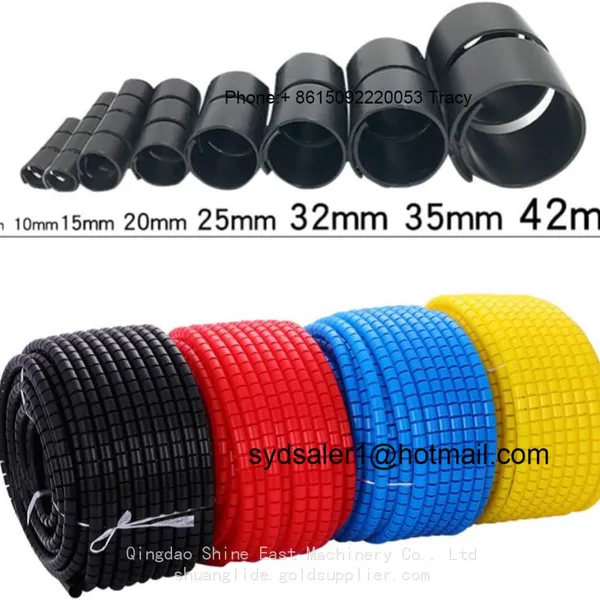

Final product
