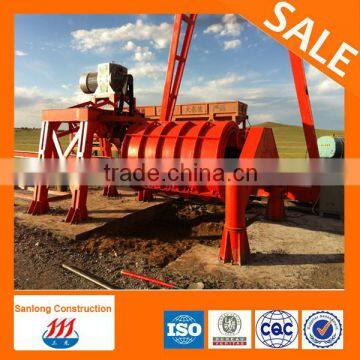

China Golden Supplier Precast Concrete Culvert Pipe Machine
- Qingdao Port China
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Pipe Molding Machine | |
| Pipe Material | Concrete | Application | Drain Pipe | |
| Production Capacity | 1-10Meter/min | Place of Origin | Shandong, China | |
| Brand Name | Sanlong | Model Number | XG series | |
| Voltage | 380V | Power(W) | 55KW | |
| Weight | 5 Ton | Certification | ISO9001:2008 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction of Precast Concrete Culvert Pipe Machine
Brief introduction:
SL concrete culvert drain pipe machine can make reinforced and psc pipes with diameter from 300-2400mm and with length from 1000-3000mm. We can design many kinds of pipe joint, including flush joint(flat mouth type), groove joint, socket and spigot joint(socket and plug mouth type) ect. And all the concrete pipes are widely used in administration drainage, agricultural field irrigation, road culvert and deep water well .
Working principle of concrete pipe making machine:
Roller hanging type concrete pipe machine is a kind of machine to produce concrete pipes and Pre-stress concrete pipe. This machine use the roller to support the pipe mould,and produce roller force to the concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force. And when the mould with the inner concrete pass on the roller, the concrete between the mould and roller will be compacted solid to form a pipe(This machine uses the rotation of roller axle and steel mould to produce rolling pressure and centrifugal force and makes the mixed cement material shape into a pipe).
Advantages of concrete pipe making machine:
(a) short production cycle :because of the good effect of the roller to compact the concrete, every pipe just need 10 minutes with high speed roller rotation.
(b) This pipe use the dry cast material, there will no waste cement mud, then it will not pollute environment .
(c) During the production, the noise is very low, it is about 80-90 dB
(d) The concrete pipe is with high pressure load and with high production efficiency.
(e) This machine is simple in operation, rotates steadily, is reliable and durable in use, is low in fault rate .
Concete Pipes Types
diameter(mm): 300-2400
length(mm): 1000-3000
Features of roller suspended concrete pipe machine:
The adoption of integrated design is reinforced design of leakproof slurry, no rough edges on which the mouth of pipe joints, easy mold-opening.

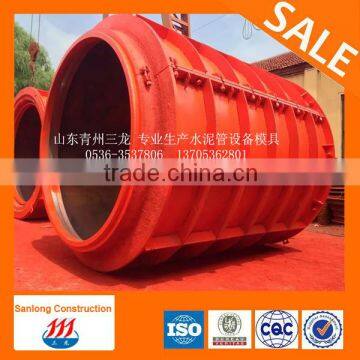

The friction rings in the molds are all made of 45 cast steel with durablity.
The steel plate we use is produced by Laigang which is one of the four major steel mills, and its abrasion resistance will be guaranteed.
The carbon-dioxide arc welding is applied into the all welding. The plasma cutting machine is used for cutting. Welding seam is smooth and nice, and the cutting seam is very exquisite. All above ensure the mold tough and durable and
Application
Centrifugal concrete pipe machine can produce pipes of reinforced type and psc type.
Armored concrete pipes and unarmored concrete pipes are widely used in drainage facility and highway culvert.
Advantage
1) High intensity and beautiful shaped, used as field irrigation, motor-pumped well, small-scale pumping station, draining off water of municipal administration, highway culvert.
2) Easy maintenance and operating, high yield production about 5-6 sections per hour.
Technical Parameters
model | XG1000 | XG1500 | XG2000 |
Pipe diameter(mm) | 300-1500 | 300-2000 | 300-2500 |
Pipe length(mm) | 1000 | 1000 | 2000 |
Roller diameter(mm) | 144-216 | 144-216 | 144-216 |
Rolling speed(r/min) | 62-618 | 62-618 | 62-618 |
Motor power(kw) | 15-125 | 15-125 | 15-125 |
Company Info
Qingzhou Sanlong Construction Equipment Co., Ltd is a professional manufacturer of cement equipment. For over 20 years, our company has developed many kinds of water conservancy machinery. Our cement machinery are as follows: cement pipe manufacturing machines of roller hanging type, centrifugal type and vertically vibration type concrete pipe machine.
Our company provides comprehensive services of coordinated process including choice of equipment, installation and debugging, and trial production. We can also design and manufacture special type cement equipment or molds according to customers’' requirements.
Our products have gained many technical patents and won the Third-Class Award of Scientific and Technological Progress of Shandong Province. Our products have been well sold to all over China, and exported to Europe, North America, South Africa, Asia, and the Middle East. They have been favorably received by the majority of users.
We welcome new and old customers to contact us for business.
Plant Layout Plan
Installation
Delivery
FAQ:
1.Delivery time:within 15 days after receipt of the deposit
2.payment:30% advance payment by T/T, the balance payment by T/T .
3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.For large machine,We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers.
But the buyer will pay for the airtickets, the foods and the hotel.
