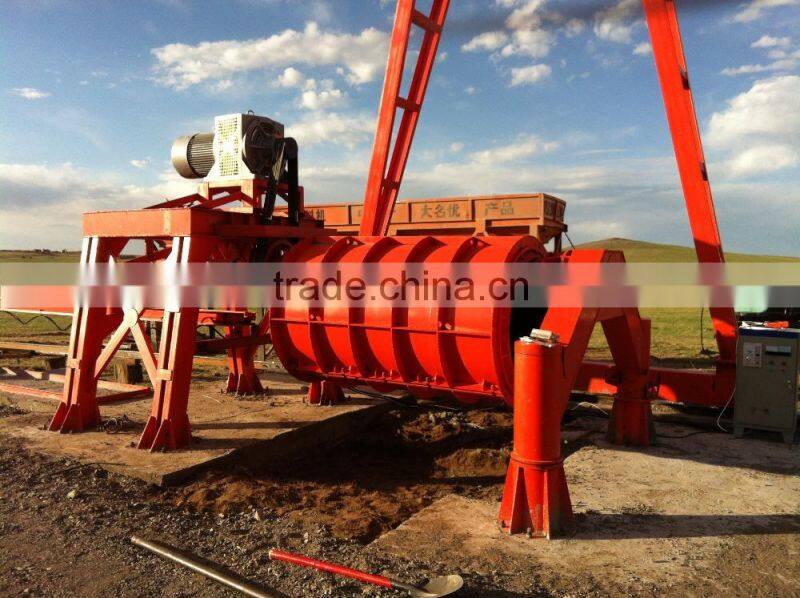

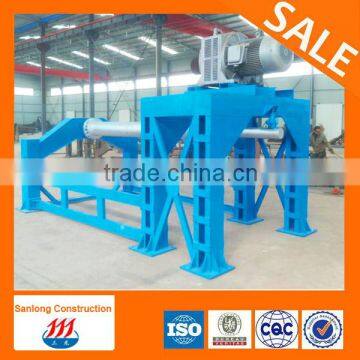

Reinforced Cement Culvert Pipe Machine

Introduction of  Precast Cement Culvert  Pipe Machine

Qingzhou Sanlong Construction Equipment Manufactory Co.,Ltd is a leading manufactory and exporter in the precast concrete machinery.our factory is within 2 hours away from our office, our major products are the Concrete pipe making machine and Mould and other supporting equipment fo concrete pipe production line.

We supply the perfect service from factory layout design, machines and mould design according to different ASTM, BSTM or other Standards, installation and commissioning, trial production, worker training, long term technical support.

Seeing is believing, we extend our warm welcome you come to visit us and our factory, we will show you around our production factory, also our customer factory. more details,

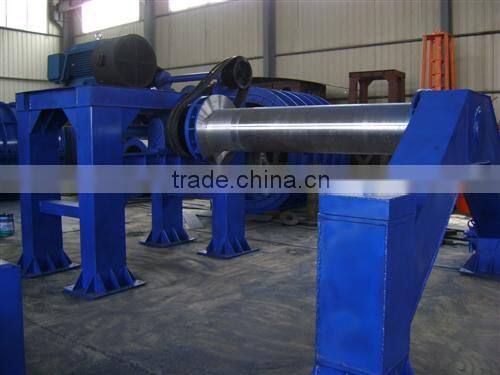

Spun Cement Pipe Making machine XG1500

Steel cylinder:Raw material of the National Standard 6-12mm thickness Steel sheet, We use the CNC Three rollers Reeling machine to make the cylinder, precise in the size, and use spot welding first on the joint, After finished, then use the continuous welding to make a good steel cylinder.

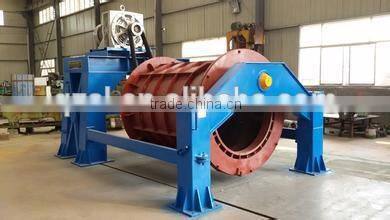

Spun Concrete Pipe Making machine XG1500,86-13651986415

2. Latitudinal Steel:with USA Powermax Plasma power supply, and our CNC machine to cut the latitude Steel. Very beautiful cutting, no rough edge, high accurate size according to the Drawing by USB input.

3.Longitudinal Steel:we purchase the entire 6 meter or 12 meter long , width 100-150mm, thickness 10-30mm Steel strip, and use. Then use the flame cutting at the designed length. It is higher strength, and non-deforming. Which helps the mould longer using life?

4.Cast steel:No.45 Cast steel is the material we use for our pipe end joint. It is processed by sands casting, and machine tools. It is the most critical for the different pipe end joint standards. It is annealing, and relieving of stress, which improves its abrasion resistance?

5.Screws and Bolts:All our screws and bolts are famous brand with international standards, diameter from 10-15mm.

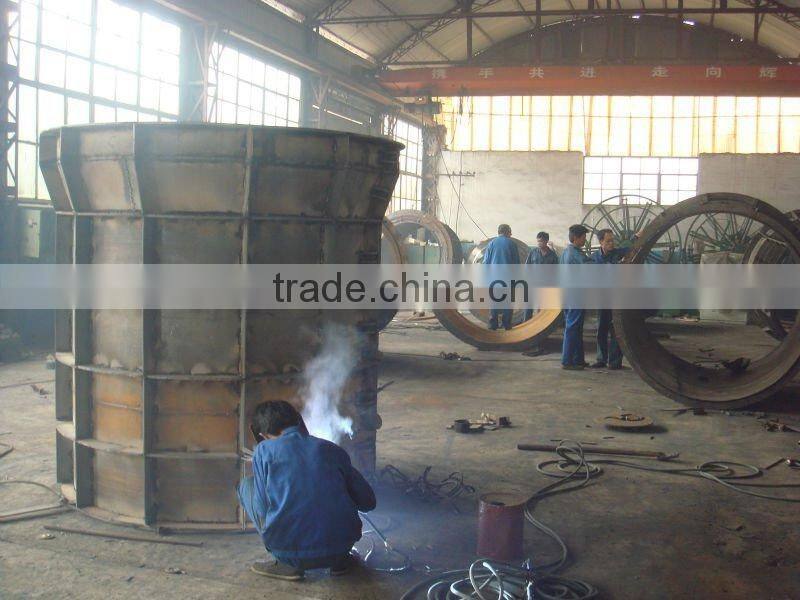

6.Welding and emendation:we all use the Carbon Dioxide Arc welding, good welding quality, and perfect appearance. This is the last stage for the production of steel pipe mould; it is also the most important part. Promise the right size and dimension with customer’s requirement and drawing. And we adopt the male and female joint together, there is never happening of losing cement motor.

7.Anti-rust painting:the good quality oil paint will be used at this stage, the anti-rust painting helps the moulds clean, no rust, and water-proof.

8.Appearance painting: our company will do the final painting before shipping, the different color is available to choose by customers. This final painting helps beautiful looks of the mould. You will love it.

Application

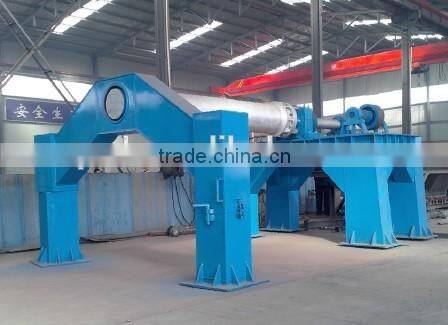

Centrifugal concrete pipe machine can produce pipes of reinforced type and  psc type.

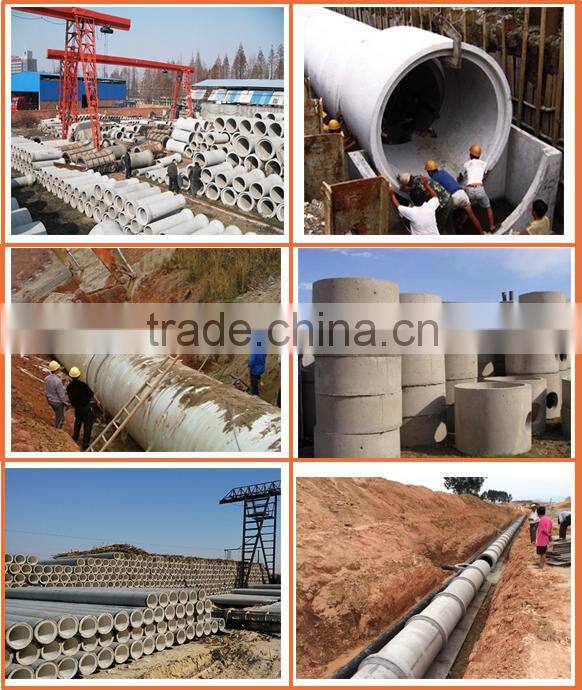

Armored concrete pipes and unarmored concrete pipes are widely used in drainage facility and highway culvert.

Advantage

1) High intensity and beautiful shaped, used as field irrigation, motor-pumped well, small-scale pumping station, draining off water of municipal administration, highway culvert.

 2) Easy maintenance and operating, high yield production about 5-6 sections per hour.

Technical Parameters

Company Info

Qingzhou Sanlong Construction Equipment Co., Ltd is a professional manufacturer of cement equipment. For over 20 years, our company has developed many kinds of water conservancy machinery. Our cement machinery are as follows: cement pipe manufacturing machines of roller hanging type, centrifugal type and vertically vibration type concrete pipe machine.

Our company provides comprehensive services of coordinated process including choice of equipment, installation and debugging, and trial production. We can also design and manufacture special type cement equipment or molds according to customers’' requirements.

Our products have gained many technical patents and won the Third-Class Award of Scientific and Technological Progress of Shandong Province. Our products have been well sold to all over China, and exported to Europe, North America, South Africa, Asia, and the Middle East. They have been favorably received by the majority of users.

We welcome new and old customers to contact us for business.

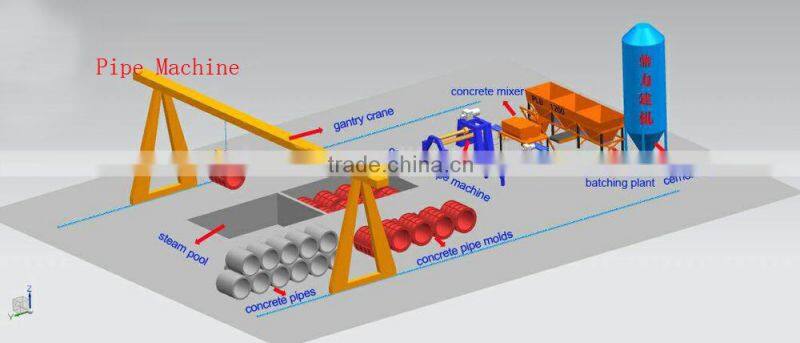

Plant Layout Plan

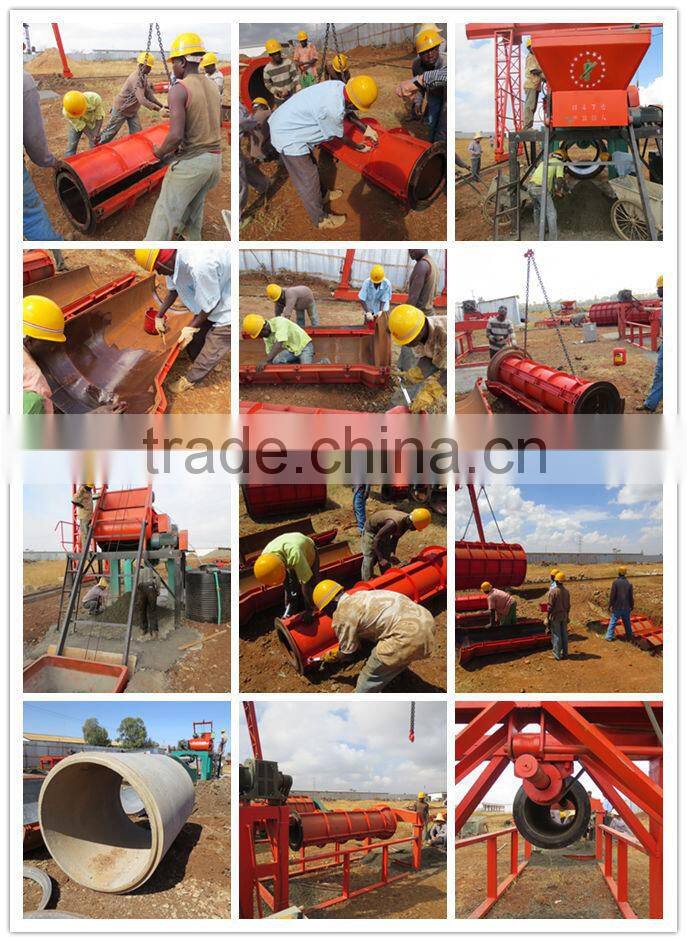

Installation

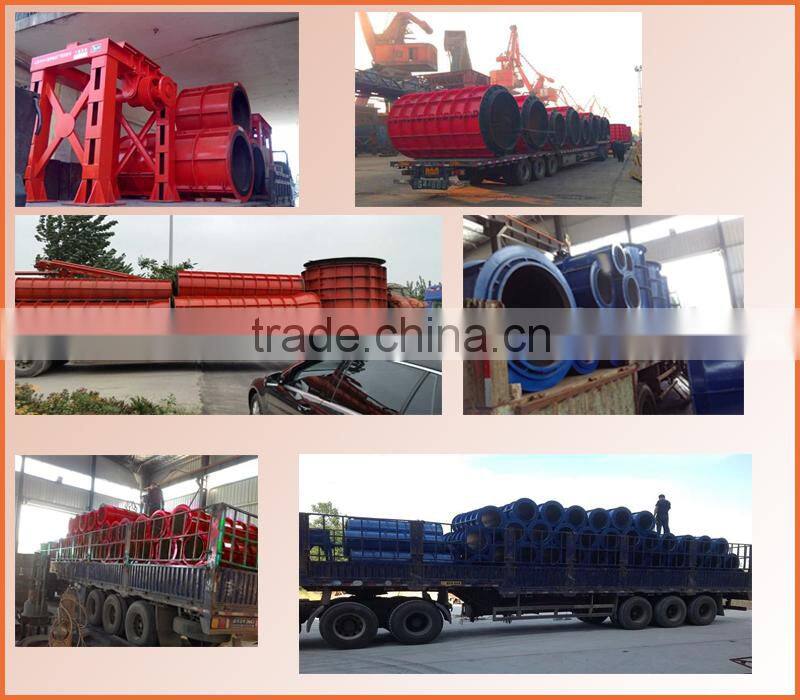

Delivery

FAQ:

1.Delivery time:within 15 days after receipt of the deposit

2.payment:30% advance payment by T/T, the balance payment by T/T .

3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.For large machine,We will supply the design layout; we will dispatch the engineer to your side for the installing    machine, training your workers.

But the buyer will pay for the airtickets, the foods and the hotel.

Customers Visit
