VMC-1060(line Rail) High Quality Cnc All Models of Milling Machine

Name: VMC-1060(line Rail) High Quality Cnc All Models of Milling Machine
Brand: Sunpathway
Availability: InStock

FOB Price

US$ 40,000 - 50,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Sunpathway
Model Number	VMC-1060	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Machine Descritption

Machine Type	Unit	VMC1060(line rail)
Worktable
Worktable(length×width)	mm	1300×600
Maximum load of table	kg	1000
T-slot(number of slot × slot width × pitch)	mm	5-18×120
Triaxial itinerary
Travel for X/Y/Z axes	mm	1000/600/650
Distance from spindle nose to table surface	mm	150-800
Distance from spindle center to column guide surface	mm	700
Feed system
CNC system		FANUC-Oi MD
Rapid shift of axes of X/Y/Z	m/min	24/24/20
Maximum cutting feed speed	m/min	8
Automatic tool transform system(CNC milling without)
Standard tool quality	bundle	Disc type 24
The largest diameter cutter knife/length	mm	Φ80 Tool/300
Tool exchanging manner		Air-operated
Average tool exchanging time	sec	Disc type: 2.5s
Precision
Positioning accuracy	mm	0.008
Accuracy of repeated positioning	Mm	0.005
Spindle system
Spindle speed	r.p.m	8000
Spindle specifications(model/installation diameter)		BT40/150
Drive manner of spindle		Belt drive
Motor power of spindle	kw	11/15
Air pressure
Requirements for air compressing	Kg/cm²	≥6
Air pressure flux	m³/min	≥0.3
Machine specifications
Integrated weight(kg)	kg	7000
Overall dimension(weight×width×height)	mm	3500×2700×2650

Machine Introduction

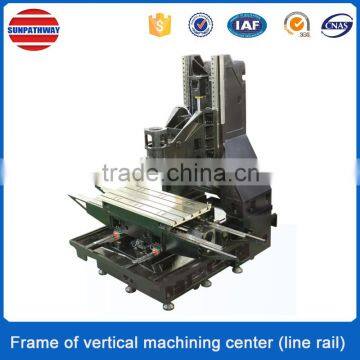

1. For line rail type vertical machining center,the guide rails of machine tool are from HIWIN or PMI. Machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle.
2. Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision.
3. The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, ensure the precision and lengthen the working life of machine tool.

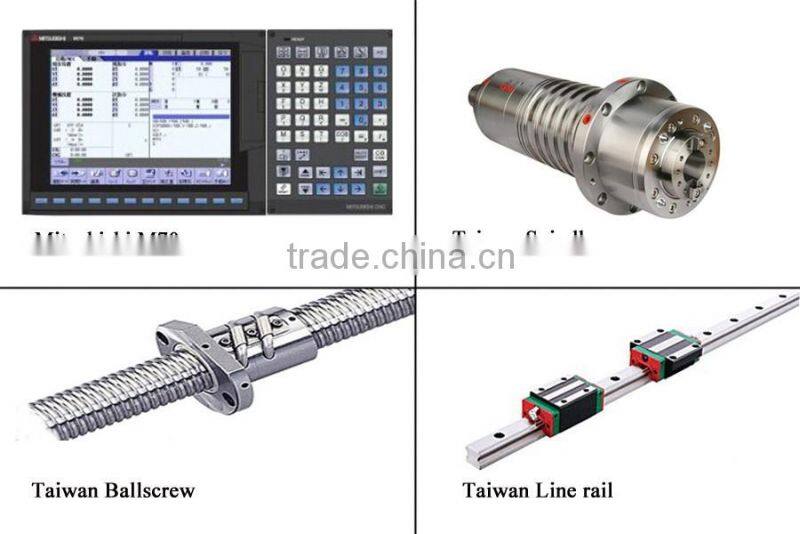

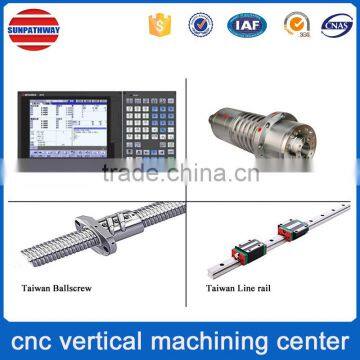

* Use Japan Mitsubishi,Fanuc or other international brand control system
* Use Taiwan Royal or Puson Spindle
* Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool
* Use Taiwan Deta 24 arm type tool changer
The forth axis and Chip conveyor, Renishaw tool guage are optional

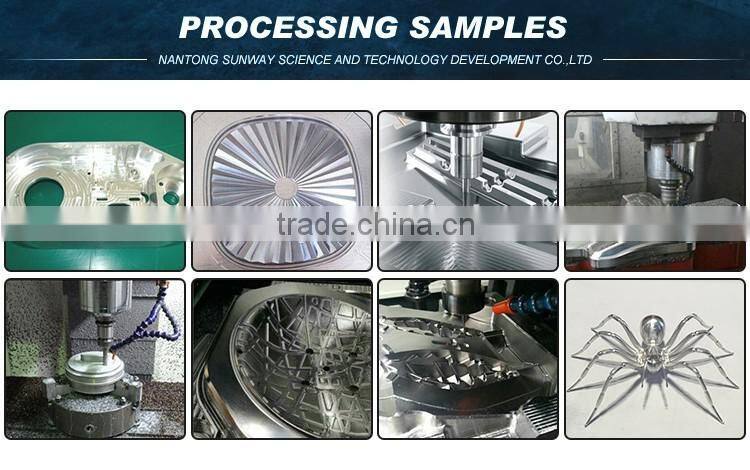

Partial Workpiece

Precision Test

Packaging & Shipping

Our Customers

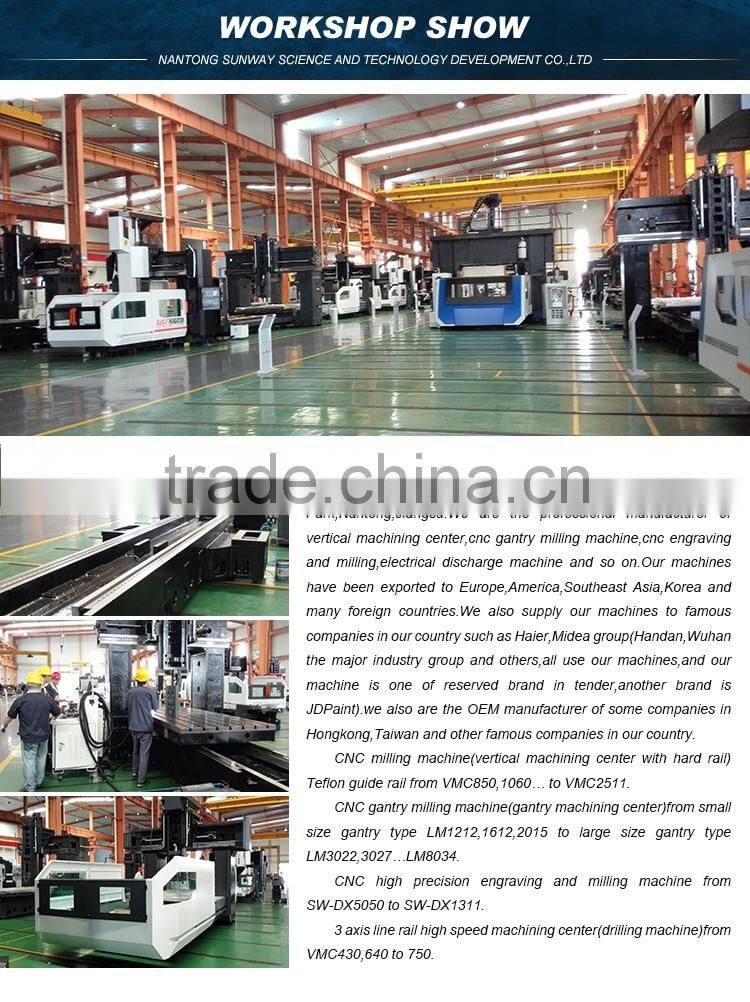

About Sunpathway
