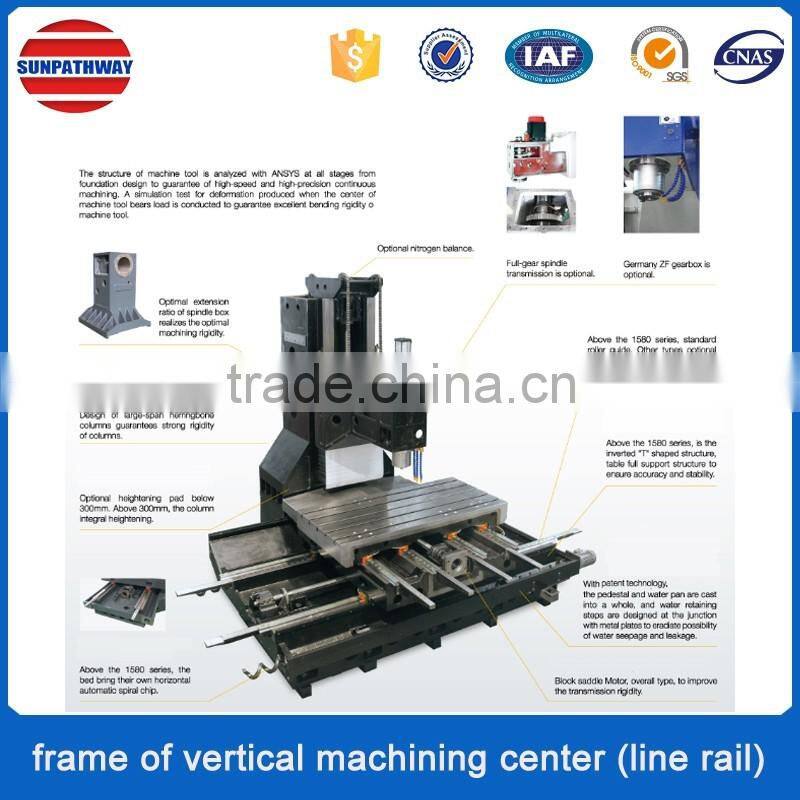

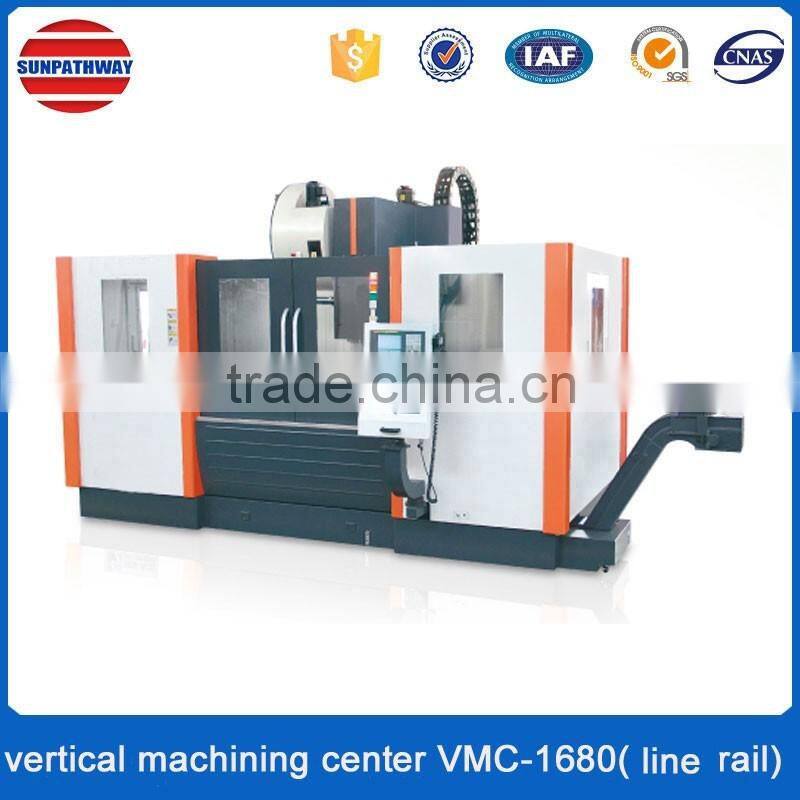

vertical machining centre operations VMC-1680 (line rail)

Machine Type

Unit

VMC1680(2 line rail)

Worktable

Worktable(length×width)

mm

1800×800

Maximum load of table

kg

2000

T-slot(number of slot × slot width × pitch)

mm

5-22×150

Triaxial itinerary

Travel for X/Y/Z axes

mm

1600/800/750

Distance from spindle nose to table surface

mm

150-900

Distance from spindle center to column guide surface

mm

880

Feed system

CNC system

FANUC-Oi MD/Mitsubishi M70

Rapid shift of axes of X/Y/Z

m/min

20/20/15

Maximum cutting feed speed

m/min

8

Automatic tool transform system(CNC milling without)

Standard tool quantity

bundle

Disc type 24

The largest diameter cutter knife/length

mm

Φ110 Tool/300

Tool exchanging manner

Air-operated

Average tool exchanging time

sec

Disc type: 5s

Precision

Positioning accuracy

mm

0.012

Accuracy of repeated positioning

Mm

0.008

Spindle system

Spindle speed

r.p.m

6000

Spindle specifications(model/installation diameter)

BT50/190

Drive manner of spindle

Belt drive

Motor power of spindle

kw

15

Air pressure

Requirements for air compressing

Kg/cm²

≥6

Air pressure flux

m³/min

≥0.3

Machine specifications

Integrated weight(kg)

kg

13500

Overall dimension(weight×width×height)

mm

4260×3545×3200
