Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Economical Vertical Machining Center VMC850 CNC Machine High Quality

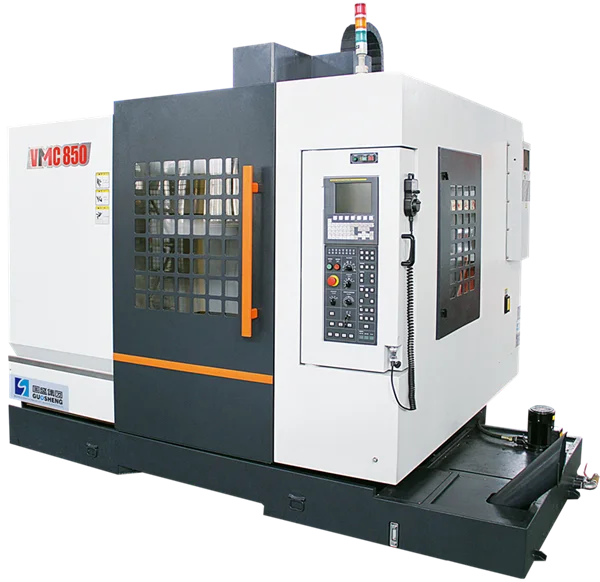

Economical Vertical Machining Center VMC850 CNC Machine High Quality

Name: Economical Vertical Machining Center VMC850 CNC Machine High Quality
Brand: Guosheng
SKU: 117096861
Availability: InStock

Nantong Guosheng Machinery & Power-Generating Group Co., Ltd.

Economical Vertical Machining Center VMC850 CNC Machine High Quality thumbnail-1

Economical Vertical Machining Center VMC850 CNC Machine High Quality photo-1

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Place of Origin:

Jiangsu, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Place of Origin Jiangsu, China

Brand Name Guosheng

Model Number VMC850

Voltage 380V/50Hz

Power(W) 11/15kw

Dimension(L*W*H) 2700*2300*2600

Weight 5000kg

Certification ISO9001 CE

Warranty 12 Months

After-sales Service Provided Overseas service center available

Product Description

Vertical Machining Center VMC850 CNC Machine FANUC System

Parameters

Machine Type	Unit	VMC 650	VMC 850	VMC 855
worktable(length×width )	mm	800×420	1050×500	1050×520
Maximum load of table	kg	500	650	700
T-slot（number of slot×slot×pitch）	mm	3-18×110	3-18×80	3-18×80
Travel forX/Y/Z axes	mm	600/420/500	800/500/600	850/550/600
Distance from spindle nose to table surface	mm	80-580	150-750	150-750
Distance from spindle center to column guide surface	mm	550	620	620
CNC system		FANUC-Oi MD	FANUC-Oi MD	FANUC-Oi MD
Rapid shift of axes of X/Y/Z		30/30/20	30/30/20	30/30/20
Maximum cutting feed speed		12	12	12

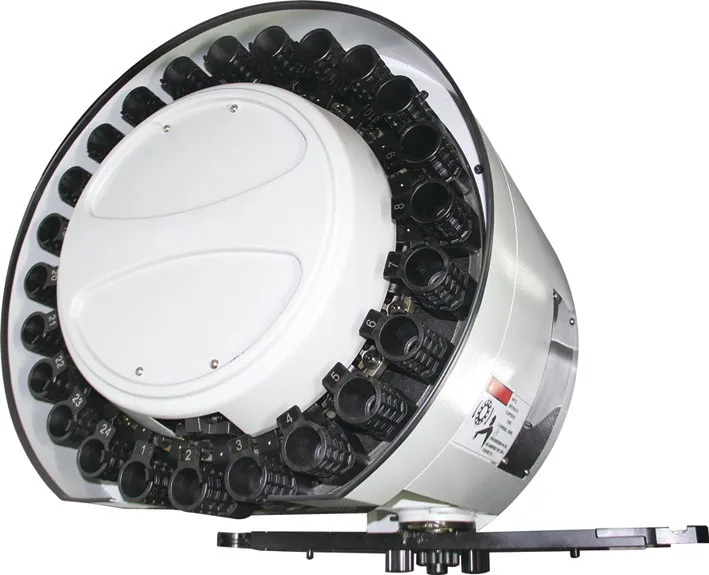

Standard tool quantity		Disc type 24	Disc type 24	Disc type 24
The larges diamter cutter knife/length	mm	Φ80 fulltool/300	Φ80 fulltool/300	Φ80 fulltool/300
Toolexchaing manner		pneumatic	pneumatic	pneumatic
Average tool exchanging time		Disc type2.5s	Disc type2.5s	Disc type2.5s
Positioning accuracy	mm	0.008	0.008	0.008
Accuracy of repeated positioning	mm	0.005	0.005	0.005
Spindle speed	r.p.m	8000	8000	8000

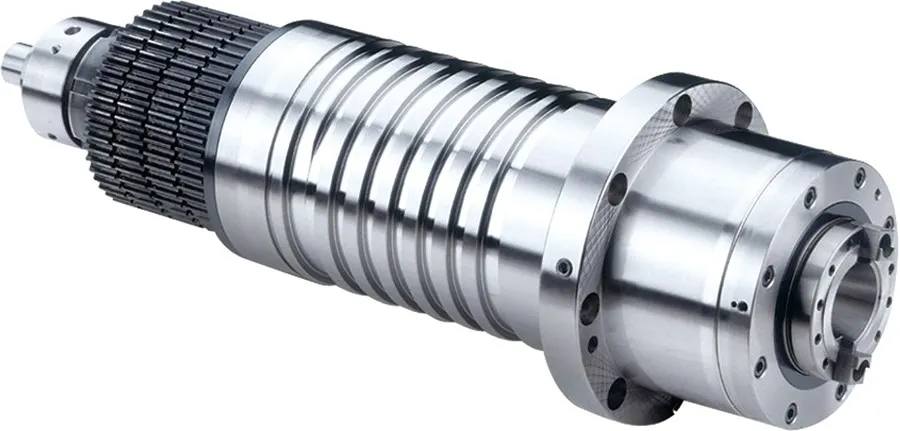

Spindle specifications (mode /installation /diamter)		BT40/120	BT40/150	BT40/150
（Drive manner of spindle）		Belt drive	Belt drive	Belt drive
Motor power of spindle	kW	11/15	11/15	11/15

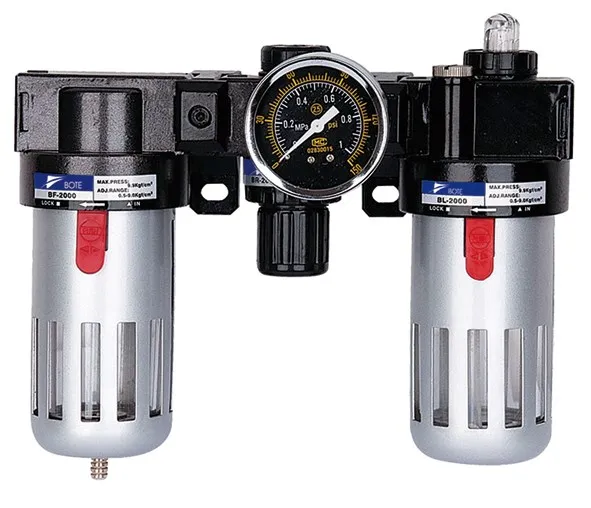

Requirement for air compressing	kg/cm2	≥6	≥6	≥6
Air pressure flux		≥0.3	≥0.3	≥0.3
Integrated weight(kg)	kg	4000	5000	5200
Overall dimension (length×width×height）	mm	2330×2200×2490	2700×2300×2600	2700×2300×2600

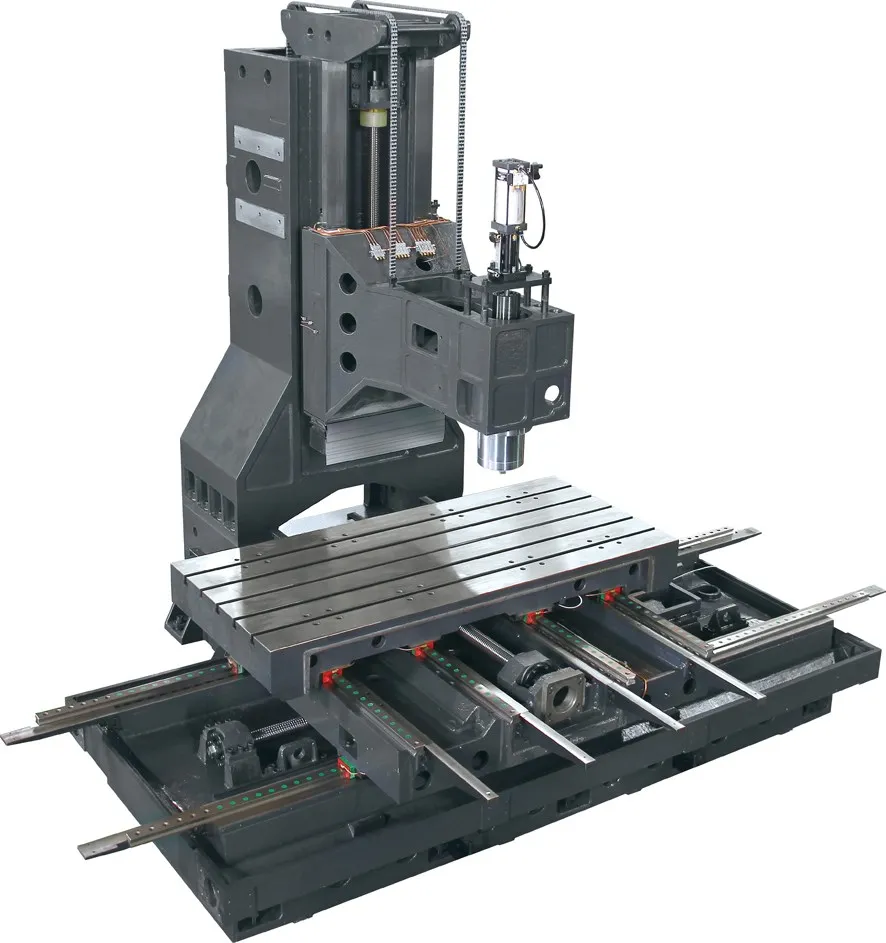

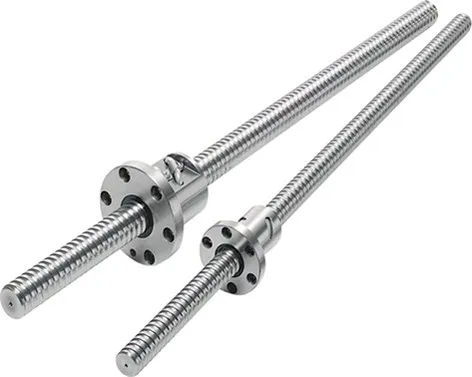

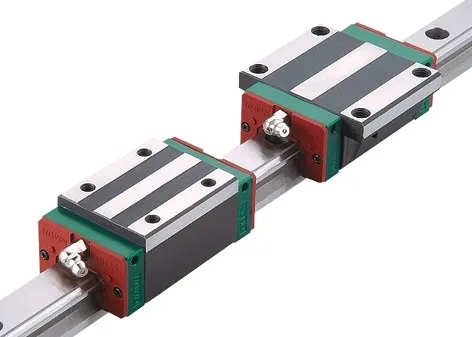

Detailed Images

Why Choose Us

Machine tool industry Top 10 in china

Our machines in China with industry leading.

Advanced technical team from Taiwan

Our technical in China with industry leading.

Gearbox from ZF Germany

Main parts of our machine tool in China with industry leading.

Cost up 5% with performance up 20%

Performance of our machine tool in China with industry leading.

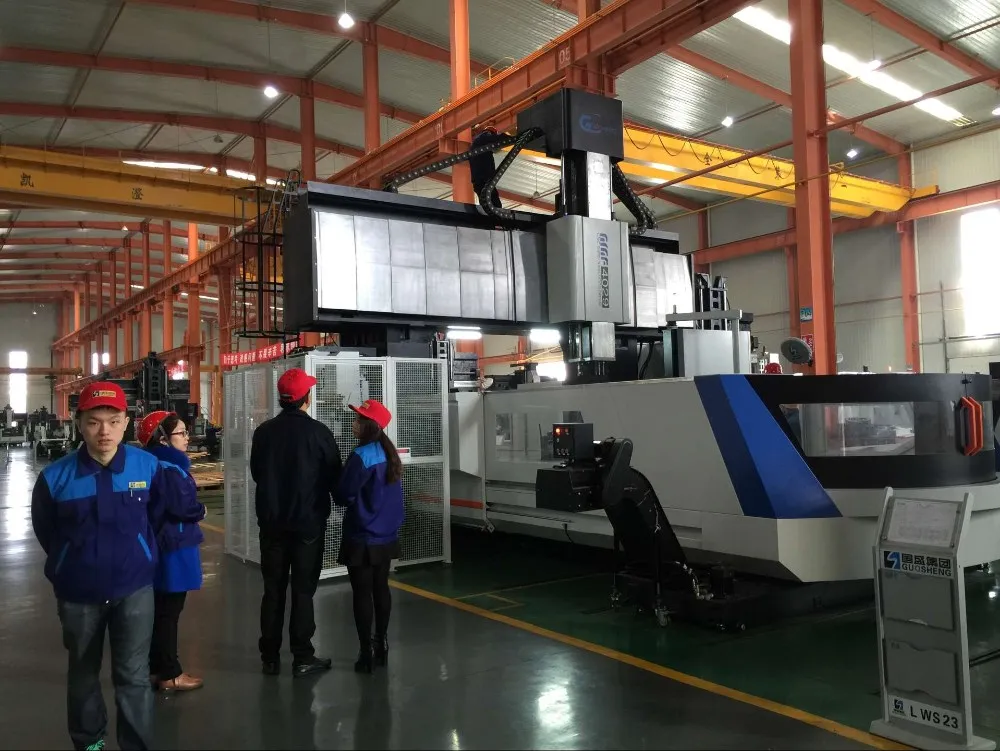

Our Company

Customer Photo

Detection & Packing

FAQ

1. What is your minimum order quantity and warranty?

MOQ is one set, and warranty is one year.

2. Could you please tell me the payment way of your company?

The payment way is general T/T or L/C.

3. Do you have CE or any other certificate?

We have certifates, such as CE,ISO, The product Patent Certificate, Apearance Design Patent Certificate etc.

4. What will you do if the machine can not work during the warranty period?

a) During the warranty period, because of product quality problem, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
b) If the machine problem is not belonging to our machine quality problem, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

5. Can you send the technical personnel to our company and direct our workers for free?

When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes accommodation of personnel abroad in the process of installation, and the seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
