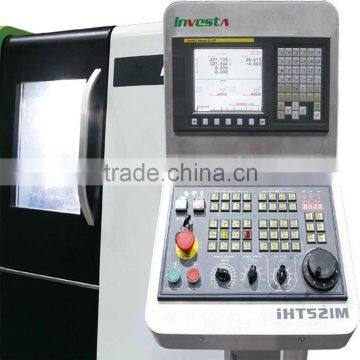

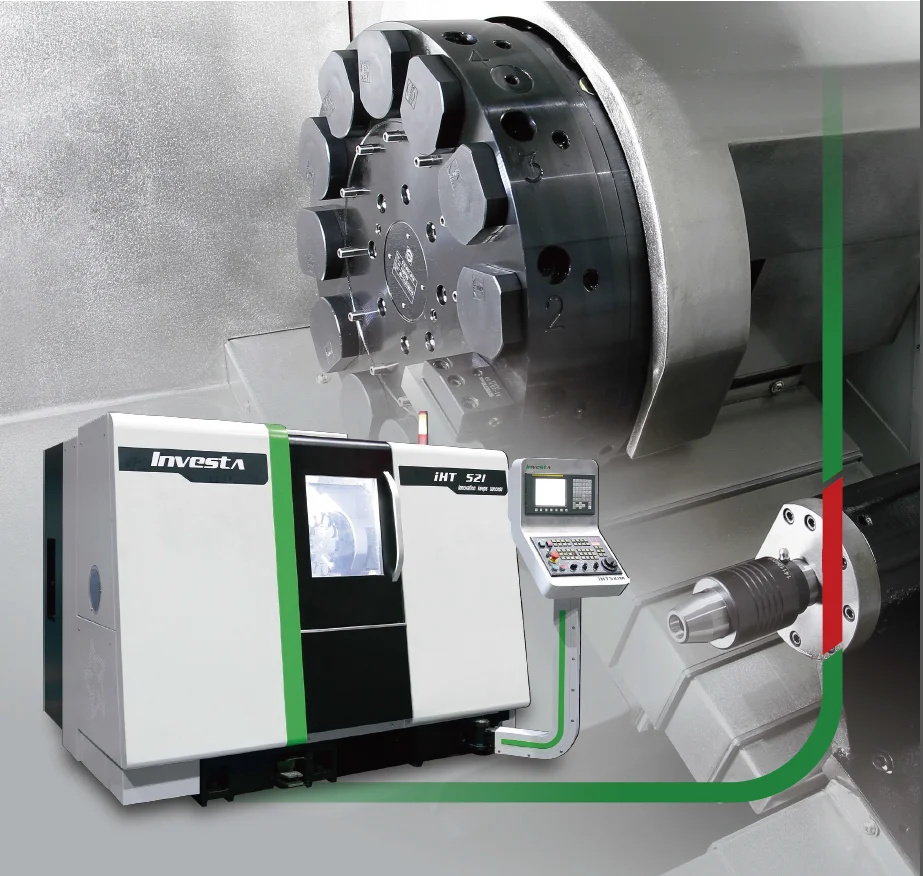

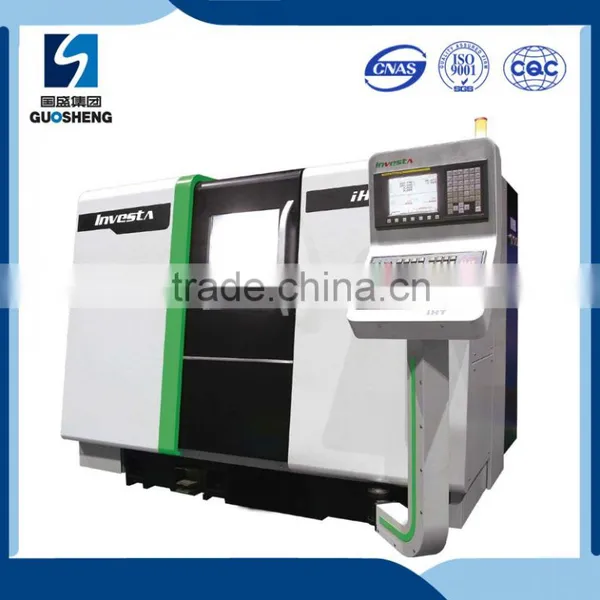

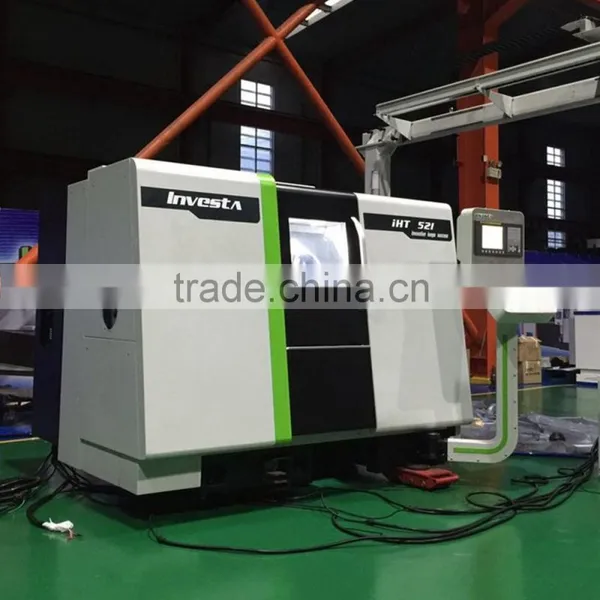

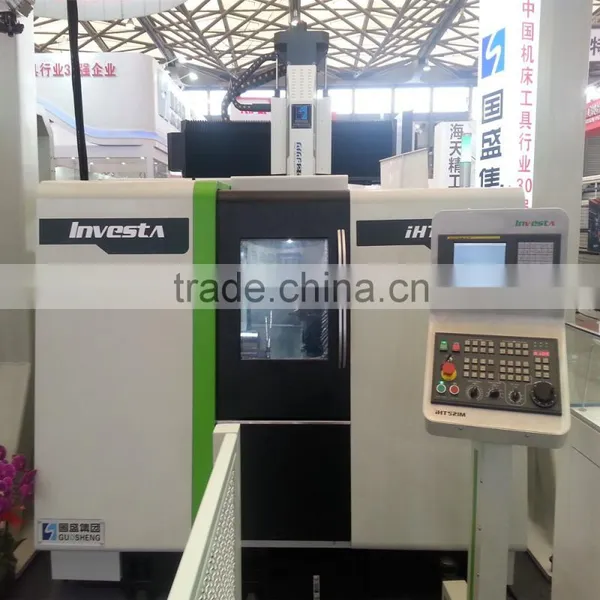

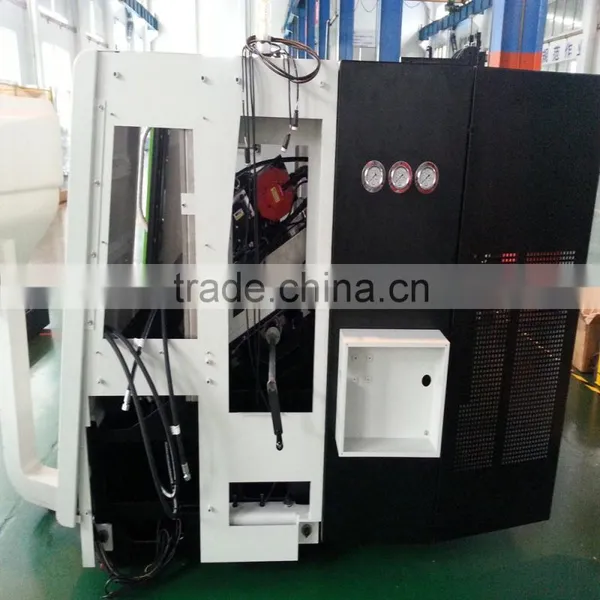

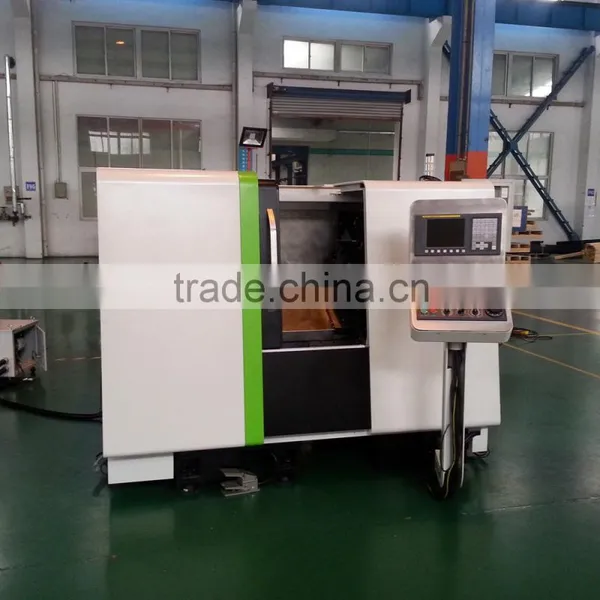

iHT Series Slant Bed CNC Lathe
iHT series of technology
●HT300 is equipped with four solid material gray cast iron bed rail to achieve maximum stability and perfect machining results.
●In the process, maximum stability is achieved by the Φ32 mm by 360mm ball screw drive spaced rails (IHT 1025: 400mm and Φ40 mm)
●The spindle bearings' maximum internal diameter up to 100mm (IHT 1025 as a Φ140 mm), and linear encoders, these ligands are optional. so that the aircraft has the highest accuracy and stability
●12 tool turret VDI 30 or VDI 40 (BMT optional), standard hydraulic control System tailstock
●Standard hollow hydraulic clamping system (solid optional)
●Mobile center frame (optional) and servo-driven tailstock (optional)
Detail Parameters

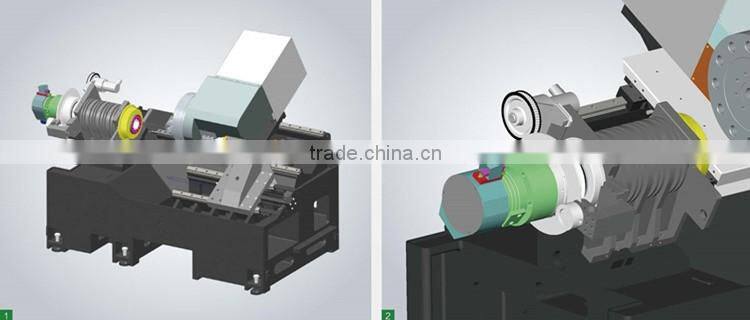

1. High stability, solid cast iron frame, compact design -30 ° / 45 ° inclined bed
2. The self-developed spindle structure

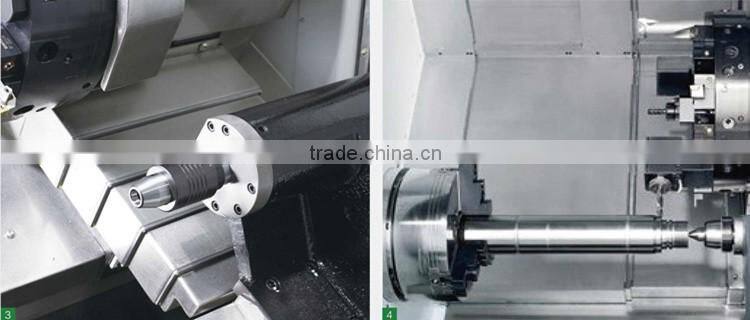

3. With programmable hydraulic tailstock iHT 516 / iHT 521 processing space
4. Make-axis machining on a single power tool equipped iHT 1025

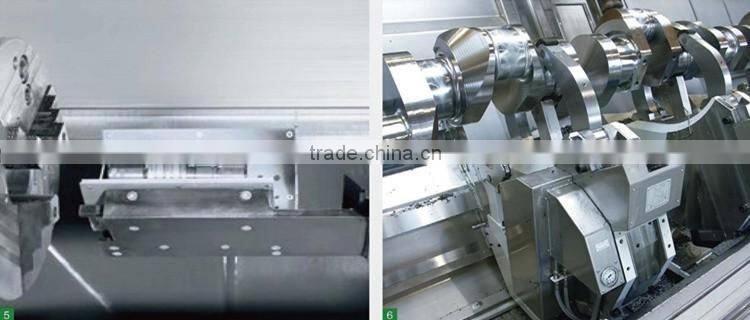

5. The integrated finished parts pick means
6. For iHT 1025, on the vertical rail-centering hydraulic steady rest

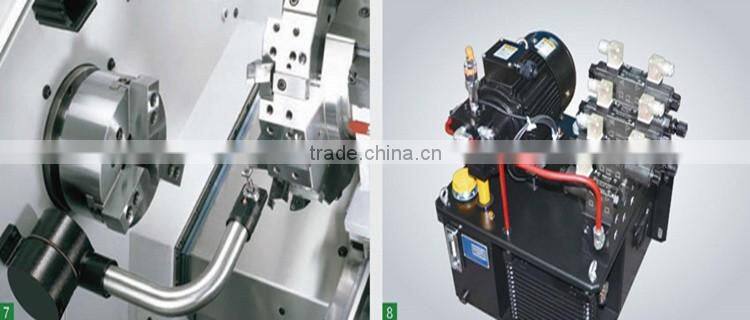

7. The tool measuring
8. Japan NACHI hydraulic system
Using high-quality components from Germany
Such as control systems, measuring systems, hydraulic systems, proximity switches and turret from:
SIEMENS, HEIDENHAIN, Bosch Rexroth, Balluff and Sauter.

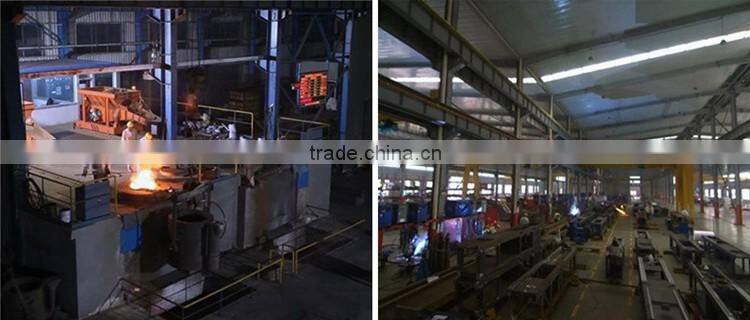

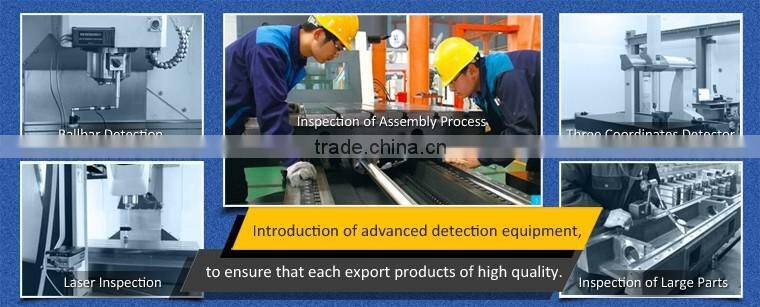

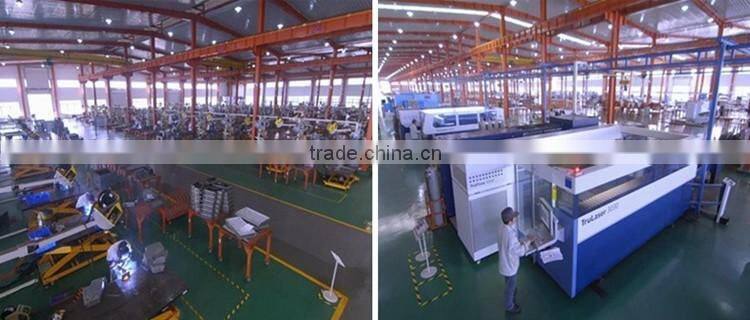

The company possesses advanced precise machining equipments and high-accuracy detecting equipments, providing powerful guarantee for quick realization of advanced technical schemes. The company owns perfect quality management system and has passed the certification of ISO9001-2008 Quality Management System and has been effective operating its quality management system. The company emphasizes on process control, strengthens technological management, optimizes production flow continuously and improves production efficiency to fulfill lean production and enhance enterprise competitiveness.
MV1060 Vertical Machine Center
Workbench size: 1300 x 600 mm
XYZ travel: 1000x600x650mm
Workbench load: 1000 kg
DHM-50 Horizontal Machine Center
Table size: 500x500 mm
XYZ travel: 750x750x750mm
Workbench load: 600 kg
GMF Gantry Machining Center
Gantry Width: 1350-3430 mm
Position accuracy: 0.021 mm
Repositioning accuracy 0.02 mm
