DHM40 Compact Type Horizontal Machining Center

DHM40 Compact Type Horizontal Machining Center thumbnail-1
DHM40 Compact Type Horizontal Machining Center thumbnail-2
DHM40 Compact Type Horizontal Machining Center thumbnail-3
DHM40 Compact Type Horizontal Machining Center thumbnail-4
DHM40 Compact Type Horizontal Machining Center thumbnail-5
DHM40 Compact Type Horizontal Machining Center thumbnail-6

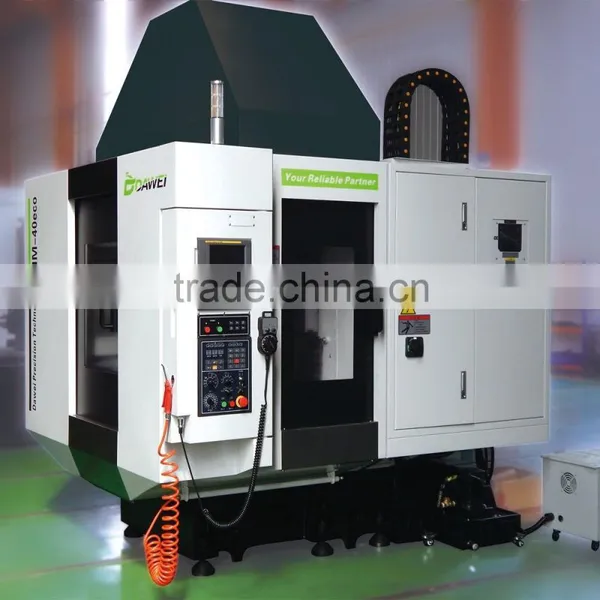

DHM40 Compact Type Horizontal Machining Center photo-1

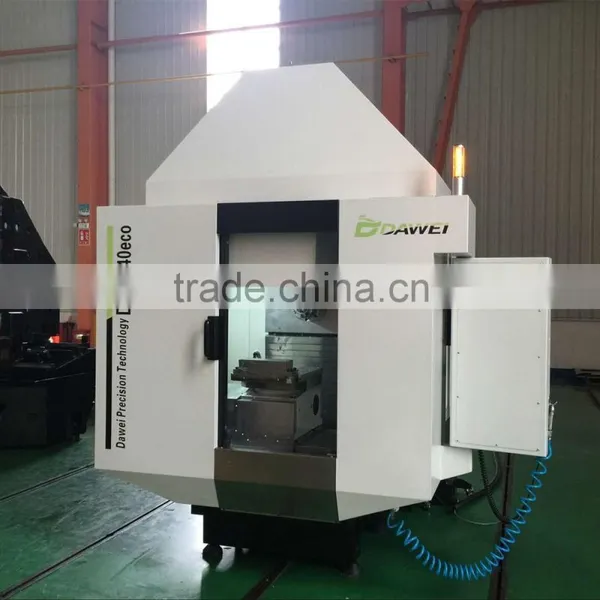

DHM40 Compact Type Horizontal Machining Center photo-2
DHM40 Compact Type Horizontal Machining Center photo-3

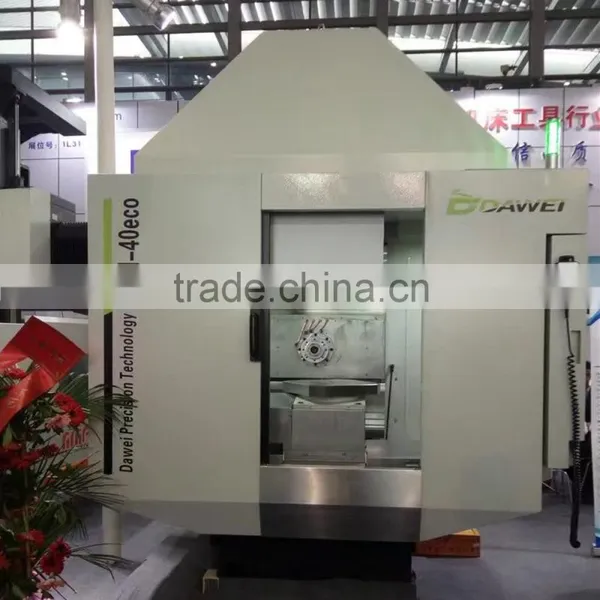

DHM40 Compact Type Horizontal Machining Center photo-4
DHM40 Compact Type Horizontal Machining Center photo-5

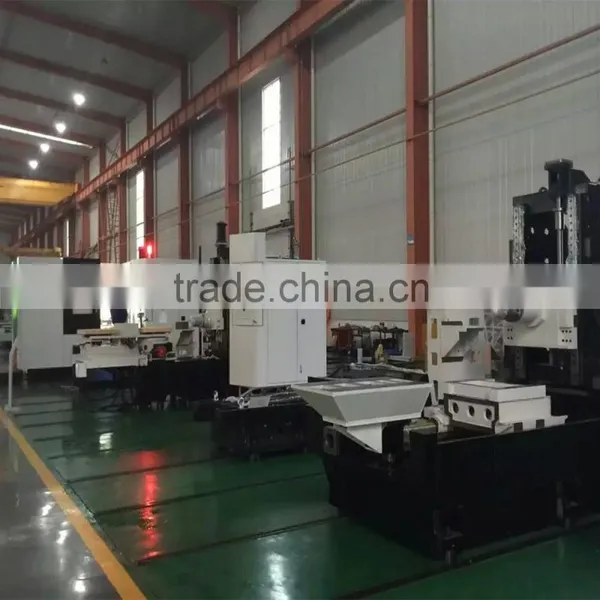

DHM40 Compact Type Horizontal Machining Center photo-6
US$ 70,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Nantong Guosheng Machinery & Power-Generating Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
Place of Origin Jiangsu, China
Brand Name Guosheng & Dawei
Model Number DHM40
Voltage 380V/50Hz
Power(W) Spindle motor: 5.5/7.5 or7.5/11 kw
Dimension(L*W*H) According to the models
Weight 4500/7500 kg

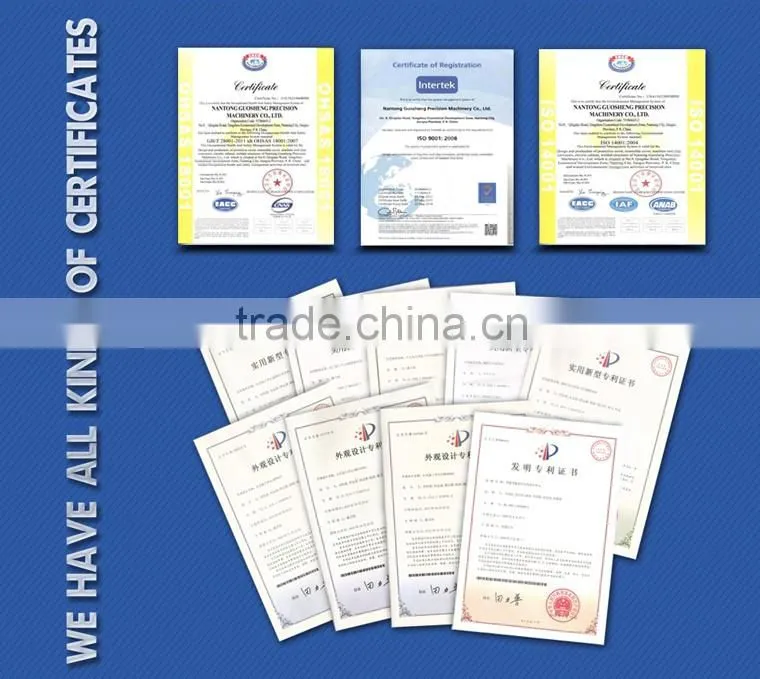

Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Detailed Images

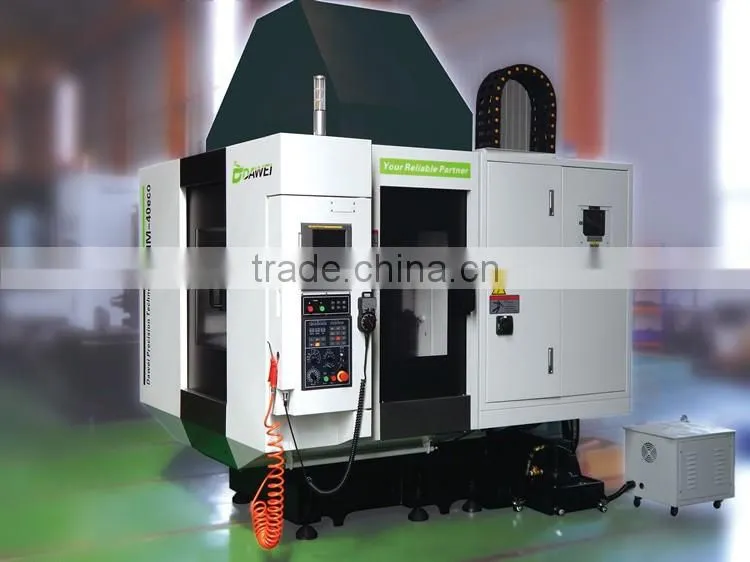

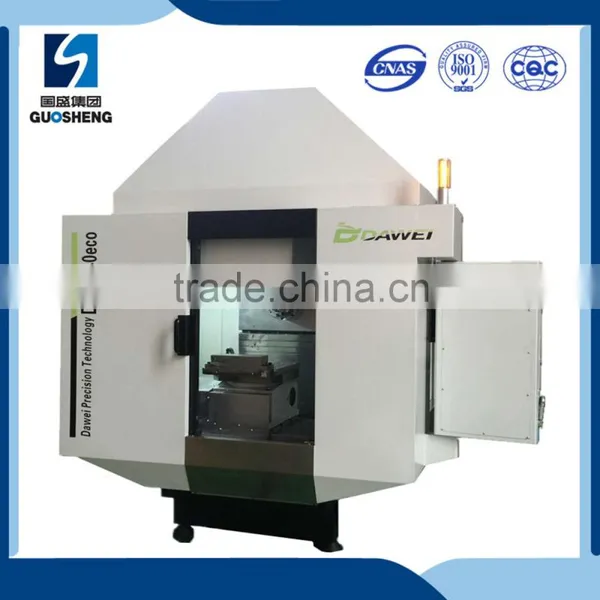

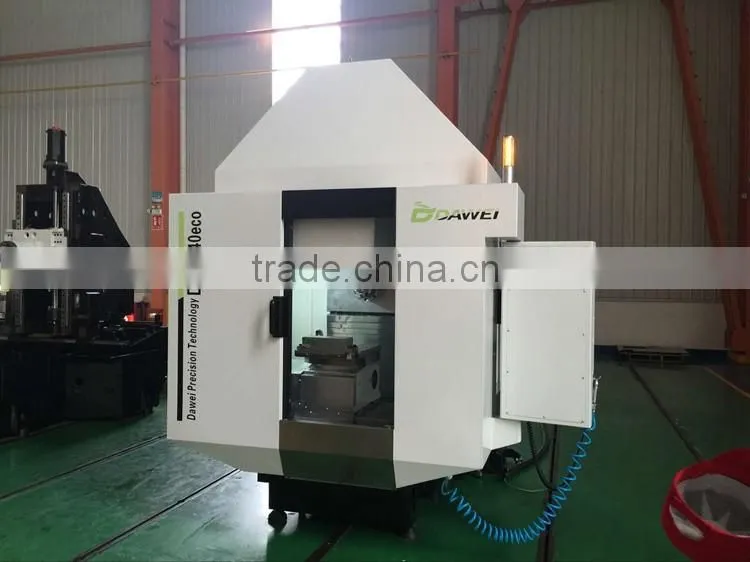

DHM40 Compact Type Horizontal Machine Center


The structure  of the machine frame is been FEM analyzed by ANSYS system to guarantee high stability  under high speed and high precision machining.A deformation testing is simulated under loading simulation to ensure the rigidity and have excellent bending resistance.
Dawei DHM series is suitable for heavy cutting horizontal machining center in design of X axis guide rail with large span section difference，make the spindle and the back supporting rail distance closer，in order to increase the column rigidity，and fully meet customer demand of milling.


Product Description
Model
Unit
DHM40e
DHM40
Travel
X-axis travel
mm
500
600
Y-axis travel
mm
500
600
Z-axis travel
mm
400
600
Spindle
Spindle center to worktable surface
mm
0-500
0-600
Spindle nose to work center
mm
30-430
100-700
Spindle taper
BT 40
BT 40
Rotating speed of spindle(standard)
rpm/min
10000 or 12000
10000 or 12000
Standard spindle
Direct  transmission
Direct transmission
Optional spindle 1
Belt-drive
Belt-drive
Optional spindle 2
Rotary worktable (B axis)
Pallet size (L×W)
mm
400×400
400×400
Min.division angle
deg
1°(standard)/0.001°(optional)
1°(standard)/0.001°(optional)
Reference aperture
mm
Φ55 H7
Φ55 H7
Max.load on worktable
kg
350
350
Division precision
sec
±5''
±5''
Repetitive precision
sec
±1''
±1''
Number of worktables
1
1
Transmission mode
Axial transmission mode
Direct transmission
Direct transmission
Feed speed
Cutting speed
mm/min
1-10000
1-10000
Rapid traverse speed X/Y/Z
m/min
48/48/48
36/36/36
Tool magazine and automatic toolchanger
Capacity of tool magazine
24
24(30/40)
Tool selecting mode
mm
Random
Random
Max.tool weight
kg
8
8
Max.tool length
mm
300
350
Max.tool diameter（no adjacent tools）
mm
Φ85/125
Φ80/150
Tool changing mode
mm
Arm type
Arm type
Tool handle size
BT40
BT40
Spindle & motor
Spindle drive motor
kW
FANUC 5.5/7.5
FANUC 7.5/11
Max.torque of spindle
N·m
26/48
36/70
Precision of machine tool
Locating precision of machine tool/full travel
mm
±0.01
±0.01
Repetitive locating precision of machine tool/full travel
mm
±0.005
±0.005
Others
Air pressure required
kgf/cmª
6
6
Voltage requirement
KVA
31
35
Tank capacity
L
85
220
Machine weight
kg
4500
7500
Floor area
mm
2075x2520
2780x2895
Machine height
mm
3025
2885
Design For Quality

Base X axis present multistep, the distance between spindle and back support rail is closer, to ensure the stability of the machining accuracy; Column span large, whole machine rigid structure is more stable.

DHM Series column is thicker, thickness increases 20% than other manufacturers, and rigidity is more steady.

DHM Series base Z axis anchor support distance is wider, increasing 40%, and have stronger rigidity.

Workbench bearing surface is bigger, and more rigid.

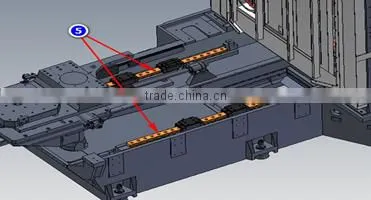

DHM Series using R55 linear roller guide rail, the other manufacturer use R45 or 50, so the line rail is larger, rigid structure and machine precision are more stable.

DHM Series screw are all hollow oil cooled screw, to avoid the screw produces a large amount of heat in the process of movement, deterioration in accuracy of screw.

Application

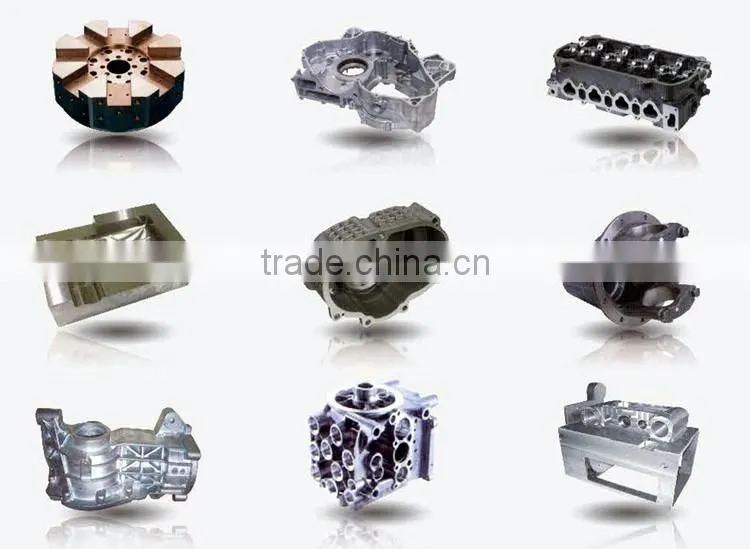

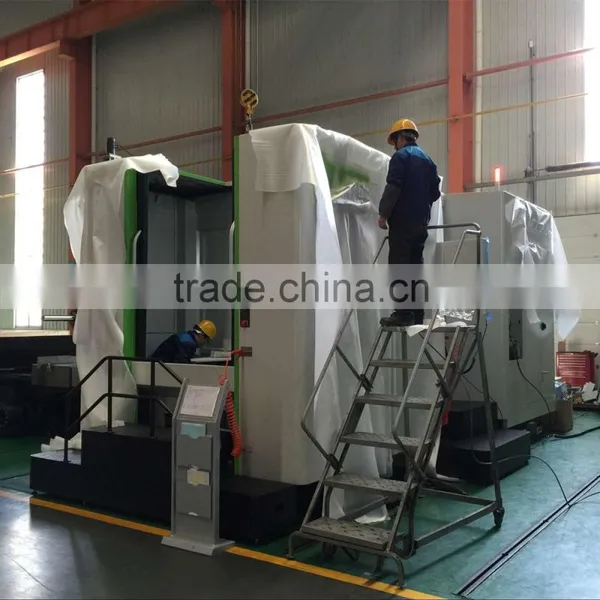

Detection & Packing

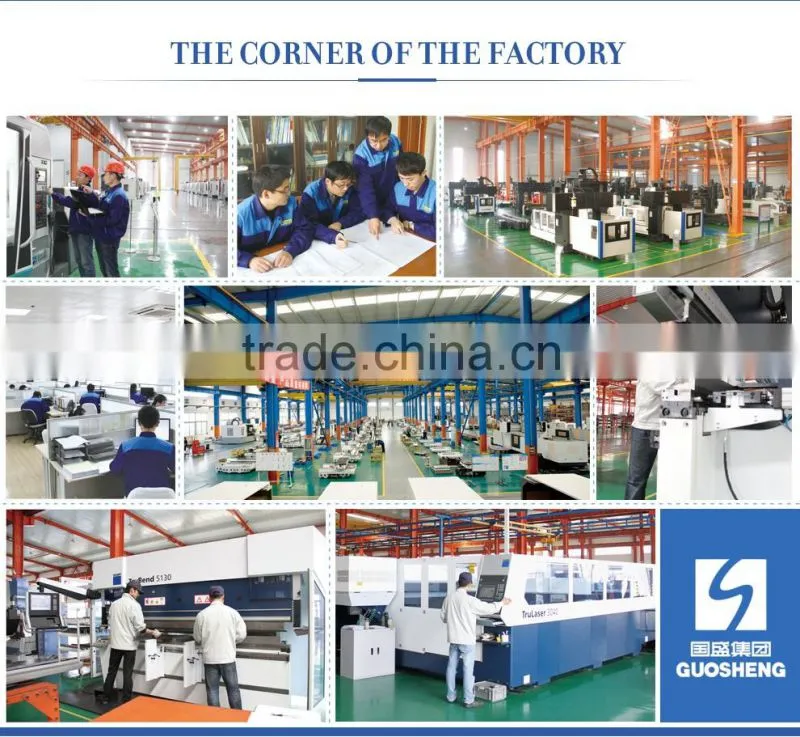

Our Company

Dawei Precision Technology

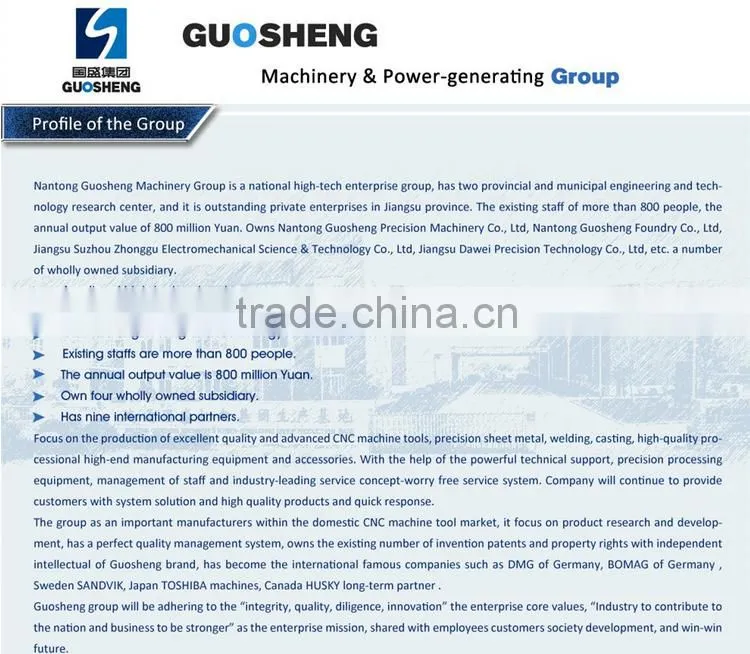

Jiangsu Dawei Precision Technology Co.,Ltd.is a company specialized in researching,developing and manufacturing of horizontal boring and milling machines and horizontal machining centers.The company is joint-ventured by Nantong Guosheng Machinery & Power-generating Group，the professional CNC machining center manufacturer，and advanced technical team from Taiwan.
