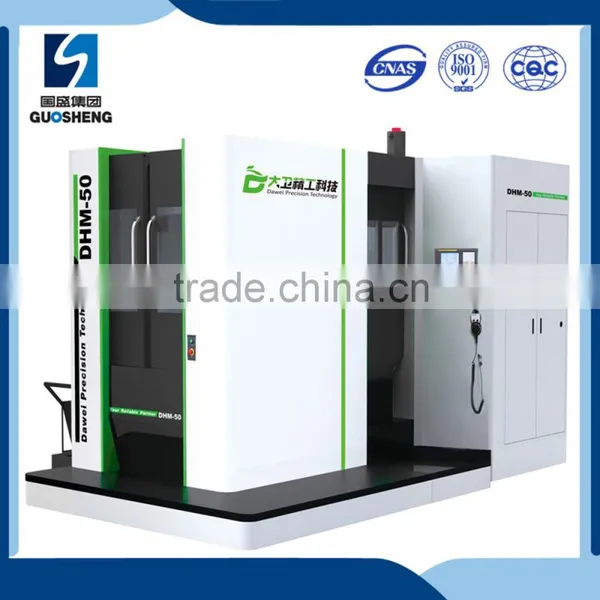

DHM50 Single Worktable Horizontal Machining Center

DHM50 Single Worktable Horizontal Machining Center thumbnail-1
DHM50 Single Worktable Horizontal Machining Center thumbnail-2
DHM50 Single Worktable Horizontal Machining Center thumbnail-3
DHM50 Single Worktable Horizontal Machining Center thumbnail-4
DHM50 Single Worktable Horizontal Machining Center thumbnail-5
DHM50 Single Worktable Horizontal Machining Center thumbnail-6

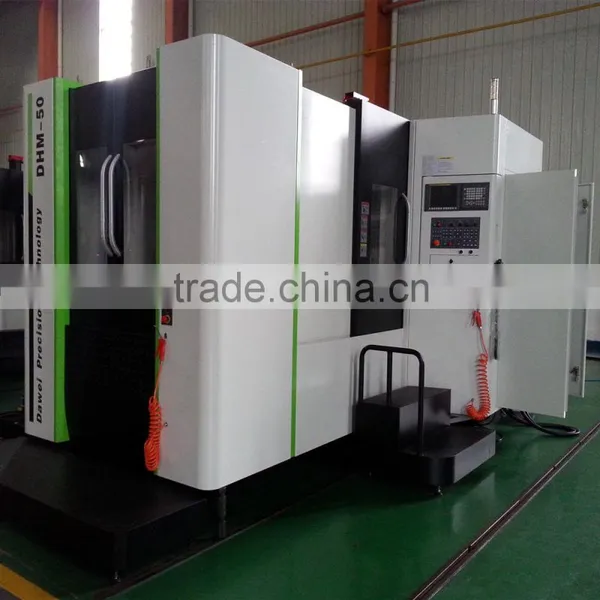

DHM50 Single Worktable Horizontal Machining Center photo-1

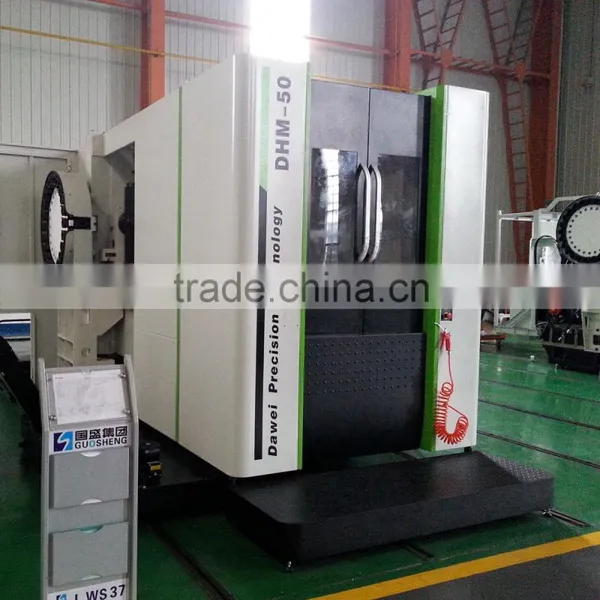

DHM50 Single Worktable Horizontal Machining Center photo-2

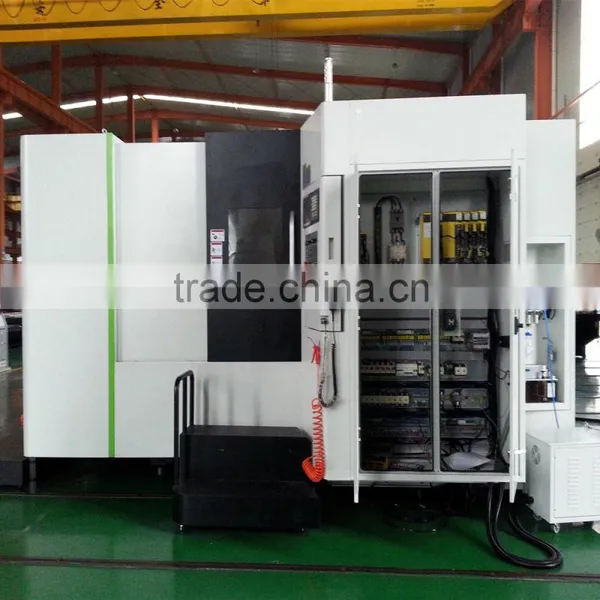

DHM50 Single Worktable Horizontal Machining Center photo-3
DHM50 Single Worktable Horizontal Machining Center photo-4

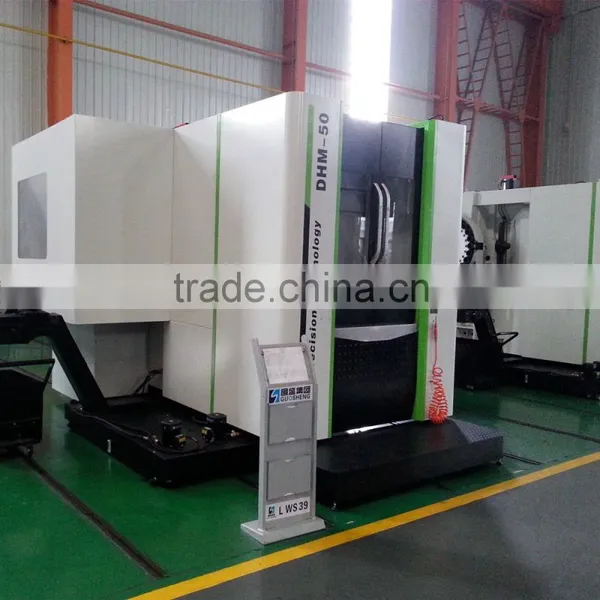

DHM50 Single Worktable Horizontal Machining Center photo-5
DHM50 Single Worktable Horizontal Machining Center photo-6
US$ 90,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Nantong Guosheng Machinery & Power-Generating Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
Place of Origin Jiangsu, China
Brand Name Guosheng & Dawei
Model Number DHM50
Voltage 380V/50Hz
Power(W) Spindle motor: 11/18.5 kw
Dimension(L*W*H) According to the models
Weight 13000/14000 kg
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

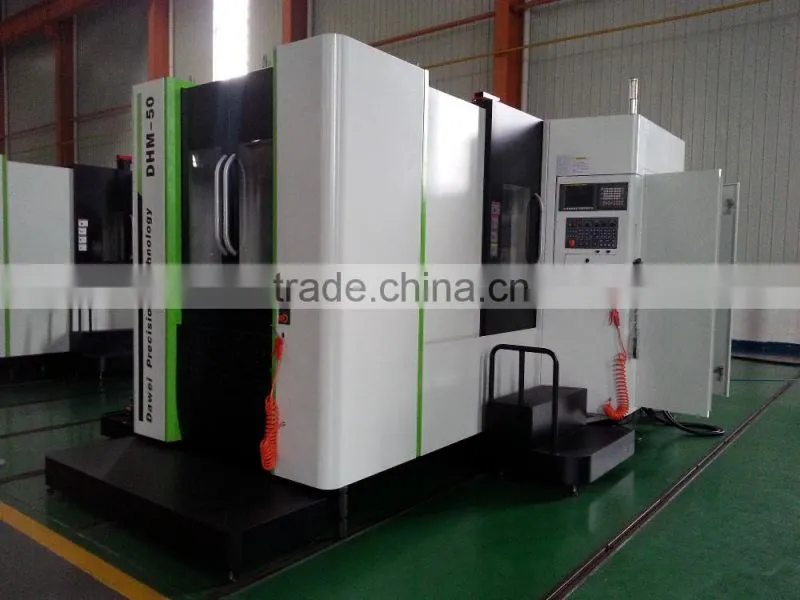

Detailed Images

DHM50 Single Worktable Horizontal Machining Center


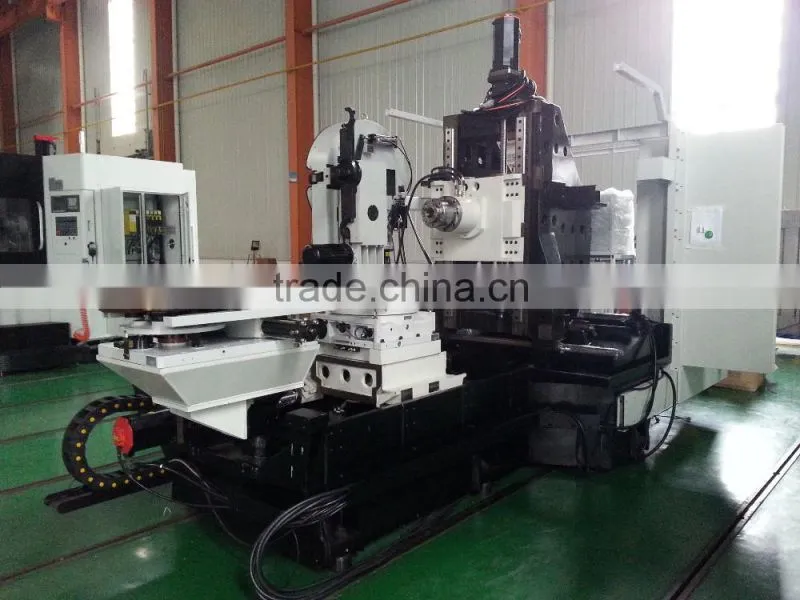

The structure  of the machine frame is been FEM analyzed by ANSYS system to guarantee high stability  under high speed and high precision machining.A deformation testing is simulated under loading simulation to ensure the rigidity and have excellent bending resistance.
Dawei DHM series is suitable for heavy cutting horizontal machining center in design of X axis guide rail with large span section difference，make the spindle and the back supporting rail distance closer，in order to increase the column rigidity，and fully meet customer demand of milling.


Product Description
Model
Unit
DHM50-A
DHM50-B
Travel
X-axis travel
mm
700
750
Y-axis travel
mm
650
750
Z-axis travel
mm
600
750
Spindle
Spindle center to worktable surface
mm
50-700
50-800
Spindle nose to work center
mm
200-800
135-885
Spindle taper
BT 50
BT 50
Rotating speed of spindle(standard)
rpm/min
6000 or 10000
6000 or 10000
Standard spindle
Direct  transmission
Direct transmission
Optional spindle 1
Belt-drive
Belt-drive
Optional spindle 2
Rotary worktable (B axis)
Pallet size (L×W)
mm
500×500
500×500
Min.division angle
deg
1°(standard)/0.001°(optional)
1°(standard)/0.001°(optional)
Reference aperture
mm
Φ55 H7
Φ55 H7
Max.load on worktable
kg
600
600
Division precision
sec
±5''
±5''
Repetitive precision
sec
±1''
±1"
Number of worktables
1
1
Transmission mode
Axial transmission mode
Direct transmission
Direct transmission
Feed speed
Cutting speed
mm/min
1-10000
1-10000
Rapid traverse speed X/Y/Z
m/min
24/24/24
24/24/24
Tool magazine and automatic toolchanger
Capacity of tool magazine
24(30/40/60)
24(30/40/60)
Tool selecting mode
mm
Random
Random
Max.tool weight
15kg
25
25
Max.tool length
mm
350
350
Max.tool diameter（no adjacent tools）
mm
Φ105/200
Φ105/200
Tool changing mode
mm
Arm type
Arm type
Tool handle size
BT50/CAT50/DIN50
BT50/CAT50/DIN50
Spindle & motor
Spindle drive motor
kW
FANUC 11/18.5
FANUC 11/18.5
Max.torque of spindle
N·m
263/442
263/442
Precision of machine tool
Locating precision of machine tool/full travel
mm
±0.01
±0.01
Repetitive locating precision of machine tool/full travel
mm
±0.005
±0.005
Others
Air pressure required
kgf/cmª
6
6
Voltage requirement
KVA
45
45
Tank capacity
L
570
700
Machine weight
kg
13000
14000
Floor area
mm
3645x4390
3275x6130
Machine height
mm
3025
3200
Design For Quality

Base X axis present multistep, the distance between spindle and back support rail is closer, to ensure the stability of the machining accuracy; Column span large, whole machine rigid structure is more stable.

DHM-50 column is thicker, thickness increases 20% than other manufacturers, and rigidity is more steady.

DHM-50 base Z axis anchor support distance is wider, increasing 40%, and have stronger rigidity.

Workbench bearing surface is bigger, and more rigid.

DHM-50 using R55 linear roller guide rail, the other manufacturer use R45 or 50, so the line rail is larger, rigid structure and machine precision are more stable.

DHM-50 screw are all hollow oil cooled screw, to avoid the screw produces a large amount of heat in the process of movement, deterioration in accuracy of screw.

Application
Detection & Packing
Our Company

Dawei Precision Technology


Jiangsu Dawei Precision Technology Co.,Ltd.is a company specialized in researching,developing and manufacturing of horizontal boring and milling machines and horizontal machining centers.The company is joint-ventured by Nantong Guosheng Machinery & Power-generating Group，the professional CNC machining center manufacturer，and advanced technical team from Taiwan.
